Operation
Removing material/digging in hard soil
☞ Digging in hard soil
• Lower the bucket horizontally to the ground 1. To do this:
push the control lever forwards C
• Adjust the digging angle flatter 2 than for digging in soft soil. To do this:
push the control lever to the left A
• Drive the machine forwards 3 and
• Press the bucket downward a little. To do this:
push the control lever forwards C a little
☞ Once the bucket has penetrated the soil:
• Set the digging angle a little flatter 1. To do this: push the control lever to the left A, so
that the layer being removed is as even as possible and so that the wheel spin is
reduced
• Push control lever to the left A, or move it alternately to the left and right A and B to
loosen the material
• Proceed as for loading material hard to penetrate
Loading heaped material (non-compacted material)
☞ Loading heaped material (non-compacted material)
• Set the blade parallel to the ground. To do this:
push the control lever to the left or right A and B
• Lower the loader unit horizontally to the ground. To do this:
push the control lever forwards C
• Drive forwards
• After penetrating the heaped material:
• Smoothly raise the loader unit and
• Keep the bucket level
☞ When the loader unit cannot be raised further:
• Tilt in the bucket 1
• Raise the loader unit 2
• Reverse out of the material 3
• Lower the loader unit to transport position

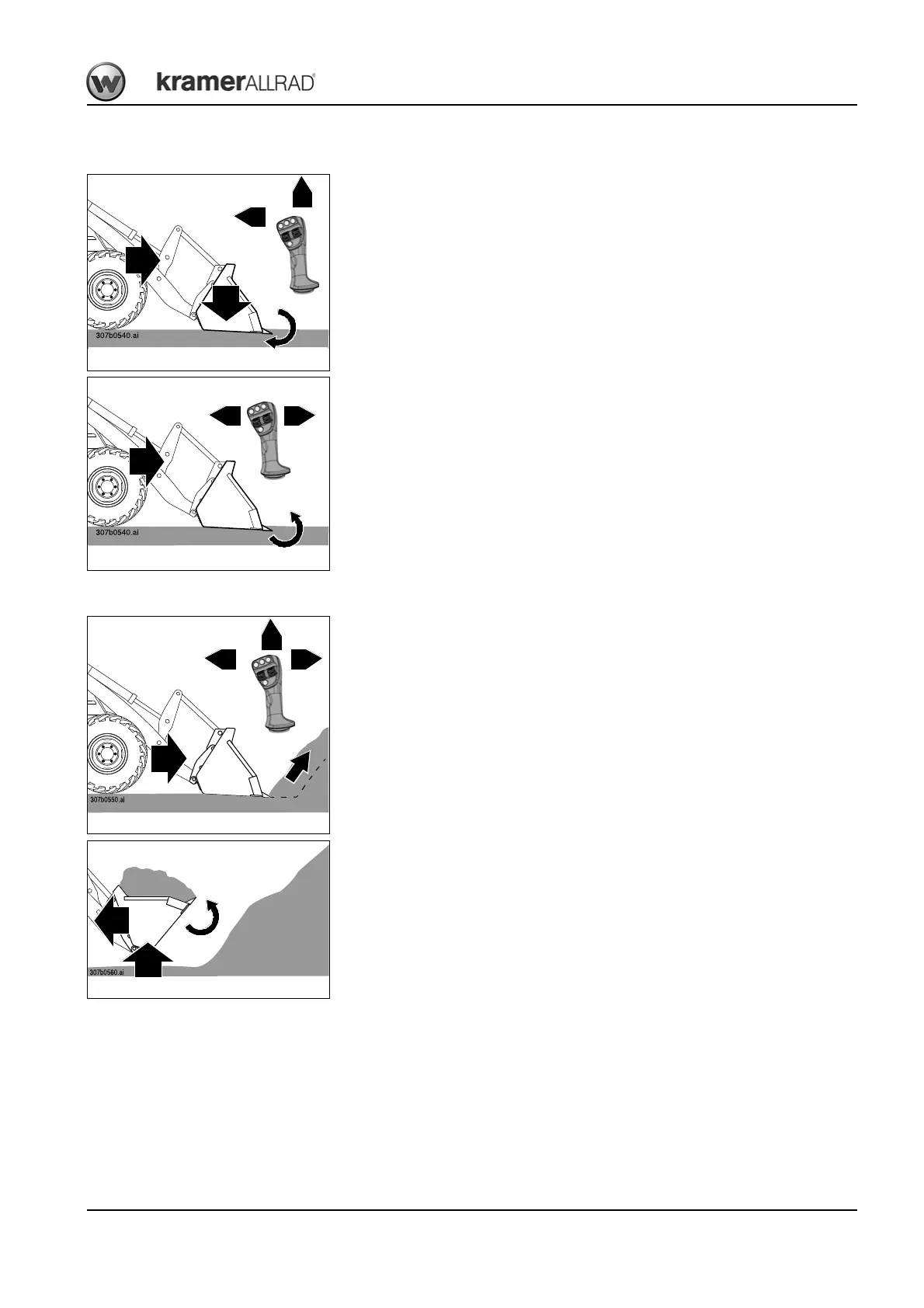

Fig. 117: Removing hard soil
2
1
C
3
A
Fig. 118: Adjusting the digging angle flatter
1
A B
Fig. 119: Penetrating heaped material
C
A B
Fig. 120: Reversing away from heaped material
1
3
2
