3-66 BA 35101/02/03 EN – Edition 1.0 * 35101_02_03b340.fm
Operation
3.51 Equipping the machine with a standard bucket
Fitting a standard bucket onto the quickhitch
Before starting work, make sure the attachment is safely locked onto the quick-
hitch by means of the lock ram!
☞ You must be able to see the lock pins on either side (left/right) in the mount-
ing bores on the attachment
☞ Remove the bucket as follows:
• Approach the machine to the attachment
• Lower loader unit E. To do this: push the control lever forwards C
• Tilt the quickhitch forwards. To do this: push the control lever to the right B
• Drive the machine forwards until mounts G of the quickhitch are directly beneath the
mounts of the attachment
• Raise loader unit E until pin shanks G engage in catch hooks F of the attachment. To
do this: pull the control lever backwards D
• Fully tilt in the quickhitch. To do this: push the control lever to the left A
• Secure the attachment with catch bolts H of the quickhitch. To do this: push and hold
switch 101 on the control lever to the right B until catch bolts H engage in the
mounting bores of the attachment
• Make sure the attachment is visibly locked on either side with lock pins H
• Lock the 3rd control circuit –seeOperating and securing the 3rd control circuit on
page 3-63

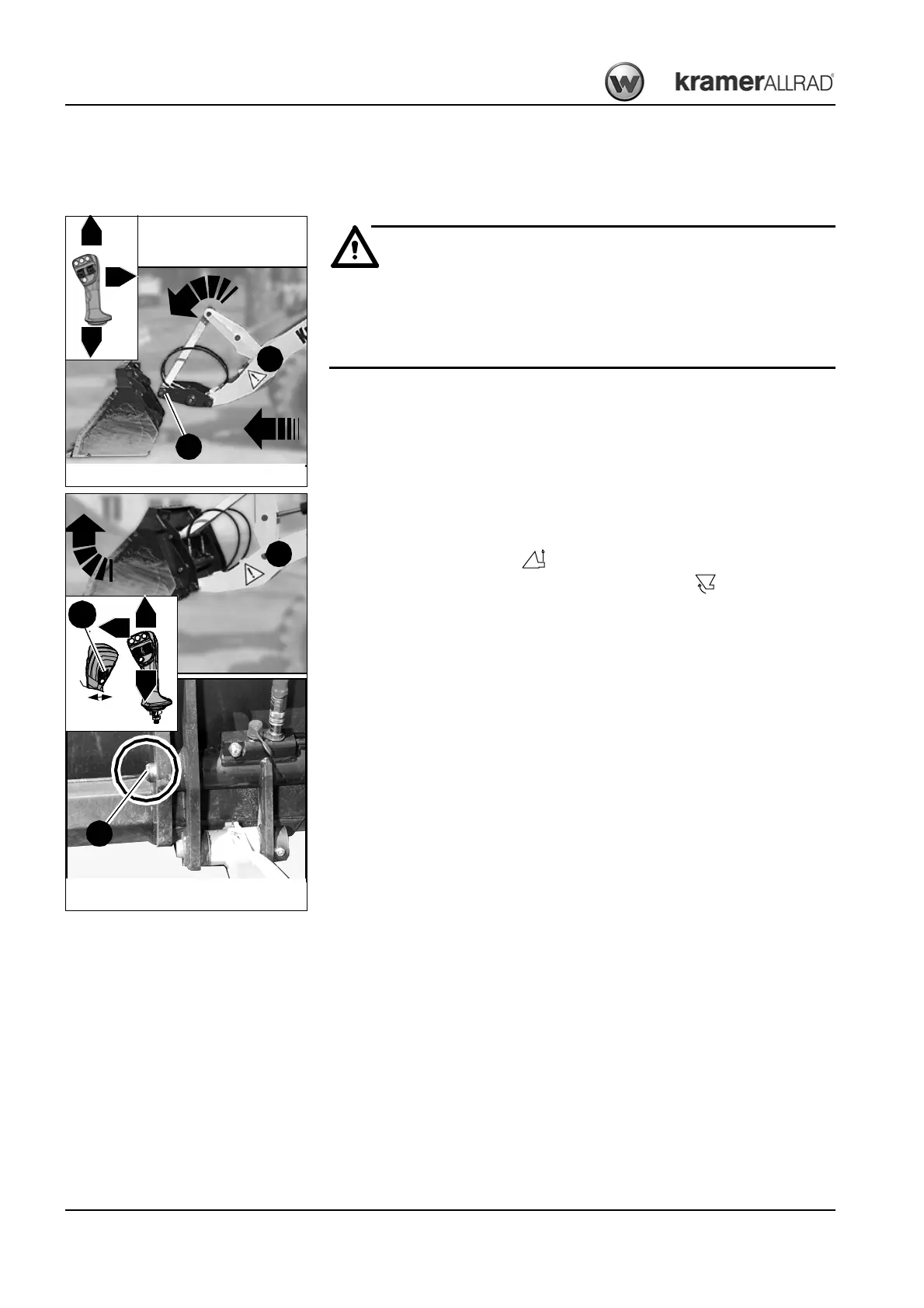

Fig. 105: Driving up to the attachment
G
E
C
D
B
Fig. 106: Raising the attachment
E
H
A
B
C
D
A
101
