BA 35101/02/ 03 EN – Edition 1.0 * 35101_02_03b340.fm 3-75
Operation

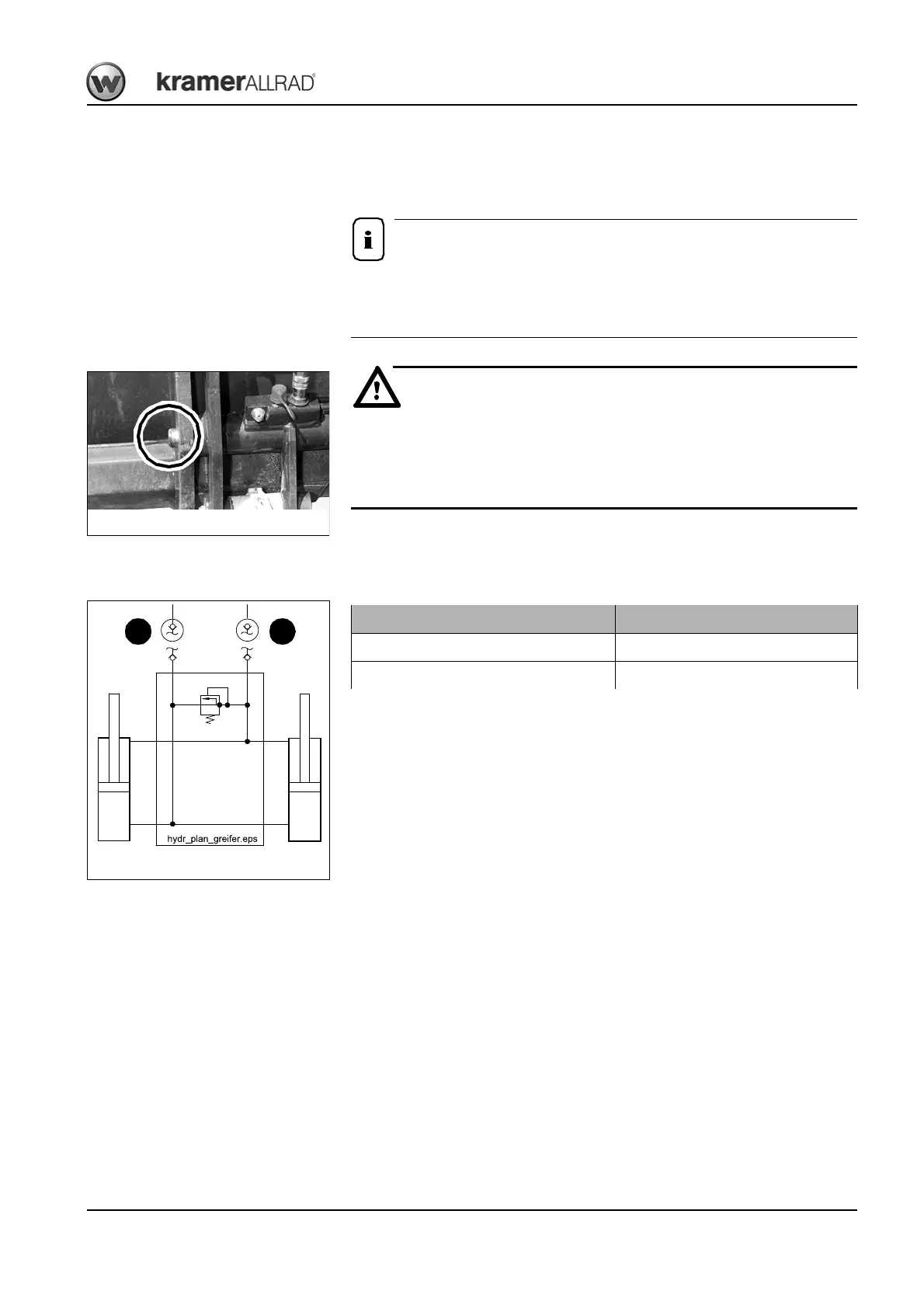

3.54 Fitting a multipurpose bucket
Picking up a multipurpose bucket with the quickhitch
The multipurpose bucket is picked up and mounted on the quickhitch in the
same way as the standard bucket
• –seeFitting a standard bucket onto the quickhitch on page 3-66
Before starting work, make sure the attachment is safely locked onto the quick-
hitch by means of the lock ram!
☞ You must be able to see the lock pins on either side of the mounting holes
on the attachment!
Hydraulic connections on the multipurpose bucket (overview)
Fig. 124: Checking the lock pins
Fig. 125: Hydraulic connections on the multipurpose bucket
D C
Hydraulic connection Function
C Pressurised Opens the multipurpose bucket
D Pressurised Closes the multipurpose bucket
