Operation
Transport position of pallet forks
Only pallet forks with foldable fork arms are authorised for travel on public
roads!
Remove pallet forks that are not authorised for transport on public roads and
use a suitable means of transport to move or transport them.
• – see chapter 1 “Attachments with authorised material densities” on
page 1-5
Pallet forks operation –seeFitting pallet forks on page 3-85
☞ Set the pallet forks to transport position as follows:
• Remove the load off the pallet forks
• Fold back and secure the fork arms
• Raise the loader unit so that both red marks D on the lift frame and the bulkhead are
aligned
➥Ground clearance C about 250 mm
• Cover the fork arms across their entire width with the protection A provided
• Secure the control lever (joystick)
• –seeLocking the control lever (joystick) and the 3rd control circuit (attachments) on
page 3-29
C

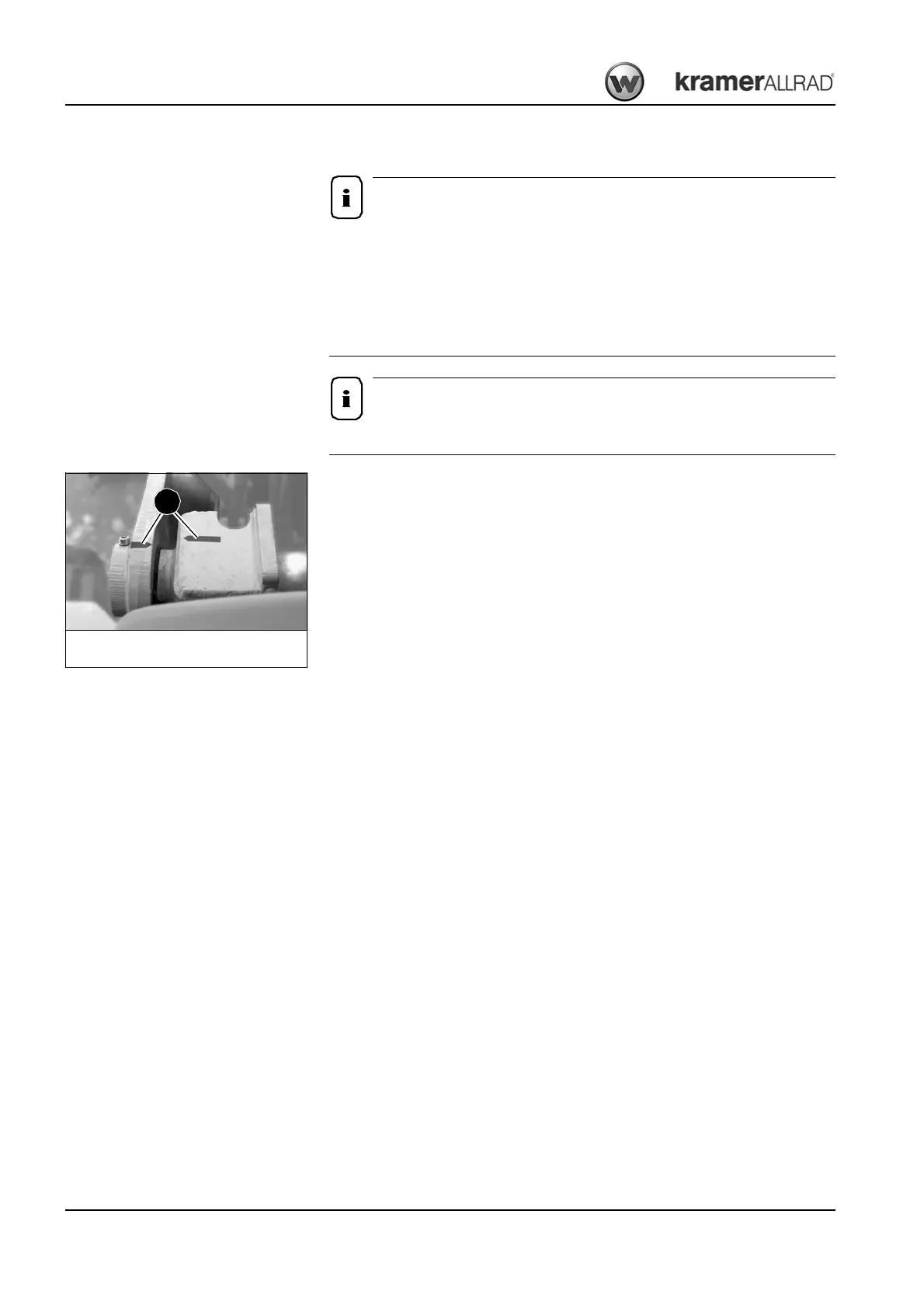

Fig. 52: Transport position of pallet forks
