Operation
3.46 Loader unit control lever (overview)
Control lever (joystick) for lift and tilt rams and 3rd control circuit
Before leaving the seat, and when driving on public roads, lock the control
lever (loader unit) and the 3rd control circuit against unintentional actuation!
☞ Locking the control lever (joystick) and the 3rd control circuit (attachments)
on page 3-29
☞ –seeOperating and securing the 3rd control circuit on page 3-63
As an option the control valve can be fitted with a float position. This is benefi-
cial when working with a rotary broom or snowploughs and for grading in
reverse.

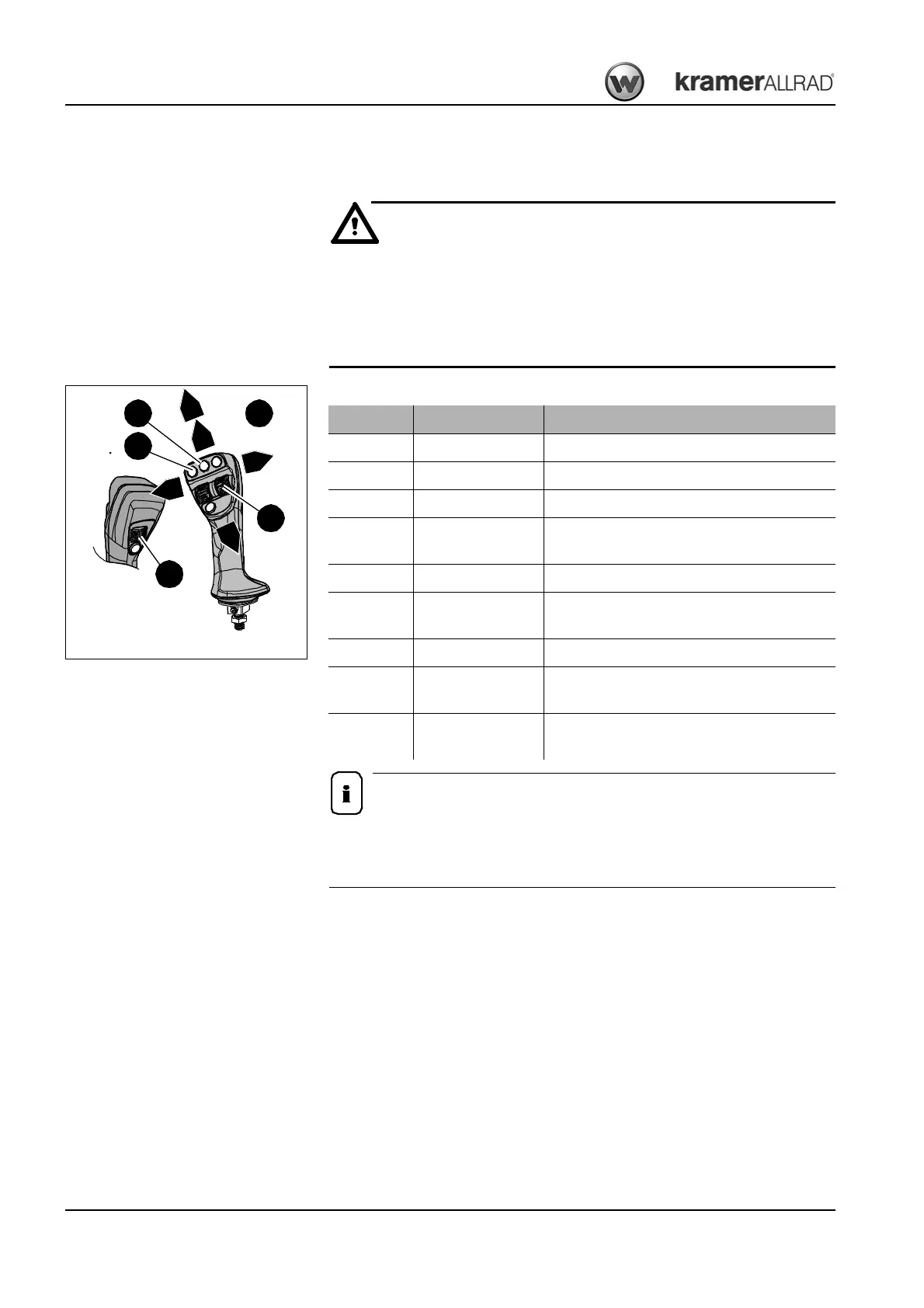

Fig. 100: Control lever for loader unit
B
A
101
107
104
105
C
E
D
107
Position Operation Function
A To the left Tilts in the attachment
B To the right Dumps out the attachment
C Forwards Lowers the loader unit
D
Fully forwards
(2nd position)
Lowers the loader unit to float position (option)
E Backwards Raises the loader unit
101 Switch
Quickhitch – unlocking/locking/attachments – 3rd
control circuit
104/105 Tip switch Additional control circuit (option)
106 Tip switch
Front socket (option) or bucket repositioning
(option)
107 Switch (scroll wheel)
Additional control circuit (proportional controls
option)
