Operation
3.47 Operating and securing the 3rd control circuit
Locking and unlocking an attachment from the quickhitch
Danger!
When working with attachments without hydraulic functions, unintentionally
actuating the switch on the control lever (3rd control circuit) can unlock the
attachment from the quickhitch!
☞ Secure the switch (3rd control circuit) with switch 94!
Operation of hydraulic attachments
The function of switch 101 on the joystick is described as seen in driving direction!
101
A
B
B
A
C

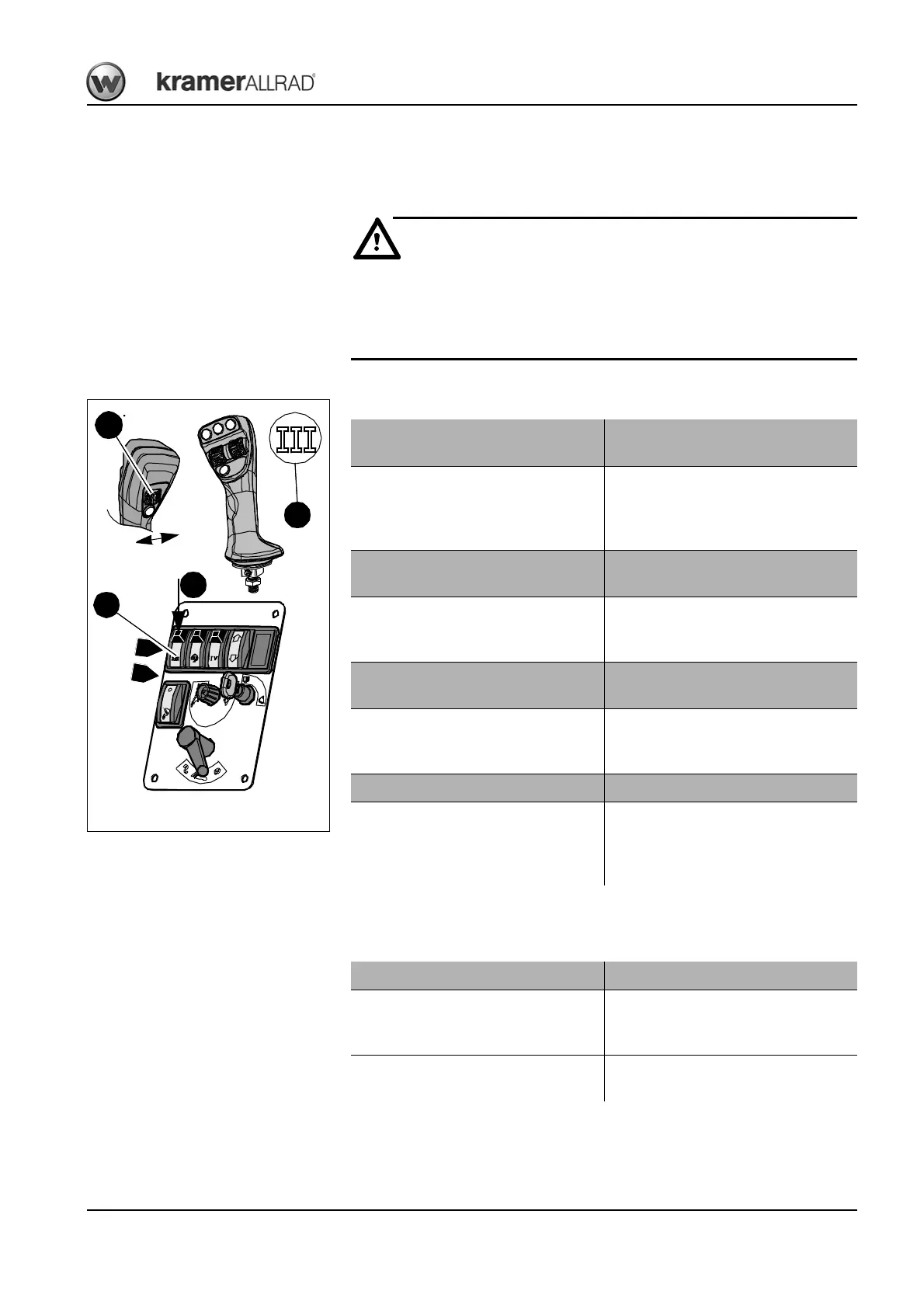

Fig. 101: Operation of 3rd control circuit
83
94
Unlocking the switch
(3rd control circuit)
Result
Slide lock C on switch 94 downwards and
at the same time press the switch to posi-
tion B
Telltale 83 on the indicating instrument
comes on
The 3rd control circuit is unlocked and
switch 101 on the joystick is functional
Unlocking the attachment from the
quickhitch
Result
Press switch 101 on the control lever to the
left to position A (towards the centre of the
machine)
The attachment is unlocked
Locking the attachment in the quick-
hitch
Result
Press switch 101 on the control lever to the
right to position B (towards the door on the
right)
The attachment is locked
Locking the switch (3rd control circuit) Result
Slide lock C on switch 94 downwards and
at the same time press the switch
to position A
Telltale 83 on the indicating instrument
goes out
The 3rd control circuit is locked and
switch 101 on the joystick is not functional
Attachment operation Result
Press switch 101 on the control lever
to the left A
Pressurises the right-hand side blue
hydraulic line and opens e.g. a multipur-
pose bucket
Press switch 101 on the control lever to the
right B
Pressurises the left-hand side red hydraulic
line and closes e.g. a multipurpose bucket
