BA 35101/02/ 03 EN – Edition 1.0 * 35101_02_03b610.fm 6-17
Specifications

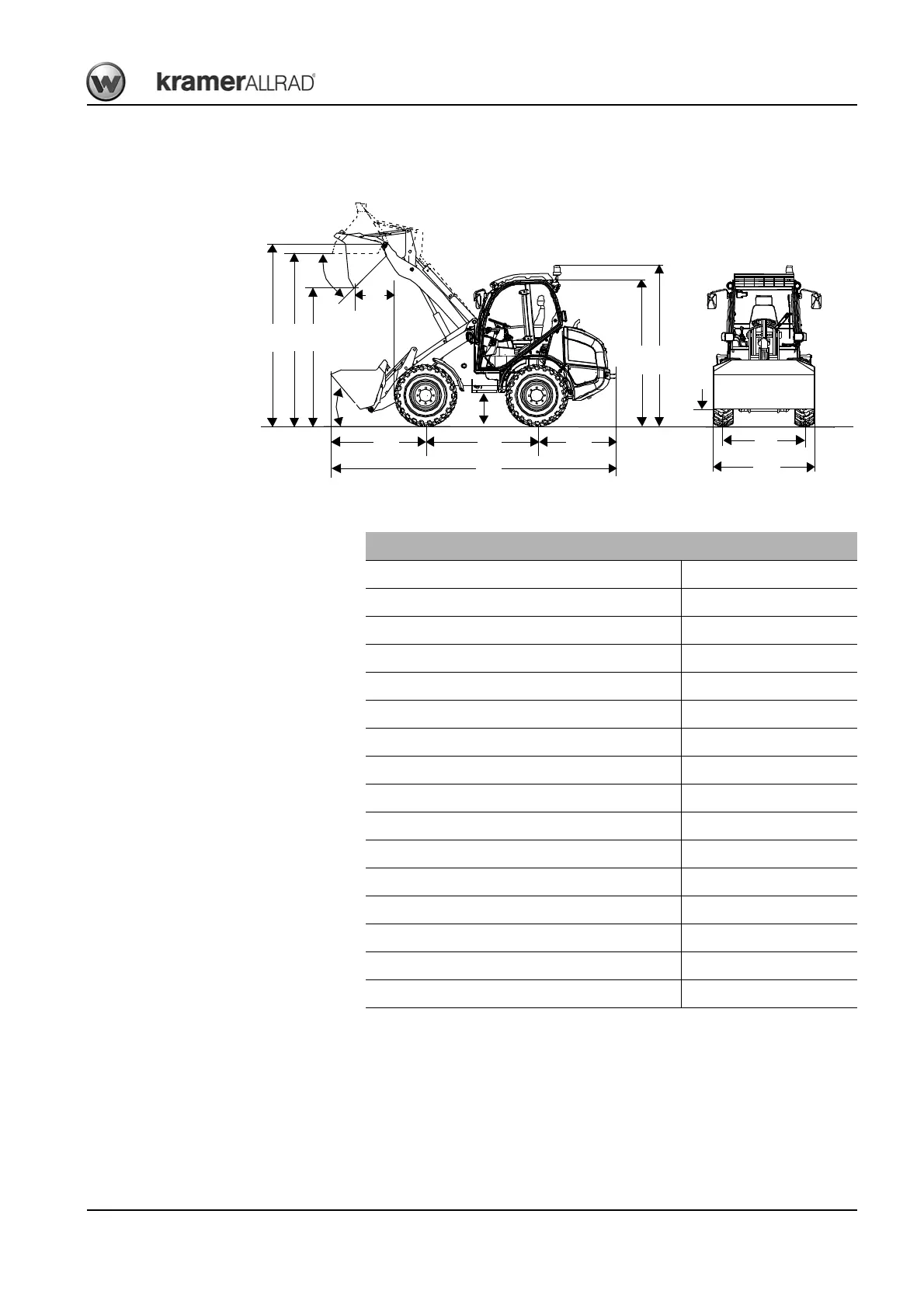

6.17 Wheel loader dimensions with bucket (model 351-01)
Fig. 199: Machine dimensions model 351-01
3065
650
2915
2400
1570 2020
250
1750
1400
1490
2680
5080
2450
300
45°
50°
Dimensions
Overall length
1
5080 mm
Overall height
2, 3
2450 mm
Overall height with rotating beacon
2, 4
2680 mm
Overall width without bucket
2, 5
1720 mm
Overall width with bucket
1
1750 mm
Ground clearance in transport position of loader unit 250 mm
Ground clearance
2
under gearbox 300 mm
Pin height 3065 mm
Load-over height 2915 mm
Dump height 2400 mm
Dump reach 650 mm
Dump-in angle 50°
Dump-out angle 45°
Front/rear track (distance over hubs) 1400 mm
Wheelbase (front/rear axles) 2020 mm
Turning radius
2, 6
2900 mm
1. With standard bucket order no. 1000160648
2. With tyres 12.5-18
3. 2560 mm with protective FOPS screen (option)
4. 2800 mm with protective FOPS screen (option)
5. With outside mirrors folded in
6. Measured at outer edge of wheel
