BA 35101/02/ 03 EN – Edition 1.0 * 35101_02_03b610.fm 6-9
Specifications
Main fuse box with relays
The main fuse box is located in the engine compartment, on the left in driving direction
F22 3 Instrument panel lights
F23 15 Proportional electronics
F24 5 Cutoff solenoid (diesel engine)
F25 25 Heating, air conditioning (option)
F26 10 Drive electronics – hydraulic pump
F27 10 Additional function solenoid valve
F28 7.5 Radio, float position, drive interlock (option)
F29 15
Central lubrication system, air-suspension seat,
bucket repositioning (option)
F30 20 Socket (cigarette lighter), auxiliary heating
F31 3
High current relay, switching relay preheating and
starting, telltale for preheating
No.
Rated
current
(A)
Symbol Protected circuit

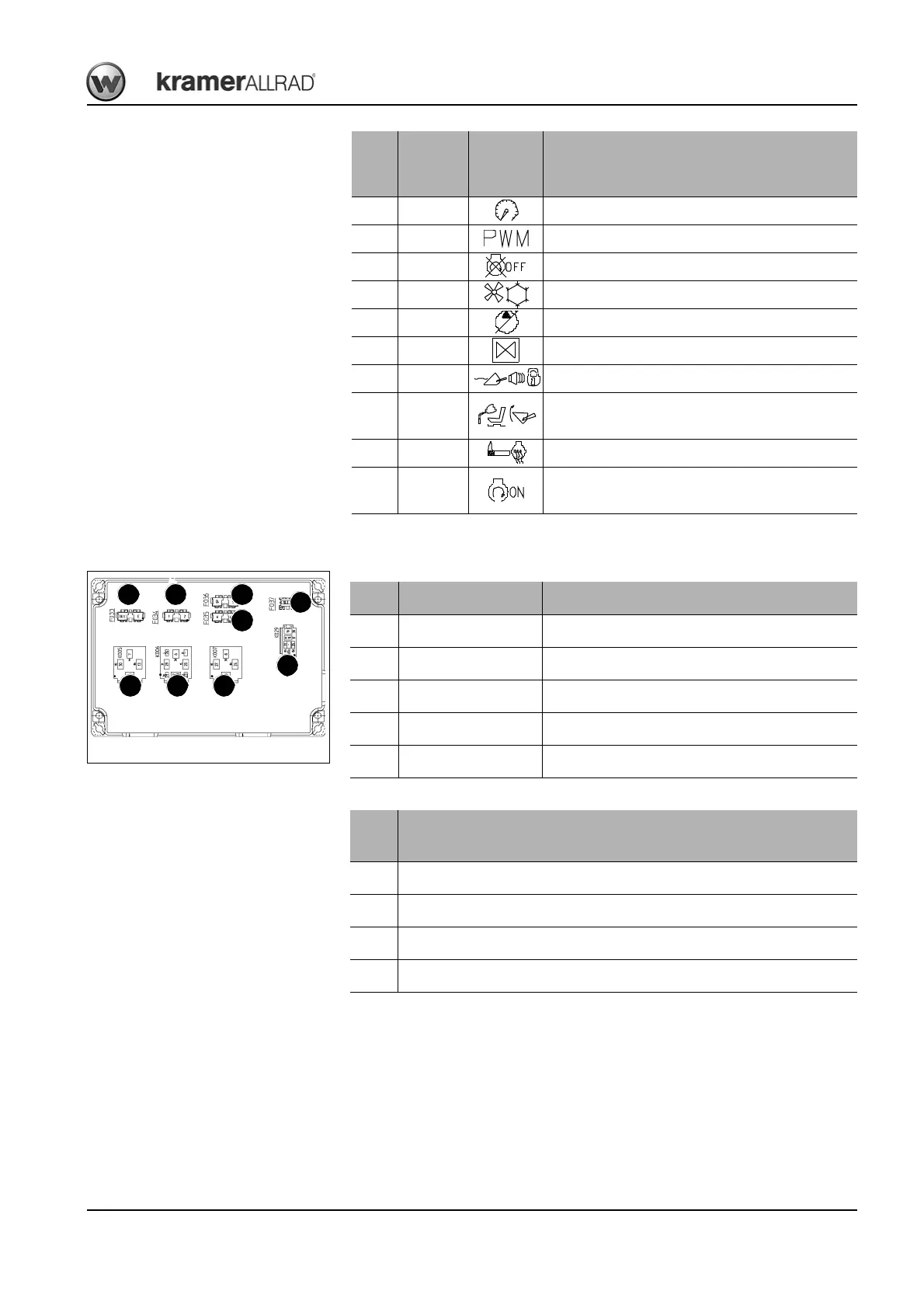

Fig. 196: Main fuse box in engine compartment
F34
F35
F37
F33 F36
K05 K06 K07
K29
No. Rated current (A) Protected circuit
F33 50 Glow plug fuse
F34 50 Glow plug fuse
F35 60 Board fuse (right)
F36 60 Board fuse (left)
F37 10 Multiple quantity valve (engine)
Relay
no.
Protected circuit
K 05 High current relay preheating
K 06 Preheating time control unit
K 07 Start high current relay
K 29 Multiple quantity valve mini switching relay (engine)
