Maintenance
Replacing the air filter cartridge
☞ Change the filter cartridge as follows:
• Stop the engine
• Prevent the machine from rolling away and remove the ignition key
– see chapter 3 “Stopping/parking the machine” on page 3-58
• Open the engine cover
• Fold both bow hooks G to the outside, off the notch of the upper housing section H
• Remove the lower housing section K
• Carefully remove filter cartridge D with slightly turning movements
• In addition, every 3rd time the filter is replaced, carefully remove the safety cartridge
F with slightly turning movements
Before inserting the new filter, make sure all dirt (dust) inside the upper and
lower housing sections has been removed!
• Carefully insert new safety cartridge F into the upper housing section H
• Carefully insert new filter cartridge D into the upper housing section H
• Clean the dust valve fig. 165/E
• Position lower housing section K (make sure it is properly seated)
• Fold and close both bow hooks G on the notch of the upper housing section H

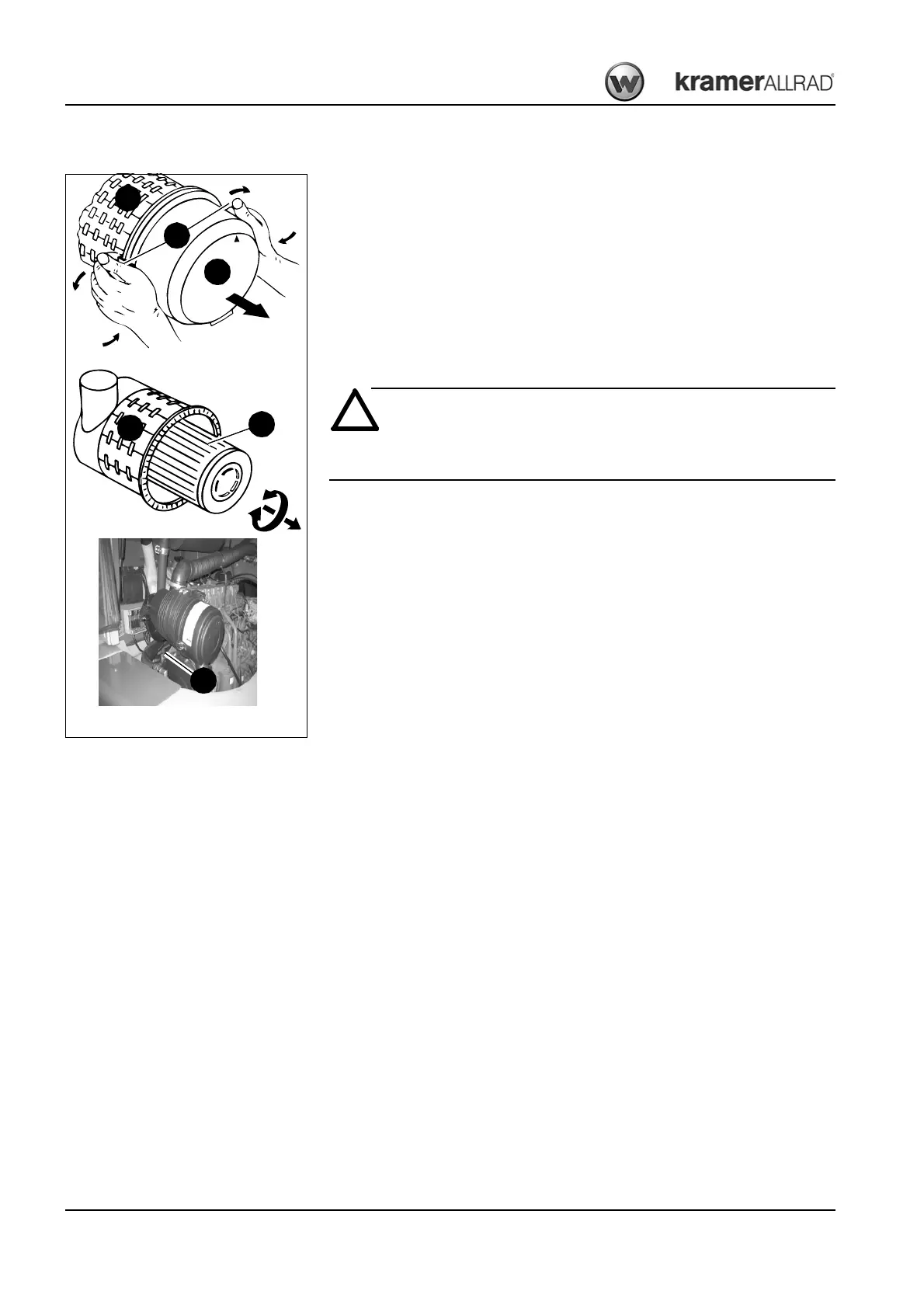

Fig. 166: Removing the lower housing section
Fig. 167: Removing the filter element
G
H
D
H
K
F
