6.18 Wheel loader dimensions with bucket (model 351-02)

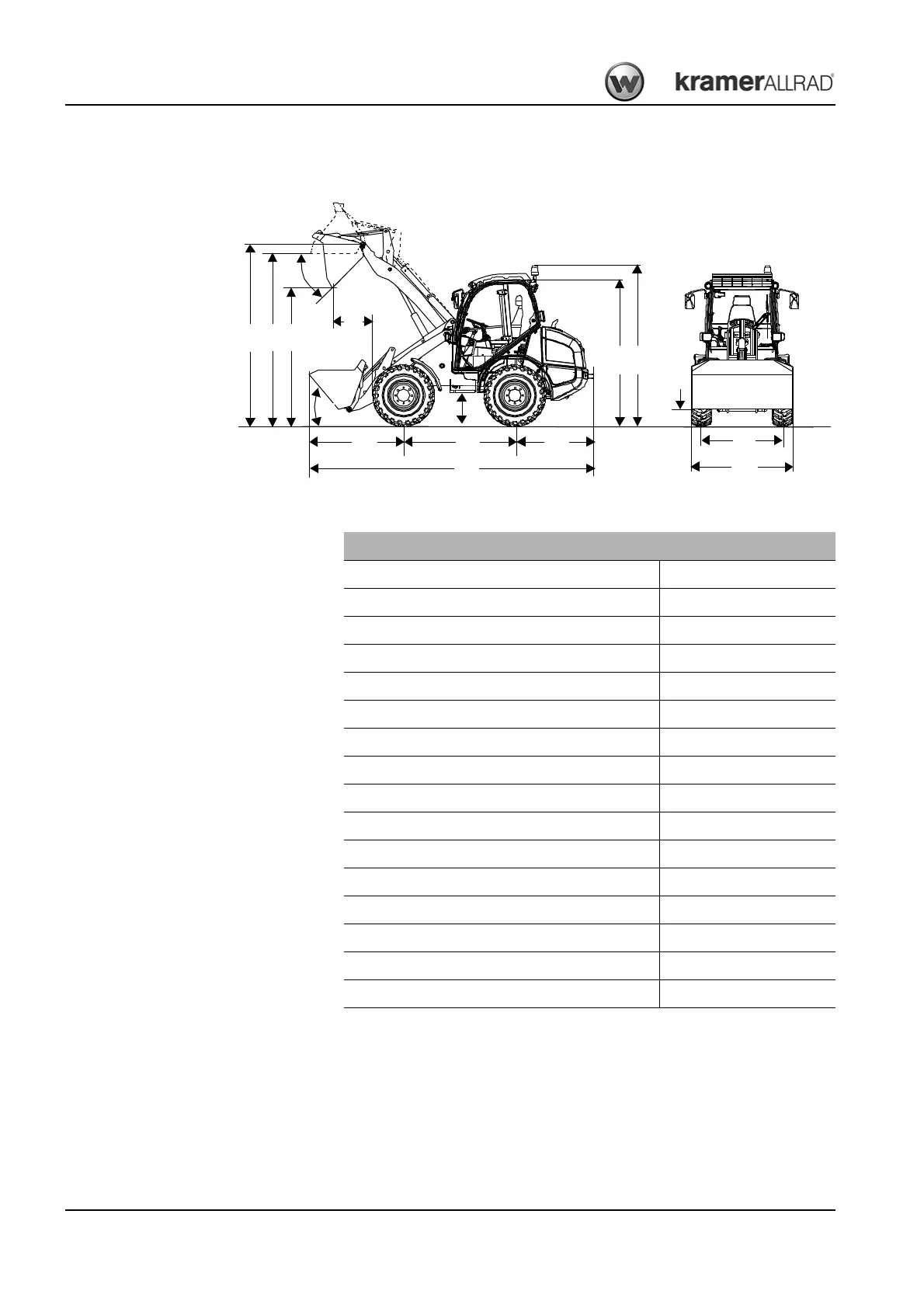

Fig. 200: Machine dimensions model 351-02
3250
660
3100 2500
1710 2020
250
1950
1400
1490
2710
5280
2480
330
45°
50°
Dimensions
Overall length
1
5280 mm
Overall height
2, 3
2480 mm
Overall height with rotating beacon
2, 4
2710 mm
Overall width without bucket
2, 5
1780 mm
Overall width with bucket
1
1850 mm
Ground clearance in transport position of loader unit 250 mm
Ground clearance
2
under gearbox 330 mm
Pin height 3250 mm
Load-over height 3100 mm
Dump height 2500 mm
Dump reach 660 mm
Dump-in angle 50°
Dump-out angle 45°
Front/rear track (distance over hubs) 1400 mm
Wheelbase (front/rear axles) 2020 mm
Turning radius
2, 6
2900 mm
1. With standard bucket order no. 1000137538
2. With tyres 12.5-20
3. 2590 mm with protective FOPS screen (option)
4. 2830 mm with protective FOPS screen (option)
5. With outside mirrors folded in
6. Measured at outer edge of wheel
