Operation
3.34 Cab heating and ventilation
Heating and ventilation system operation
The air is guided to the front window by the air vents on the left and right, to two leg room
vents and to the rear window by two air vents.
➥ –seeCab overview on page 3-2
Each nozzle can be closed and directed separately.
The machine heater can be set to 2 operating modes:
• Ventilation in fresh-air mode and heating
The rotary switches (heating/ventilation) are located on the switch console on the right
(near the door)
☞ Ventilation, fresh air
• Turn fan switch 87 to positions 1 – 3
• Temperature switch 88 in position C (cold)
☞ Heating
• Turn fan switch 87 to positions 1 – 3
• Set the required temperature with temperature switch 88
➥C = cold (blue)
➥W = warm (red)

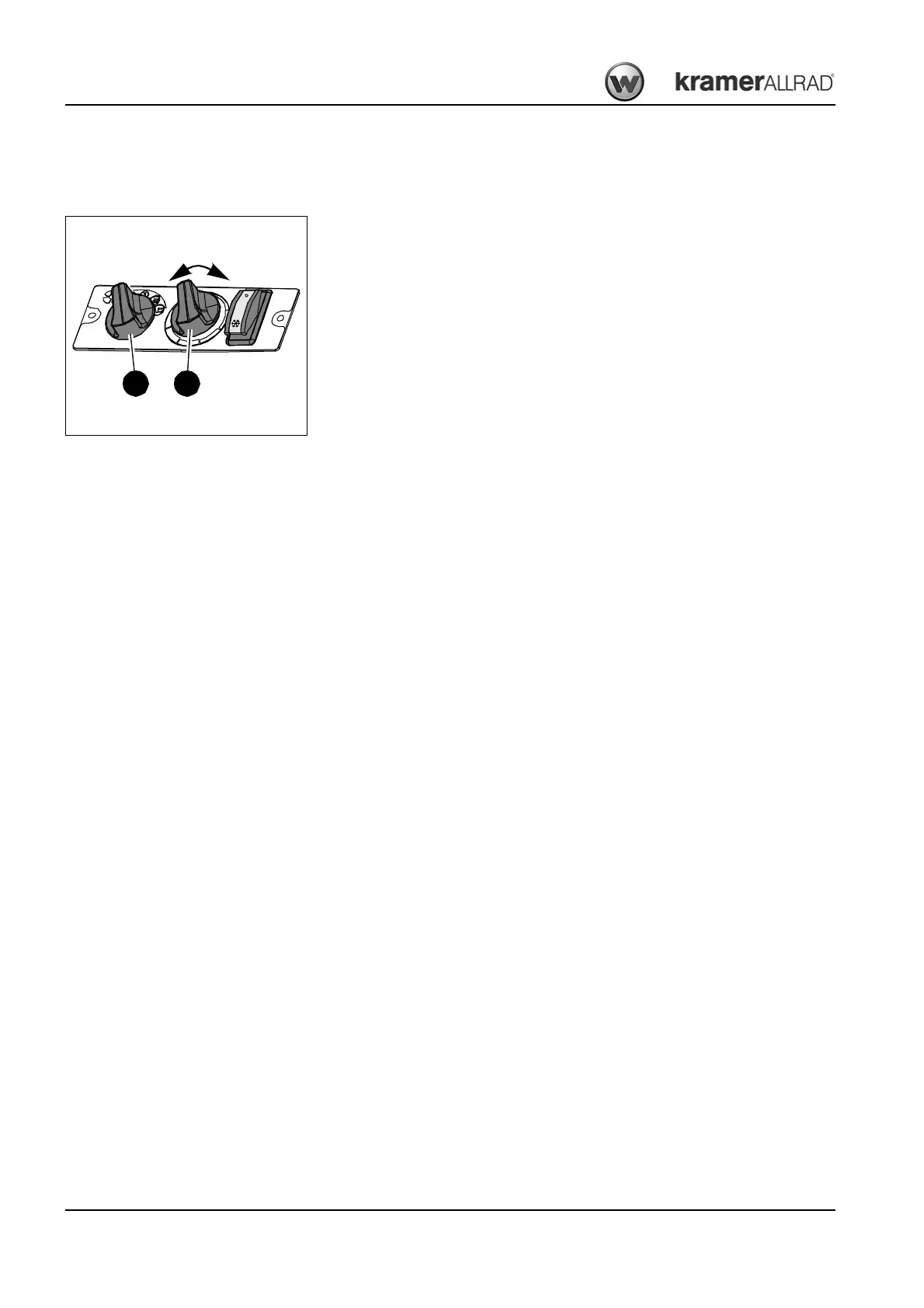

Fig. 73: Heating adjustment
II
CW
III
I
0
8887
