3-32 BA 35101/02/03 EN – Edition 1.0 * 35101_02_03b330.fm
Operation
3.20 Changing steering mode
General safety information on changing steering mode
In order to avoid danger of accidents, do not change steering mode when
driving the machine on public roads!
Furthermore, do not change steering mode when driving at high speed!
☞ Change steering mode before driving on roads and only a walking speed
Changing over to front axle steering (option)
☞ Proceed as follows:
• Slide lock S in switch 62 in the direction of the arrow and press the switch to position
A at the same time
• Release lock S
• Turn the steering wheel to the left and/or right until the wheels of the front and rear
axles have passed through the straight-ahead position from both directions
➥Telltale 50 comes on and front axle steering is enabled
➥Telltales 52 and 49 go out
Changing over to 4 wheel steering
If the machine is equipped with the “High speed” option, changing over to 4
wheel steering automatically reduces speed to 20 kph!
☞ Proceed as follows:
• Slide lock S in switch 62 in the direction of the arrow and press the switch to position
B at the same time
• Release lock S
• Turn the steering wheel to the left and/or right until the wheels of the front axle have
passed through the straight-ahead position from both directions
➥Telltale 52 comes on and 4 wheel steering is enabled
➥Telltales 50 and 49 go out

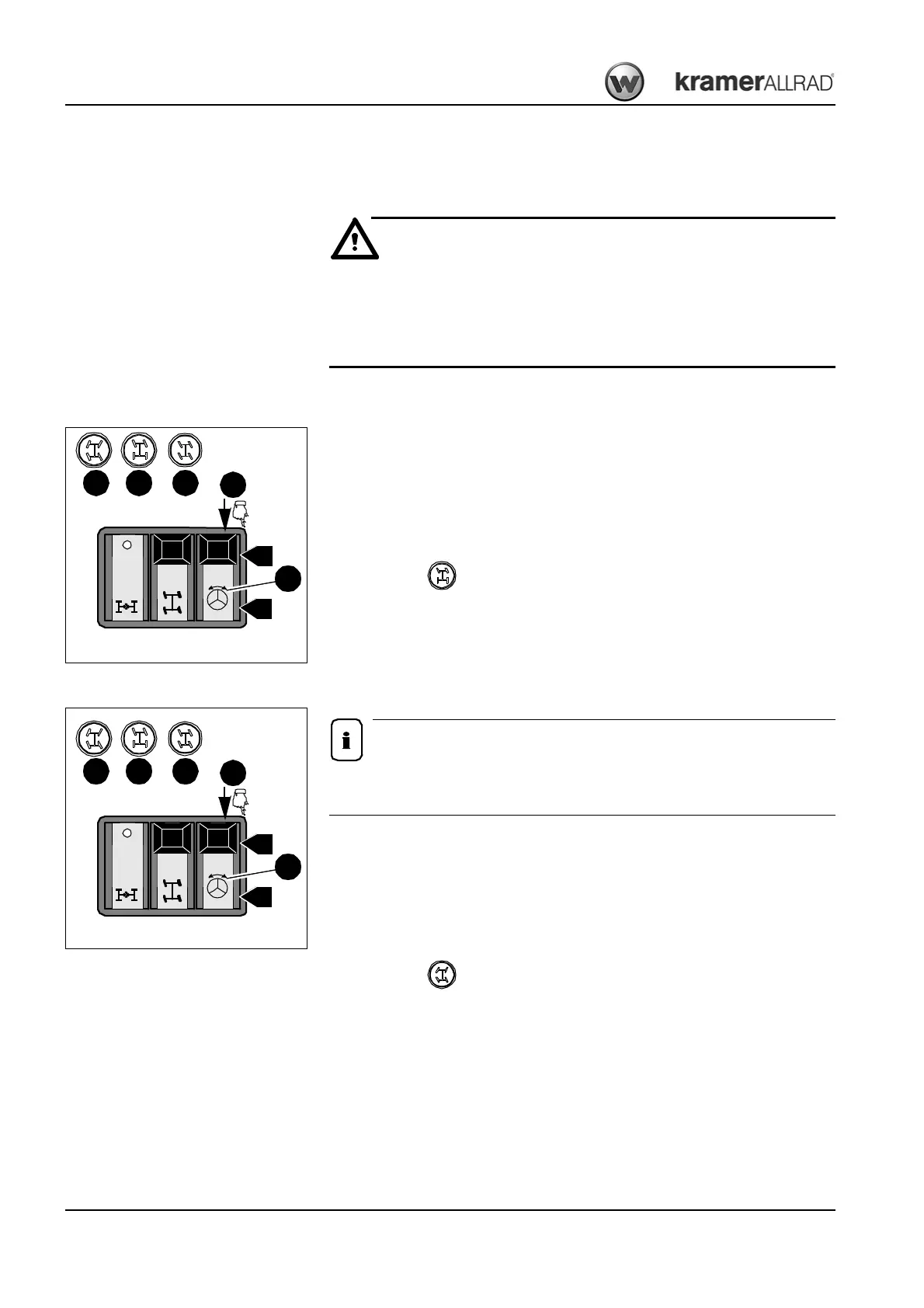

Fig. 56: Selecting front axle steering
5052 49
S
B
A
62
Fig. 57: Selecting 4 wheel steering
5052 49
S
B
A
62
