Operation
Loading heaped material (compacted material)
☞ Loading heaped material (compacted material)
• Proceed as for non-compacted material, however when raising the loader unit
through the heaped material, dump the bucket slightly in and out (1). To do this: move
the control lever alternately to the left and right (A and B)
• Material is loosened
Grading
☞ After having finished removing/loading the material:
• Lower the loader unit horizontally to the ground (1)
• Reverse across the surface to be graded (2)
Practical hints for loading vehicles
☞ Practical hints for loading vehicles
• If possible, the truck and the working direction of the loader should form
an angle of 45°
• Only raise the full bucket to the dump height when you are driving in a straight line
towards the truck
• If possible dump with the wind behind you to keep the dust away from your eyes, air
filters and fans!
Freeing the machine
☞ Freeing the machine
• Dump out the bucket until the blade is vertical above the ground
• Lower the loader unit all the way
• Gradually tilt in the bucket
• The machine is pushed backwards
• Reverse slowly
• Repeat this procedure until the wheels reach firm ground
• Reverse the machine away

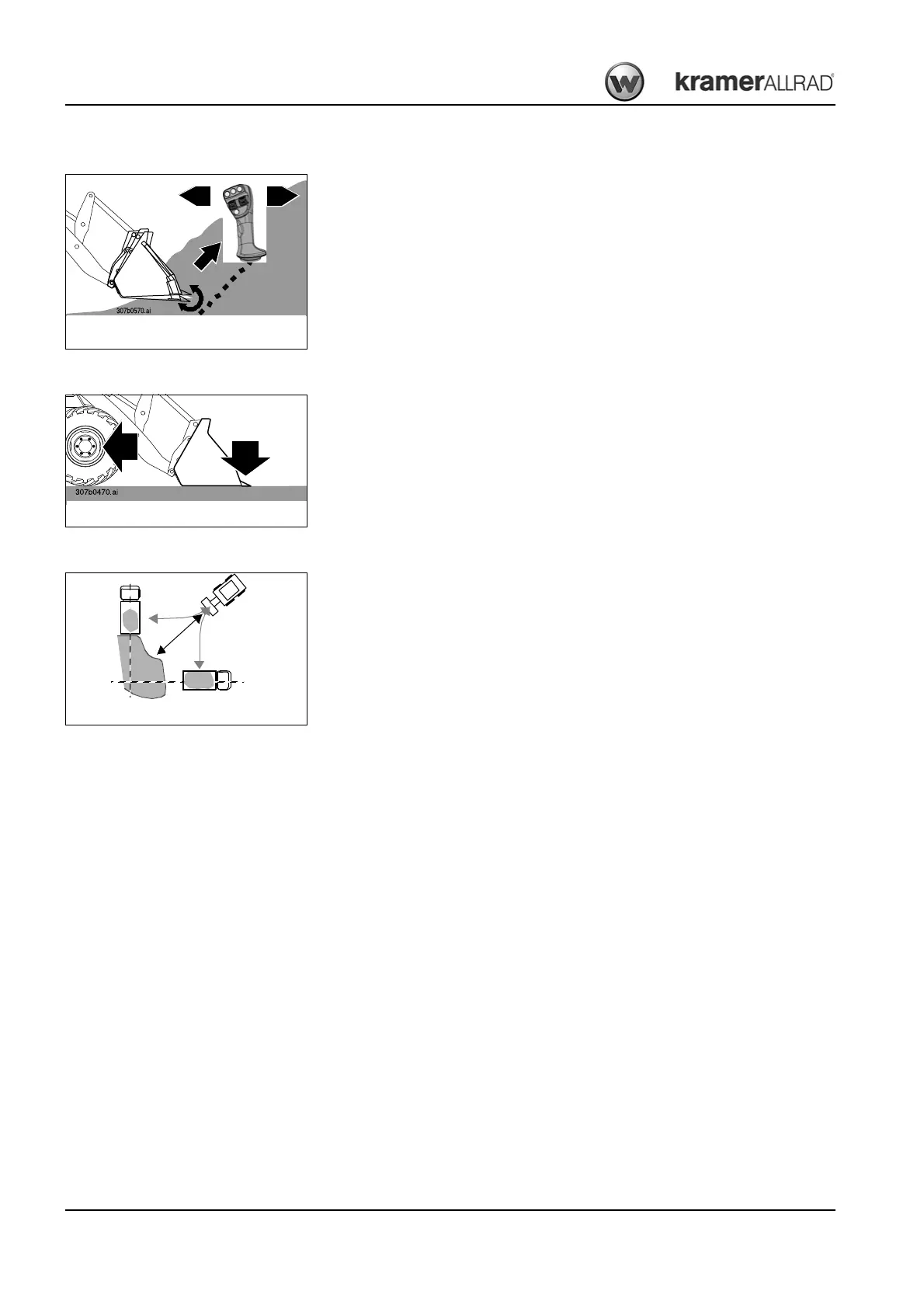

Fig. 121: Heaped compacted material
1
A B
Fig. 123: Loading vehicles
