1-12 BA 35101/02/03 EN – Edition 1.0 * 35101_02_03b110.fm
Introduction

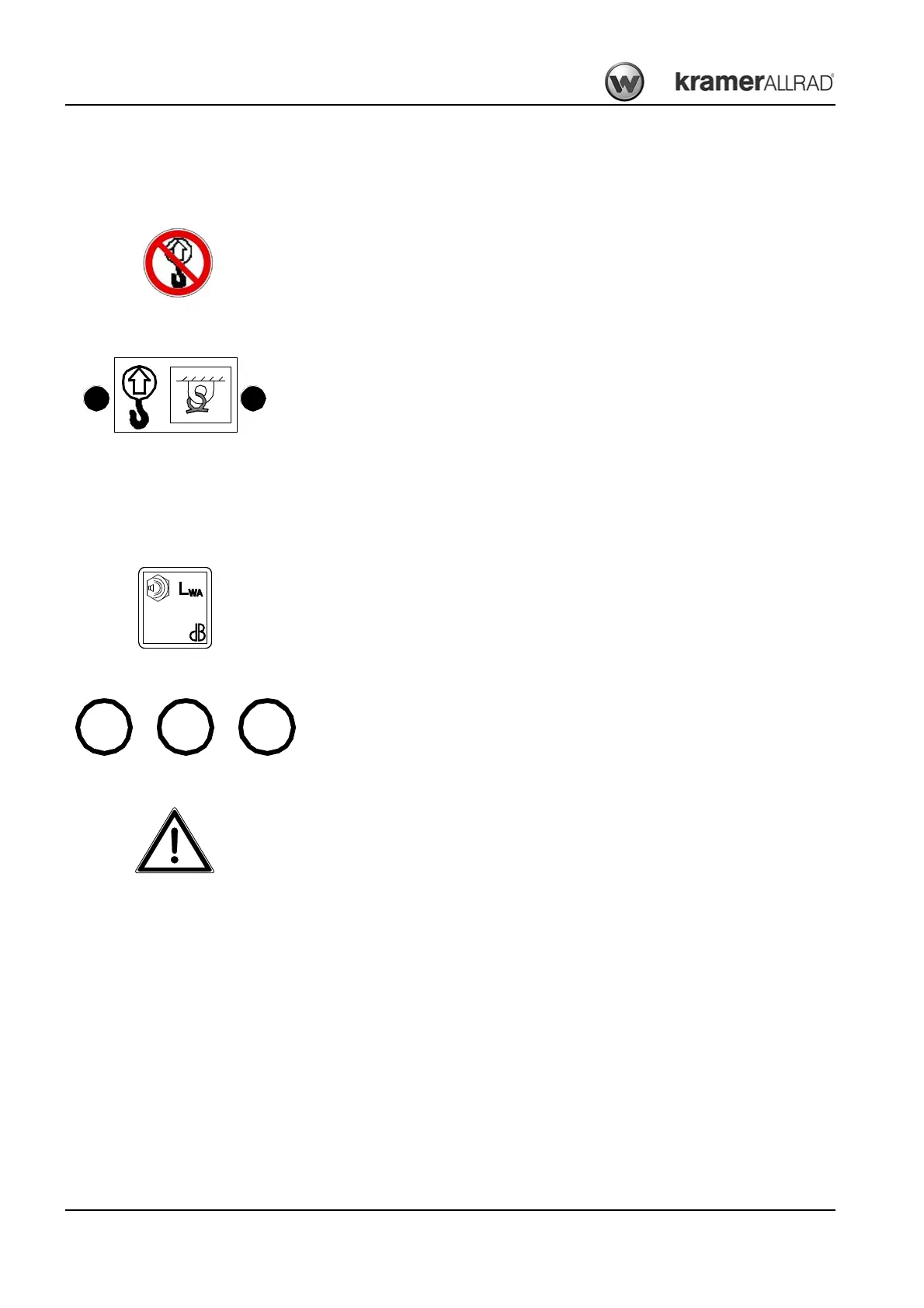

1.10 Description of labels and symbols
Labels on the outside of the machine
Cab eye hook label
The eye hooks on the cab are for removing the cab only and may not be used for crane
handling the machine – see chapter 3 “Crane handling the machine” on page 3-59 for fur-
ther details.
Location
Cab roof (4x).
Label for loading and tying down the machine
Eye hooks for tying down the machine B during transport, and eye hooks A for loading the
machine.
➥ – see chapter 3 “Crane handling the machine” on page 3-59
➥ – see chapter 3 “Loading and transporting the machine on a transport vehicle” on
page 3-60
Location
On left and right of machine frame above the front axle attachment and at the rear under
the machine.
Noise level label
Noise levels produced by the machine.
➥ L
WA
= sound power level – see chapter 6 “Noise levels” on page 6-12
Location
On the rear window.
Label: maximum design-specific speed
Design-specific max. machine speed 20 kph (30/40 kph option)
Location
At the rear of the machine and on the left/right of the counterweight.
Label: general indication of danger
This label warns persons standing or working near the machine of an existing danger
within the area of increased danger around the machine.
Location
Front left and right of loader unit, and at rear of machine.
Fig. 9: Cab eye hook label
Fig. 10: Label for loading and tying down the machine
A B
XX
Fig. 11: Noise level label
20
Fig. 12: Speed label
4030
