6.20 Wheel loader dimensions with pallet forks (models 351-01/351-02/351-03)
Other dimensions
➥ –seeWheel loader dimensions with bucket (model 351-01) on page 6-17
➥ –seeWheel loader dimensions with bucket (model 351-02) on page 6-18
➥ –seeWheel loader dimensions with bucket (model 351-03) on page 6-19

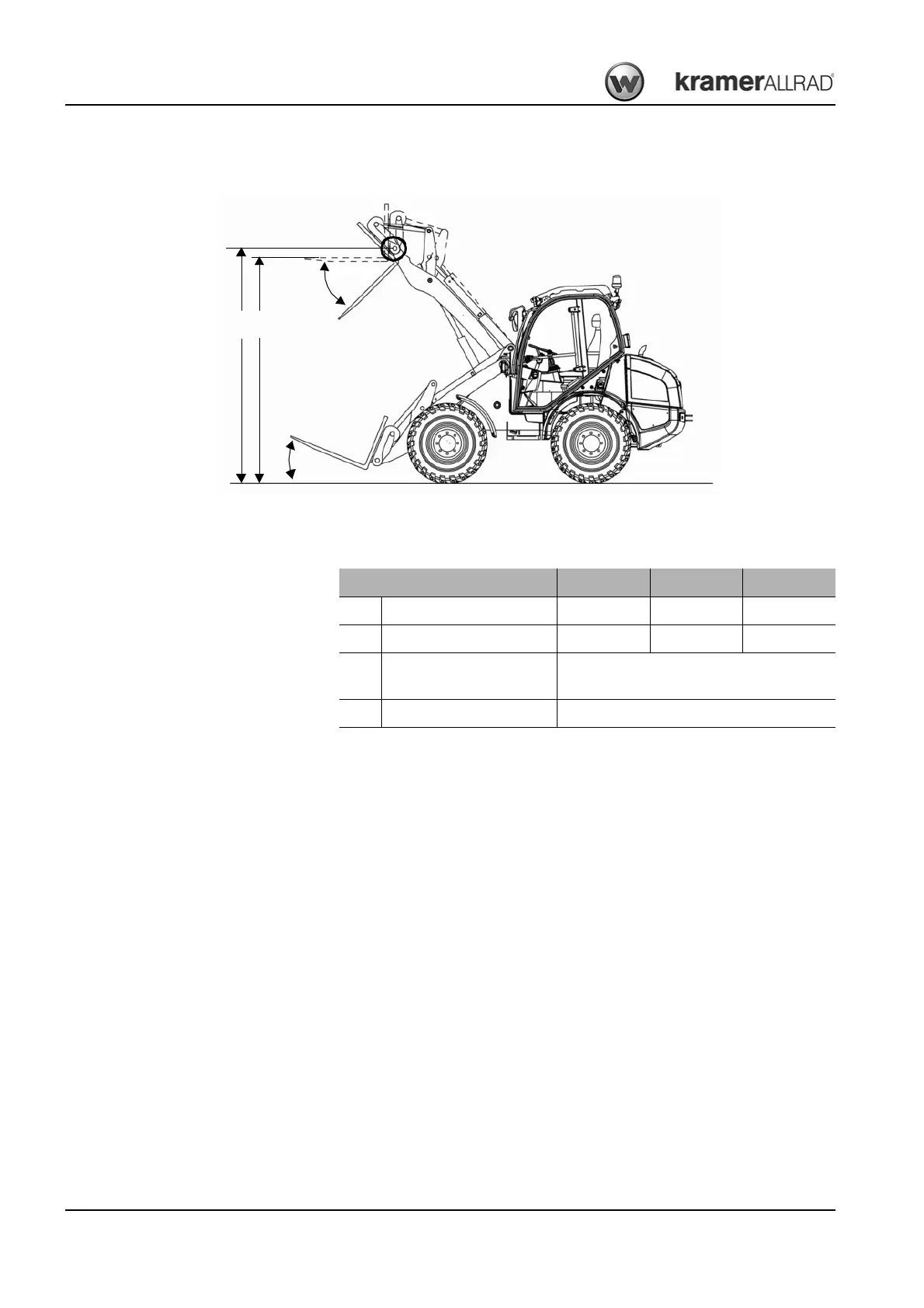

Fig. 202: Machine dimensions with pallet forks
a b
d
c
Wheel loader model 351-01 351-02 351-03
a Pin height 3065
1
mm
1. With tyres 12.5-18
3250
2
mm
2. With tyres 12.5-20
3250
2
mm
b Pallet height 2800
1
mm 3000
2
mm 3000
2
mm
c
Dump-in angle in transport
position
17°
d Dump-out angle 85°
