Maintenance
Refuelling
In order to avoid intoxication and fire hazards, do not refuel in enclosed areas!
☞ Never carry out work on the fuel system in the vicinity of naked flames or
sparks
The fuel tank filler inlet is located on the left-hand side of the machine (left-hand side
access to cab).
The machine can be equipped with an optional additional fuel tank (on the right-hand side
access to the cab).
First fill up the main tank A and then the additional tank B as you refuel!
• Capacity = main tank about 85 l/additional tank about 60 l
Do not park the machine on extreme slopes if the fuel tank is full to the brim!
The fuel can flow out of the tank if the cap is opened!
Checking/cleaning the additional fuel filter (water separator, option)
The additional fuel filter is fastened on the the engine cover lock
Drain the condensation water every 50 s/h (service hours)
☞ Proceed as follows:
• Stop the engine
• Apply the parking brake
• Switch off ignition and remove the ignition key
• Place a container to collect the fuel
• Open stop cock A on the additional fuel filter and drain the condensation water
• Close stop cock A on the additional fuel filter
• Start the diesel engine and check the additional fuel filter for leaks
Use a suitable container to collect the fuel as it drains and dispose of it in an
environmentally friendly manner!
Have further repair work carried out by an authorised workshop

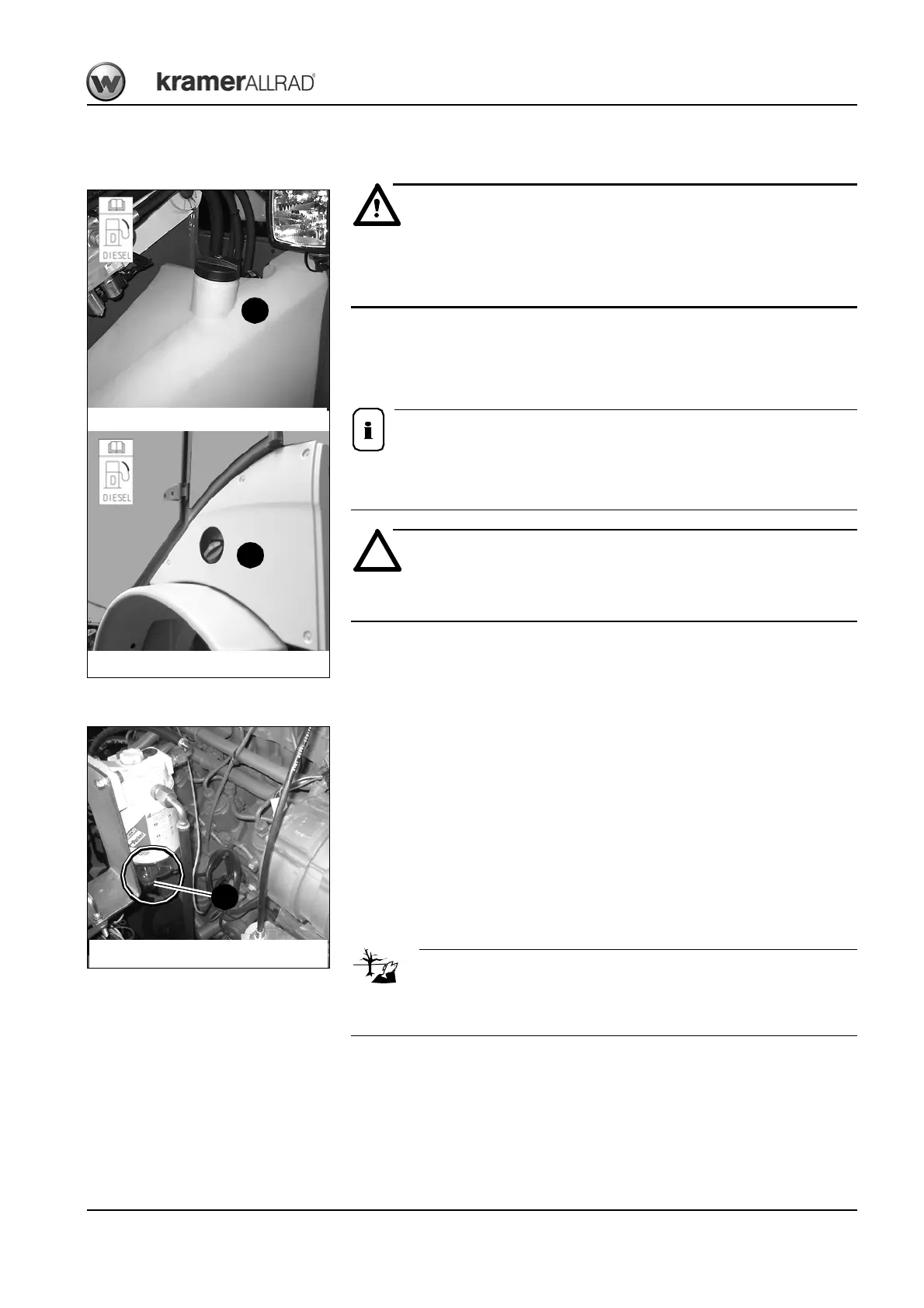

Fig. 156: Additional tank fuel filler inlet
Fig. 155: Main tank fuel filler inlet
A
B
Fig. 157: Checking the additional fuel filter
A
