Operation

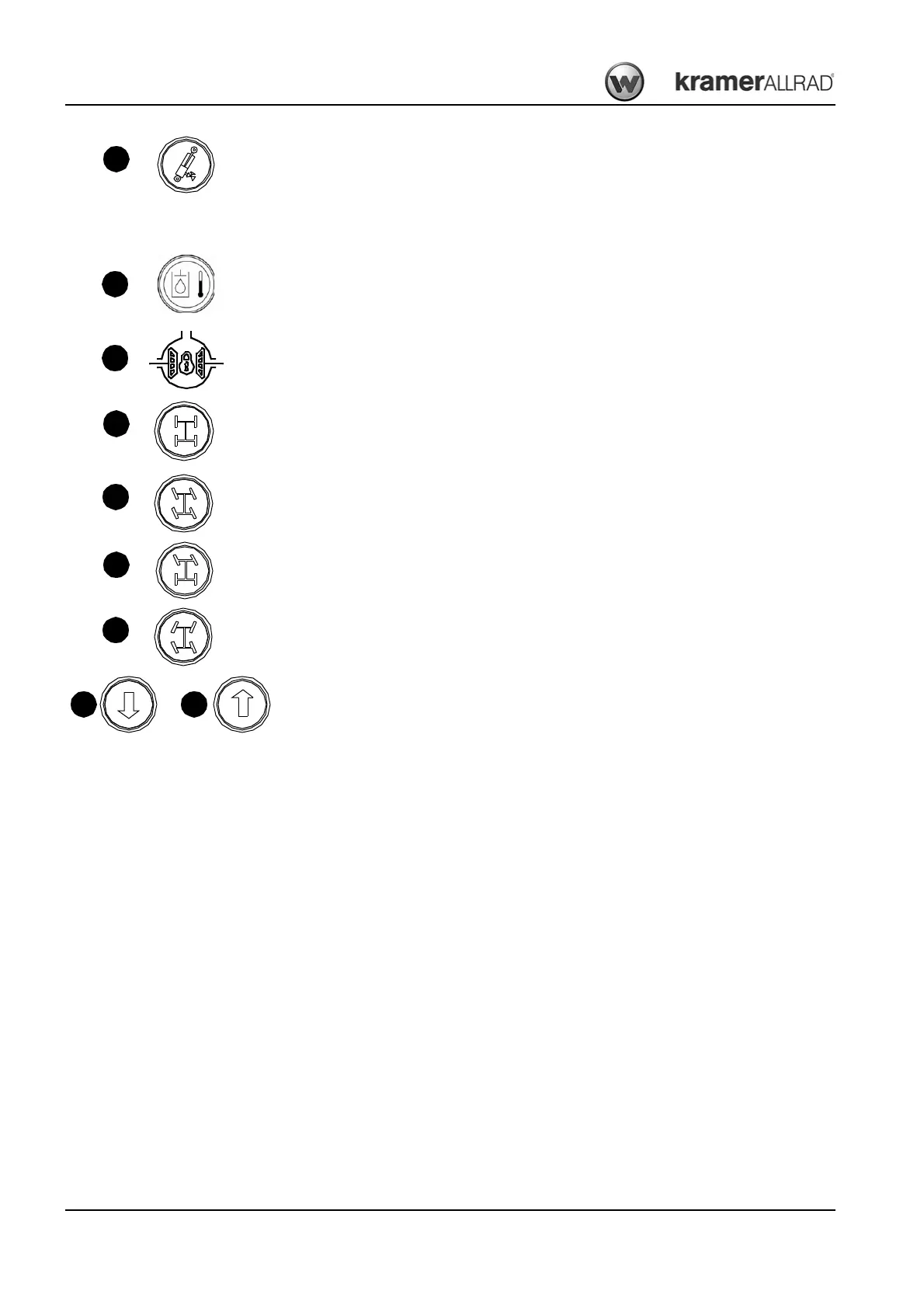

Telltale (yellow) – hose burst valve/load stabiliser (option)
Indicates that the load stabiliser is switched on, and that the hose burst valve is disabled.
➥ –seeLoad stabiliser (option) on page 3-40 and “Hose burst valve” safety feature
(option) on page 3-98
Telltale (red) – hydraulic oil temperature
Indicates that the temperature in the hydraulic system is too high.
➥ – see chapter 5 “Monitoring the hydraulic oil and the reflux filter” on page 5-15
Telltale (green) – differential lock
Indicates that the differential lock is switched on
Telltale (red) – steering synchronisation
Indicates that the wheels on both axles are aligned.
Telltale (green) – diagonal steering (crab steering option)
Indicates that diagonal steering is switched on
Telltale (green) – front axle steering (option)
Indicates that front axle steering is switched on
4 wheel steering telltale (green)
Indicates that 4 wheel steering is switched on
Telltale (green) – driving direction
Indicates forwards or reverse driving direction
