5 PREPARATIONS
37
5.1.2 Mounting the AC Cord Clamp
An AC cord clamp is included with the instrument to prevent the power cord from being pulled
free of the AC inlet. To mount it, follow the procedure below.
1 Connect the power cable.
Ensure that the power cable is inserted within the loop of the AC cord clamp.
2 Adjust the position of the loop portion of the AC cord clamp.
Move the loop portion forward or backward to position it as shown below.
To pull the loop portion forward, lift the lever first and then move the loop portion.

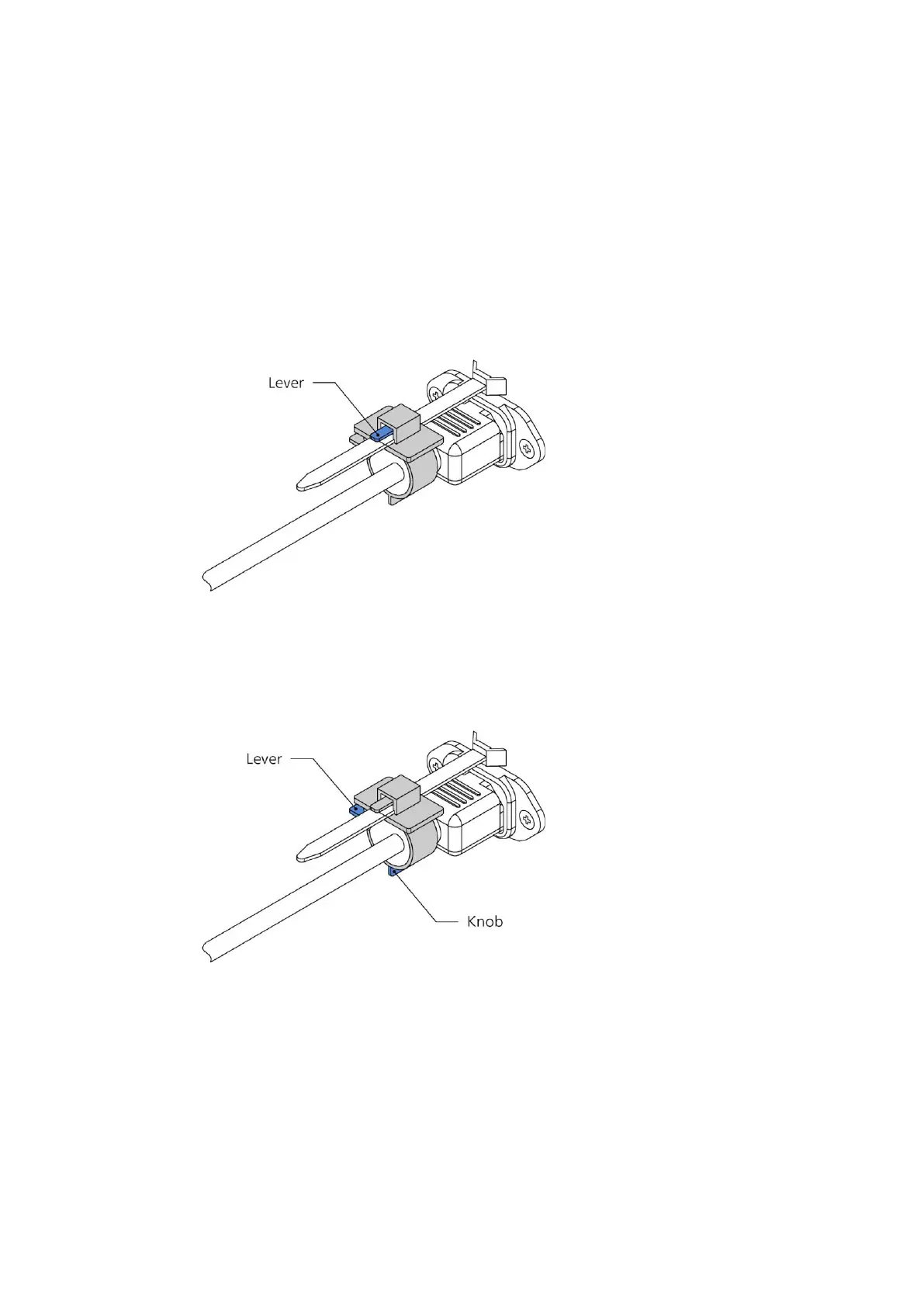

Figure 5-2 | Mounting the AC cord clamp 1
3 Adjust the size of the loop portion of the AC cord clamp.
Turn the knob to tighten the loop portion until the knob stops.
To loosen the loop portion, lift the lever first and then move the loop portion.
Figure 5-3 | Mounting the AC cord clamp 2
4 Pull the power cord to check that it does not come loose.
