6 BASIC OPERATION
58
6.4 LTC Signal I/O and Remote Control
The LTC/REMOTE connector on the rear panel is used to input an LTC signal (1 input), output
three LTC signals (3 outputs), and perform remote control (alarm output, preset recall).

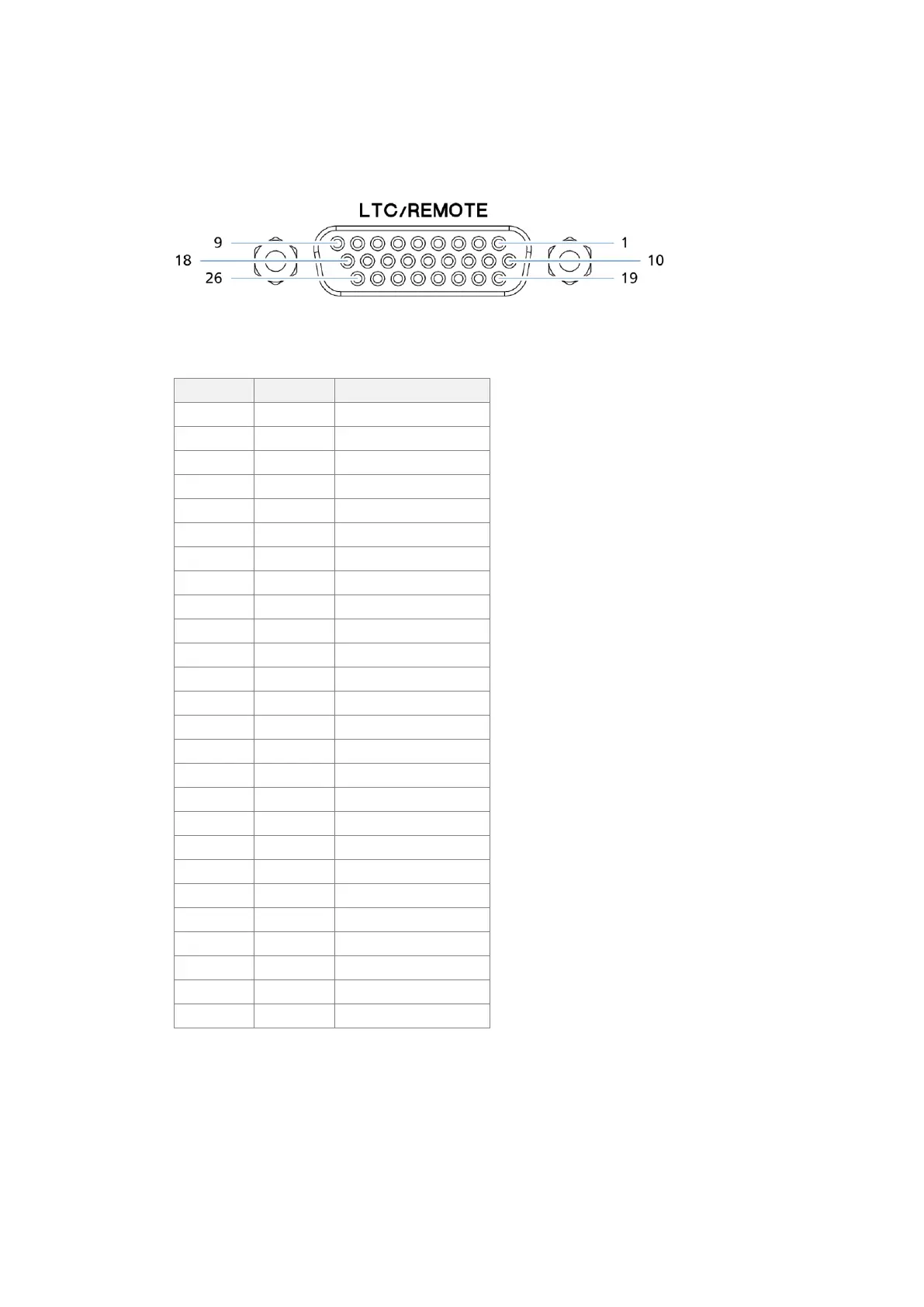

Figure 6-1 | LTC/REMOTE
Table 6-3 | Pinout
Pin No.
I/O
Pin Name
1
I
LTC+
2
-
GND
3
O
LTC1+
4
O
LTC2+
5
O
LTC3+
6
-
GND
7
O
ALARM1
8
O
ALARM2
9
-
RESERVED
10
I
LTC-
11
-
GND
12
O
LTC1-
13
O
LTC2-
14
O
LTC3-
15
-
GND
16
-
RESERVED
17
-
RESERVED
18
-
OPEN
19
-
SHIELD GND
20
I
PRESET1
21
I
PRESET2
22
I
PRESET3
23
I
PRESET4
24
-
GND
25
-
RESERVED
26
-
SHIELD GND
