6 BASIC OPERATION
55
6.3 SDI Signal Output
6.3.1 Analog Black Signal Output

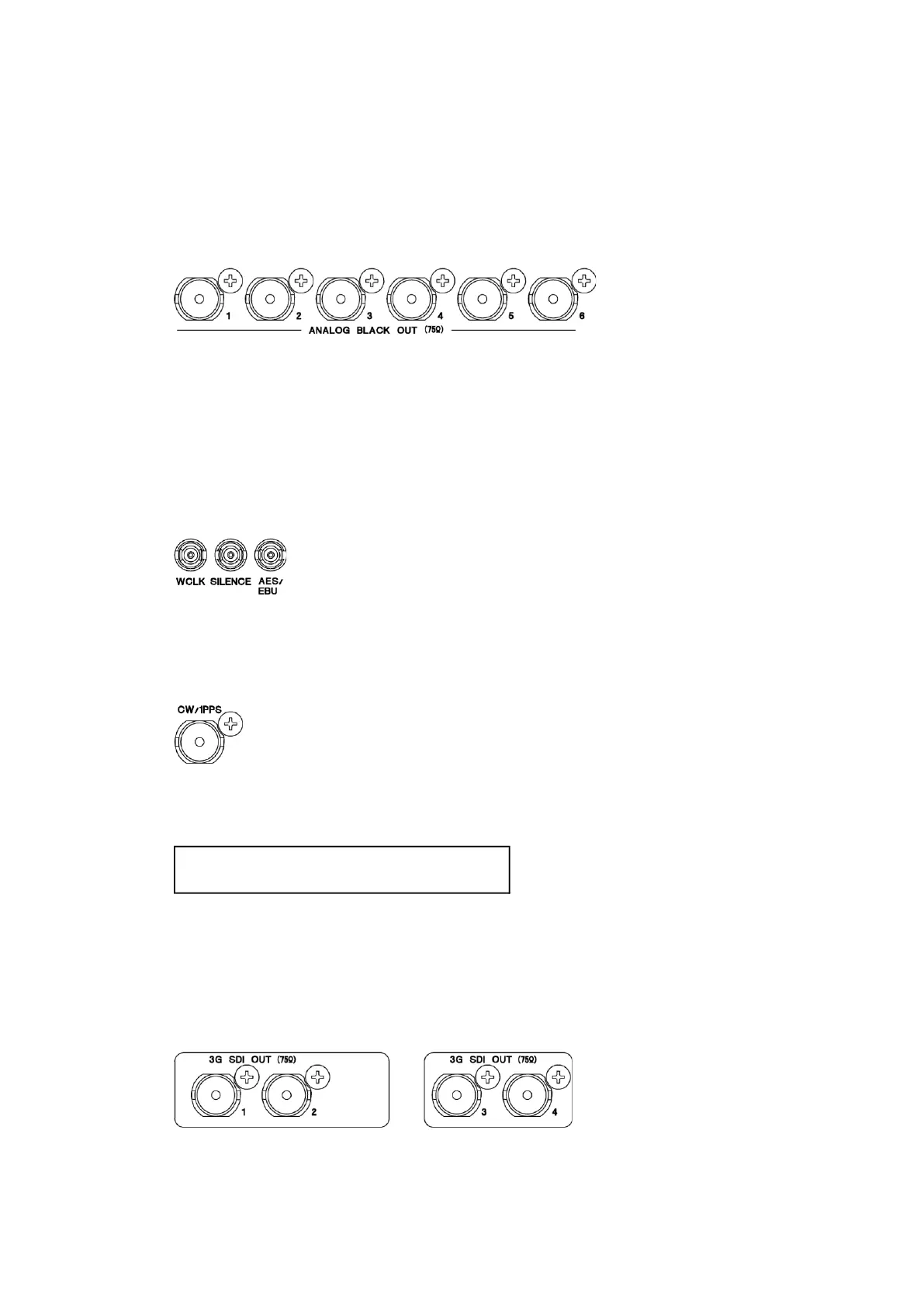

Six analog black signals synchronized with the reference signal are output from ANALOG BLACK
OUT connectors 1 to 6 on the rear panel.
You can set the analog black signals on the BLACK CONFIG menu.
[See also] "8 BLACK CONFIG MENU"
6.3.2 Audio Signal Output
An AES/EBU signal synchronized with the reference signal is output from the AES/EBU
connector on the rear panel; a silence (DARS) signal synchronized with the reference signal is
output from the SILENCE connector; and a word-clock signal synchronized with the reference
signal is output from the WCLK connector. Use DIN cables.
You can set the audio signals on the AUDIO CONFIG menu.
[See also] "9 AUDIO CONFIG MENU"
6.3.3 CW/1PPS Signal Output
A 10MHz CW signal or 1PPS signal synchronized with the reference signal is output from the
CW/1PPS connector on the rear panel.
You can select the output signal type with CW/1PPS OUTPUT on the CW/1PPS CONFIG menu.
[See also] "11 CW/1PPS CONFIG MENU"
6.3.4 SDI Signal Output (SER02)
Four SDI signals synchronized with the reference signal are output from 3G SDI OUT connectors
1 to 4 on the rear panel.
You can set the SDI signal on the SDI CONFIG menu.
[See also] "12 SDI CONFIG MENU (SER02)"
1 . C W / 1 P P S O U T P U T
■ C W □ 1 P P S
