When REFERENCE SOURCE is set to PTP1/2, the PTP IN LED on the front panel is displayed as
shown below according to the combination of the PTP1 state and the PTP2 state.

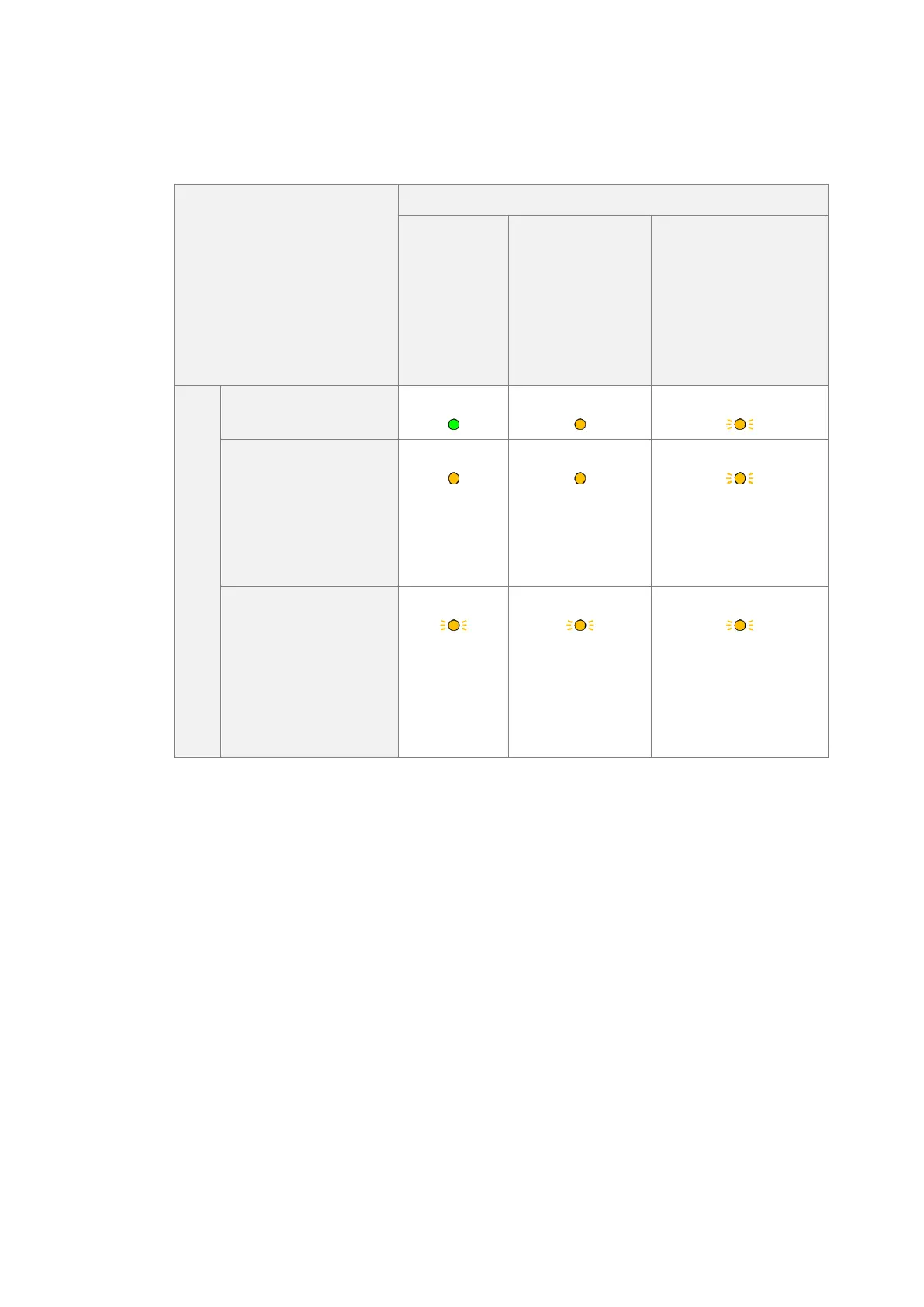

Table 6-1 | PTP IN LED
PTP1
･LOCK
･PASSIVE
･STAY
･PTP ADJUST FREQ
(when restored)
･PTP ADJUST PHASE
(when restored)
･RECOVERY
･PTP FOLLOWER AGING
･PTP LEADER NOT FOUND
･PTP ADJUST FREQ
(when locked)
･PTP ADJUST PHASE
(when locked)
･TRACKING
PTP2
･LOCK
･PASSIVE
Lit in green
Lit in orange
Blinking orange
･STAY
･PTP ADJUST FREQ
(when restored)
･PTP ADJUST PHASE
(when restored)
･RECOVERY
Lit in orange
Lit in orange
Blinking orange
･PTP FOLLOWER AGING
･PTP LEADER NOT FOUND
･PTP ADJUST FREQ
(when locked)
･PTP ADJUST PHASE
(when locked)
･TRACKING
Blinking orange
Blinking orange
Blinking orange
