5 PREPARATIONS
40
5.2 Rack Mounting
If you are mounting this instrument on a rack, be sure to provide additional support for the
body of the instrument. If you use only the front panel to mount the instrument, the instrument
case may deform or fall. This instrument can be mounted on a 19-inch EIA standard rack.
The recommended slide rails are shown in the following table. To mount this instrument on a
rack, two slide rails, one for the left side and one for the right side of the instrument, are
required.
Table 5-1 | Recommended slide rails
Slide Rail Attachment
Attach slide rails to the instrument using binding head machine screws (M4×10).

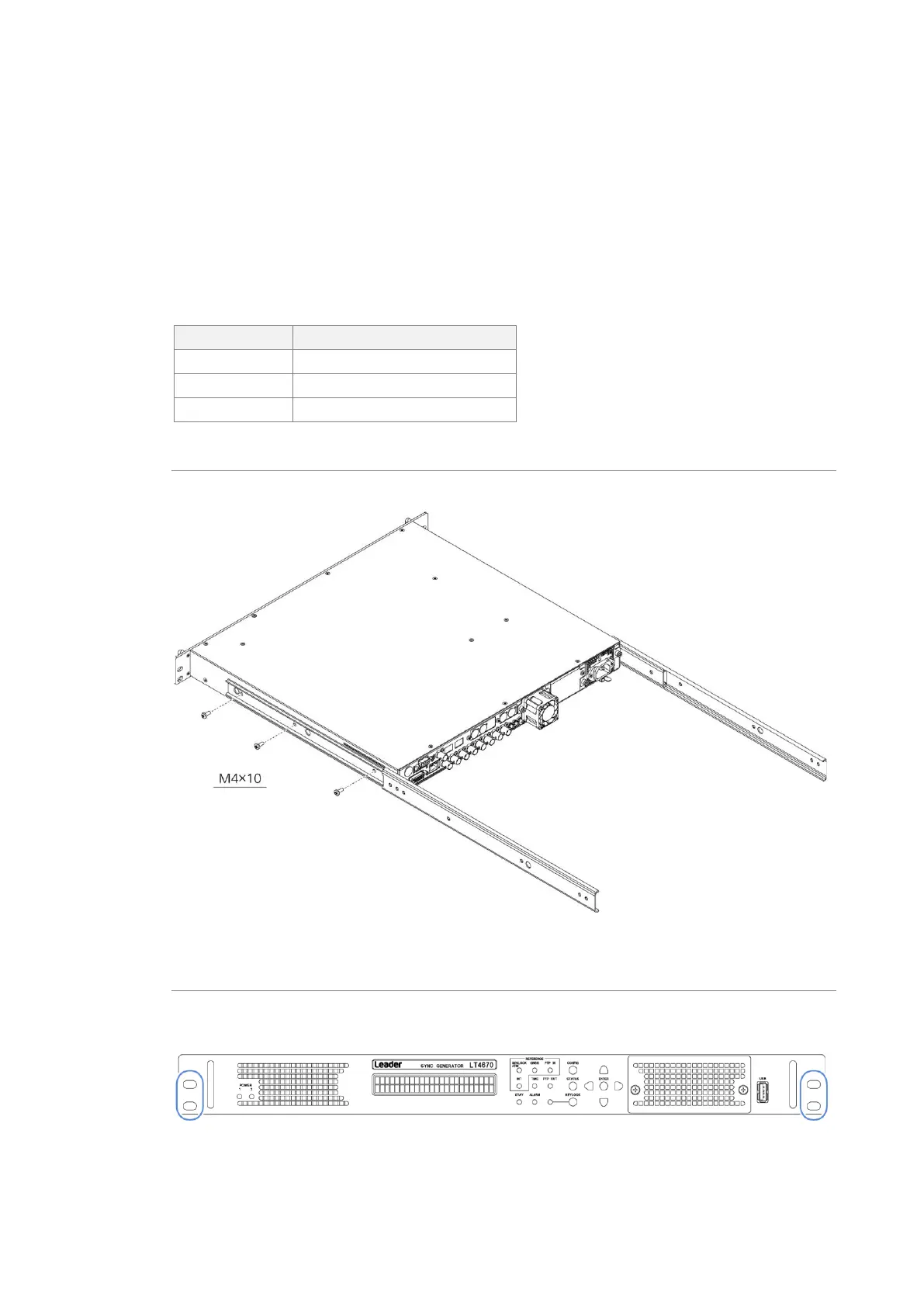

Figure 5-9 | Slide rail attachment
Rack Mounting
Insert the instrument into the rack, and then fasten the front panel to the rack.
Use M5, 10-32UNF, or 12-24UNC screws.
Figure 5-10 | Rack mounting
