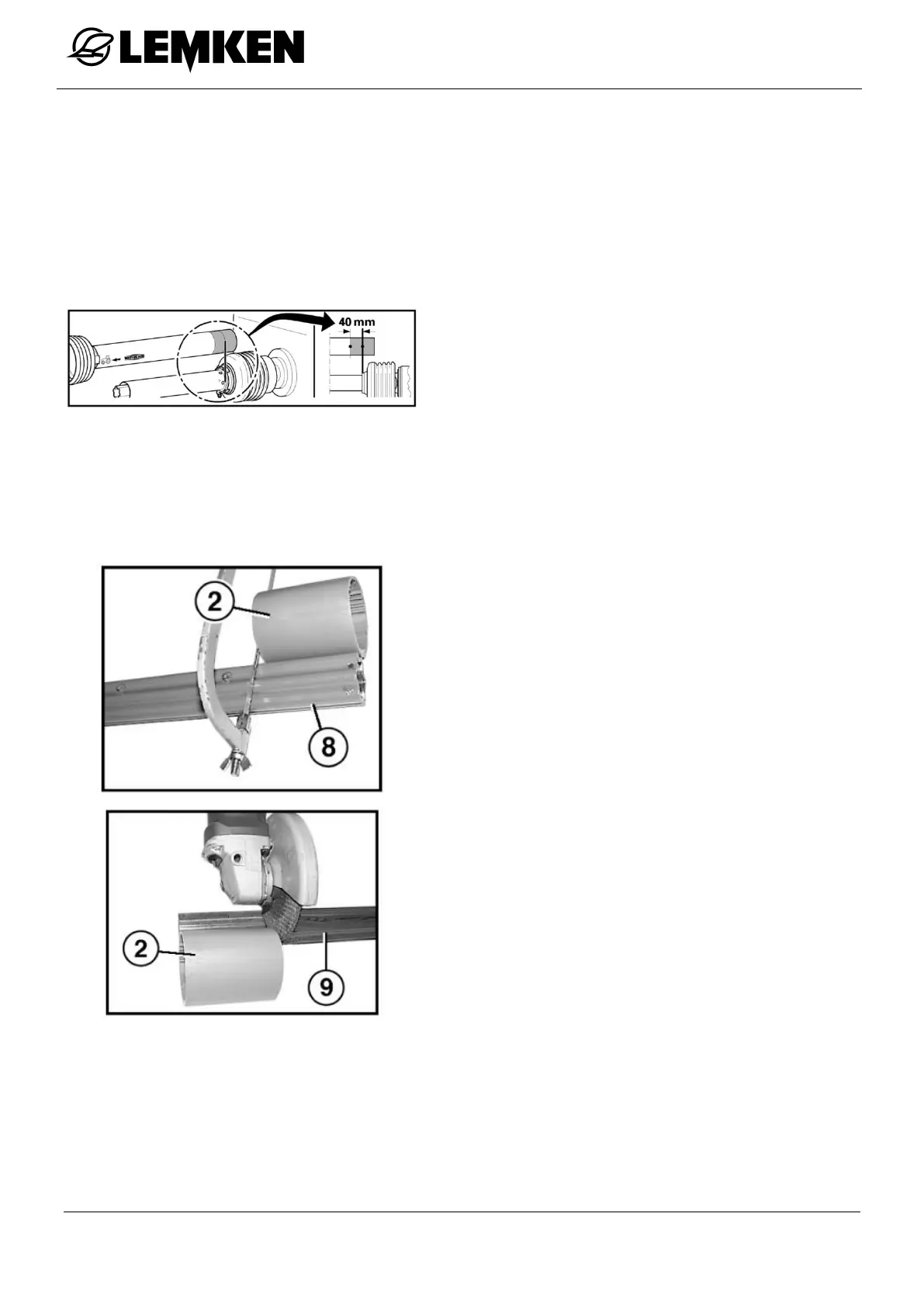

Shortening a non-telescopic cardan shaft.
Pull both PTO shaft halves apart.
Keep both PTO shaft halves at the shor-
test distance from tractor to implement.
Mark the length to be cut off on the outer
protective tube.
Remove the outer protective tube and
the inner protective tube.
Cut off the marked piece of the outer
protective tube.
Shorten the inner protective tube to the
same length as the outer protective tube.
Hold the cut-off piece of the outer pro-
tective tube (2) over the outer profile tu-
be (8) and cut the outer profile tube (8)
at a right angle.
Hold the cut-off piece of the inner protec-
tion tube (2) over the inner profile tube
(9) and cut off the inner profile tube (9)
at a right angle.
Deburr and clean the outer and inner
profile tubes.
Grease the inner profile tube with multi-
purpose grease.
