The nozzles are mounted on the nozzle
holders with bayonet caps. It is recom-
mended that a separate set of bayonet
caps is used for each set of nozzles.
Be aware that different bayonet caps
must be used for each type of nozzle.

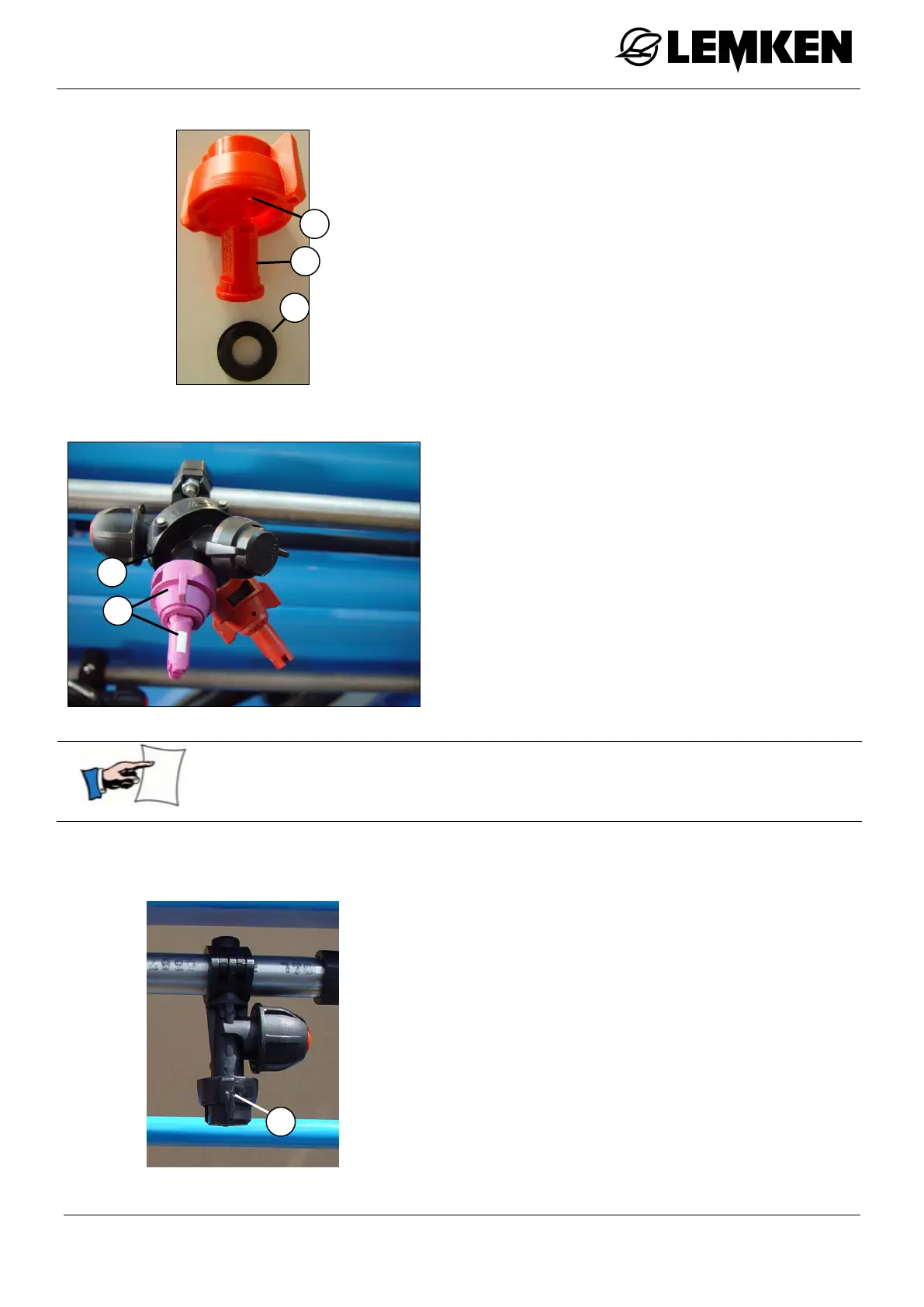

Insert the nozzle (1) into the bayonet cap
(2).
Place the seal (3) onto the nozzle (1).
Mount the correct nozzles on the nozzle
holder (2) with the bayonet caps (1).
Rotating the three-nozzle holder or the four-nozzle holder is only
permitted when the nozzles are switched off.
Place the three-nozzle holder or the four-nozzle holder in the correct nozzles.
If not all nozzles of a segment are required:
in case of single nozzle holders, close
the individual nozzles with caps (1).
in case of multiple nozzle holders, place
these in the closed position between the
individual nozzles.
