Preparations
78

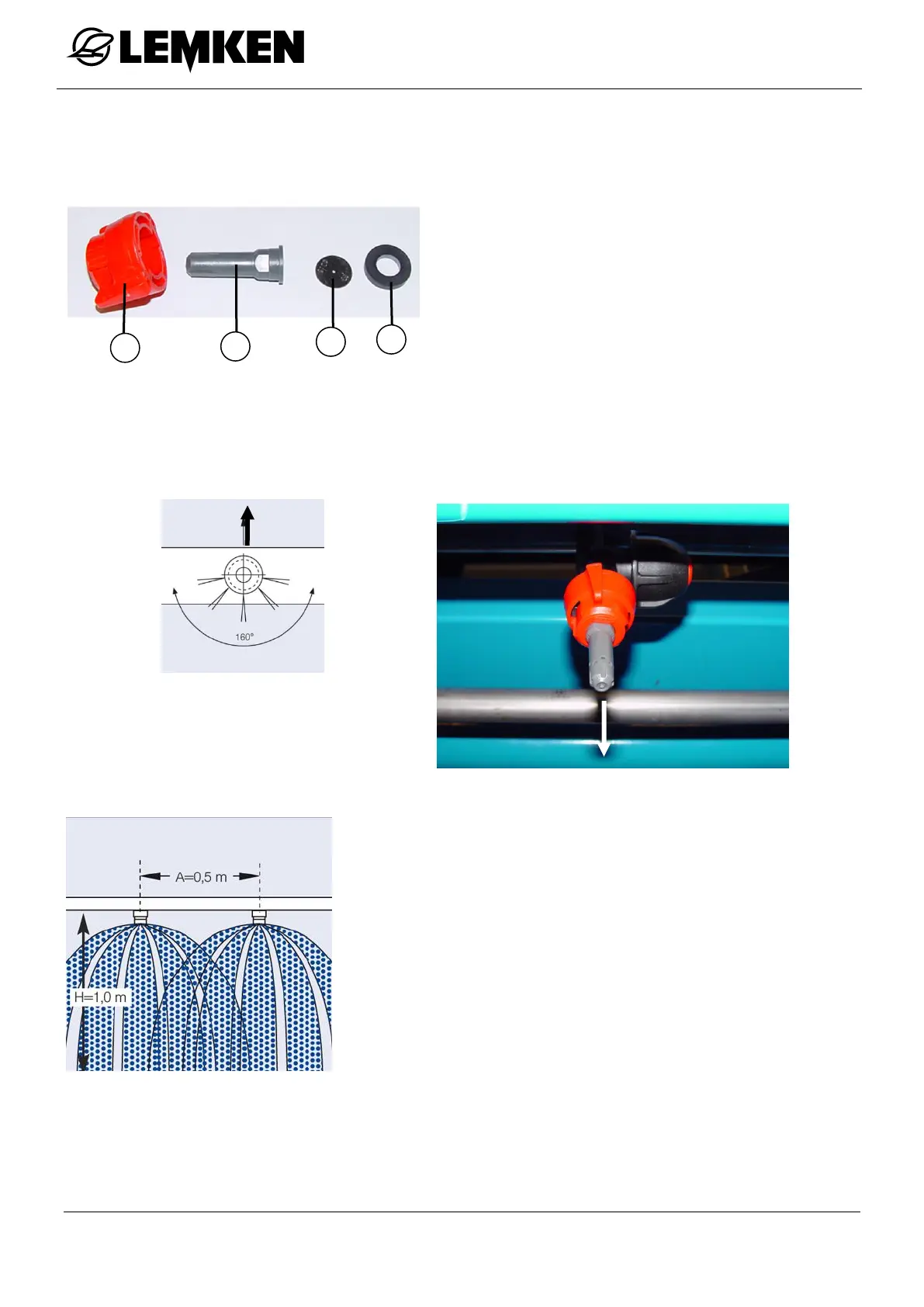

Five-hole liquid fertilizer nozzles
The five-hole nozzles are used in the following combination:
 Bayonet cap (1)
 Five-hole nozzle (2)
 Metering disc (3)
 Seal (4)
 Note the correct installation
 The arrow in the 2 following illustrations shows the direction of travel of the im-
plement.
A = Nozzle spacing 0.5 m
H = Spraying height 1.0 m
4
3
2
1
