160

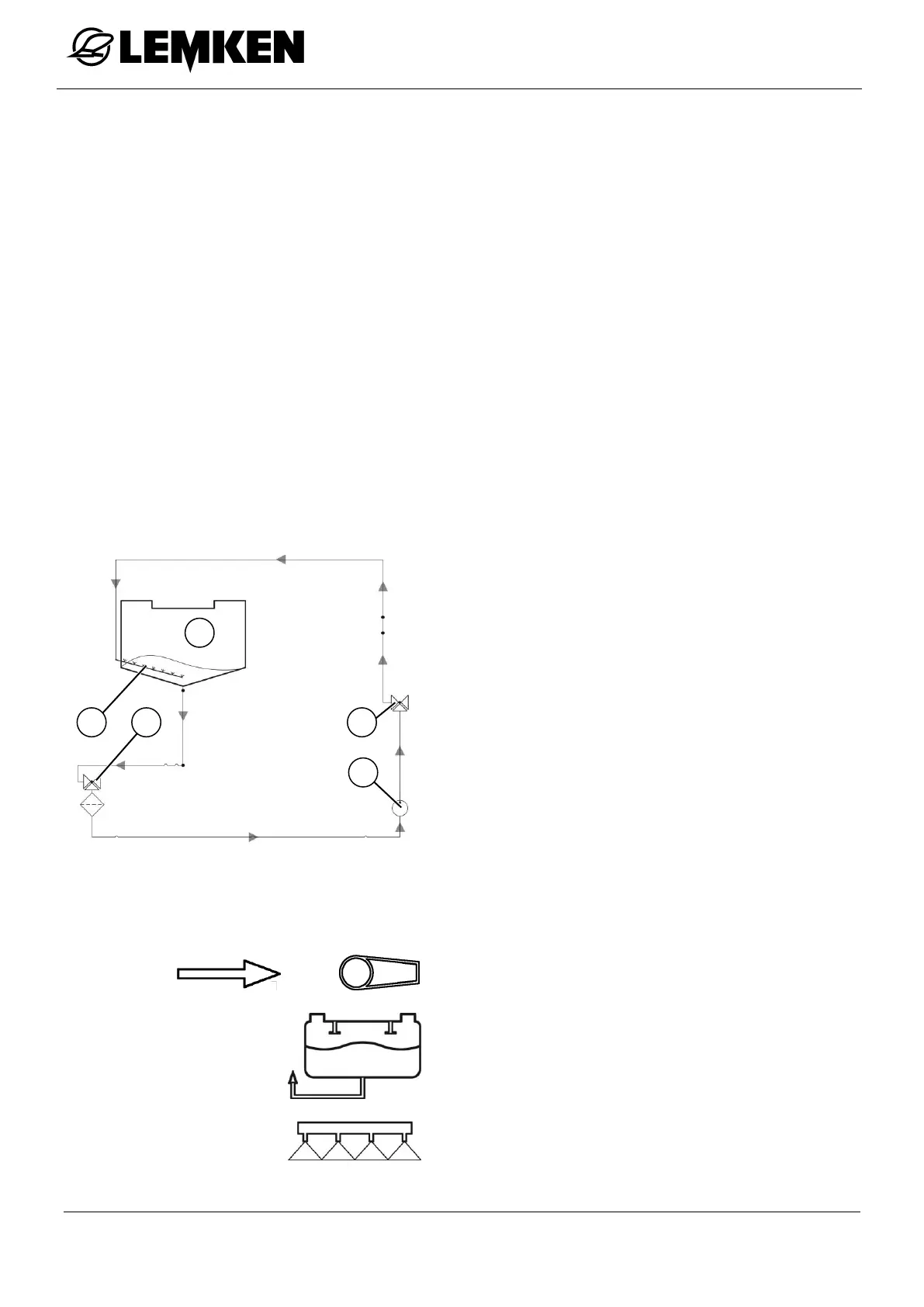

The spray pump (H) draws the spraying
fluid from the main tank (7) via the swit-
ching valve (C), the selection valve (A) and
the suction filter (9). The spraying fluid is
pumped to the closed part-width sections
via the diverting valve (D). The spraying
fluid continues to flow through the central
bypass valve (21) into the agitator (5). The
agitator (5) moves as a result of the hyd-
raulic pressure with which the spraying flu-
id is pumped through the system.
Description 4500 l
The stirring pump (I) draws the spraying
fluid from the main tank via the selection
valve (B) and the suction filter (9). The
spraying fluid is pumped into the main tank
(7) via the agitator control (E) and the agi-
tator (5). The agitator (5) moves as a result
of the hydraulic pressure with which the
spraying fluid is pumped through the sys-
tem.
Procedure
Prerequisite: The selection valve (A) is
switched to the switchover valve (C).
Switch the switchover valve (C) to the
main tank.
Switch the diverting valve (D) to
spraying.
