LEMKEN Primus-12 - Basic Equipment; Equipment from EES Pack 2

Layout and description
62

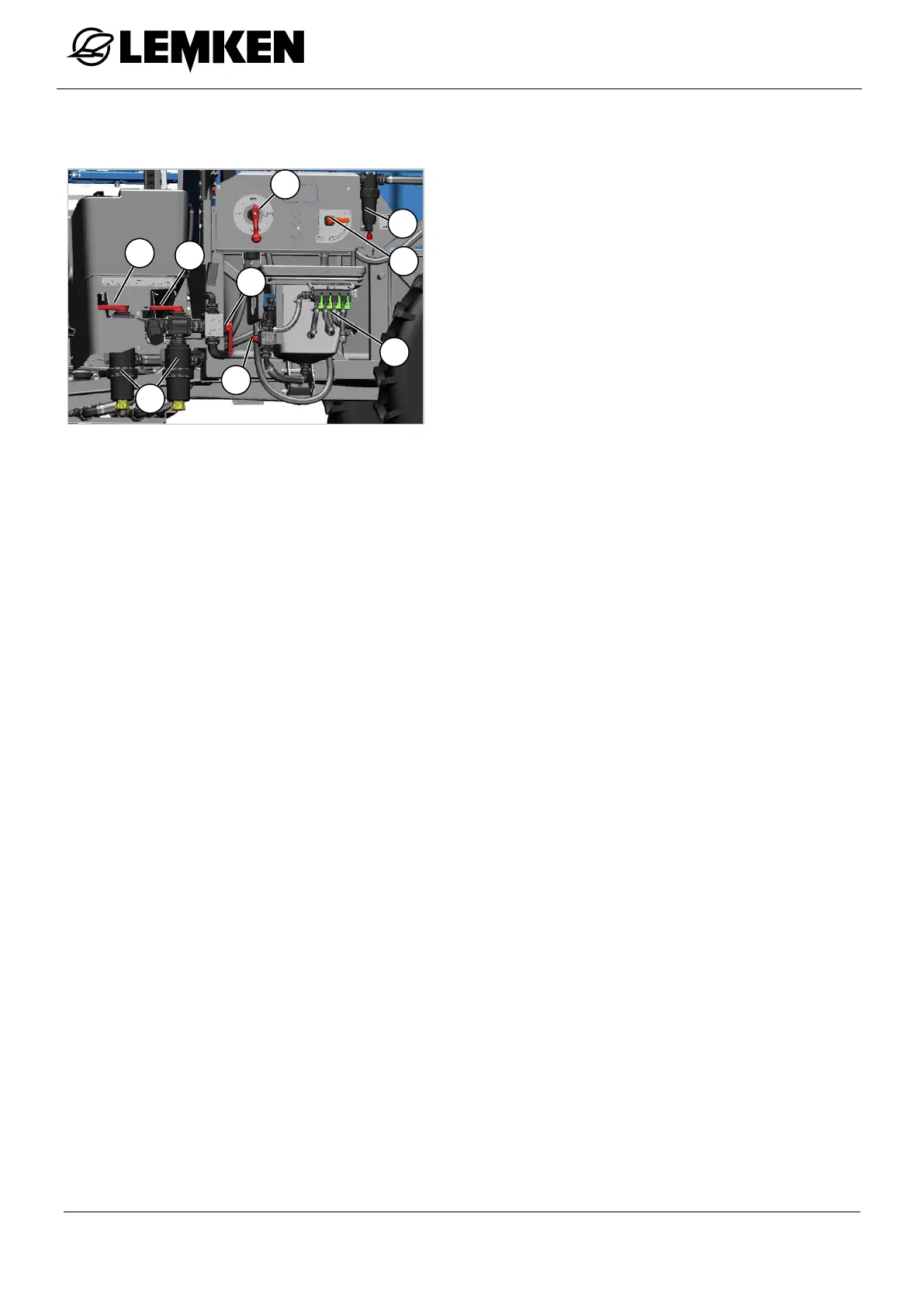

5.11.1 Basic equipment
A
Selection valve spray pump
B
Selection valve agitator pump
C
Switching valve for spraying
fluid/clean water
D
Distributing valve
E
Agitator control
J
Suction valve
3
Pressure filter
9
Suction filter
27
Induction hopper fitting
Display TANK control indica-
tor (not shown)
5.11.2 Equipment from EES Pack 2
EES pack = Electronic accessori-
es for water hydraulic actuation
The following positional designa-
tions correspond to the position
markings of the fluid lines, see
"Liquid flow, page 51".
D
B
C
3
J
27
9
E
A
