10.13.2 Check oil level

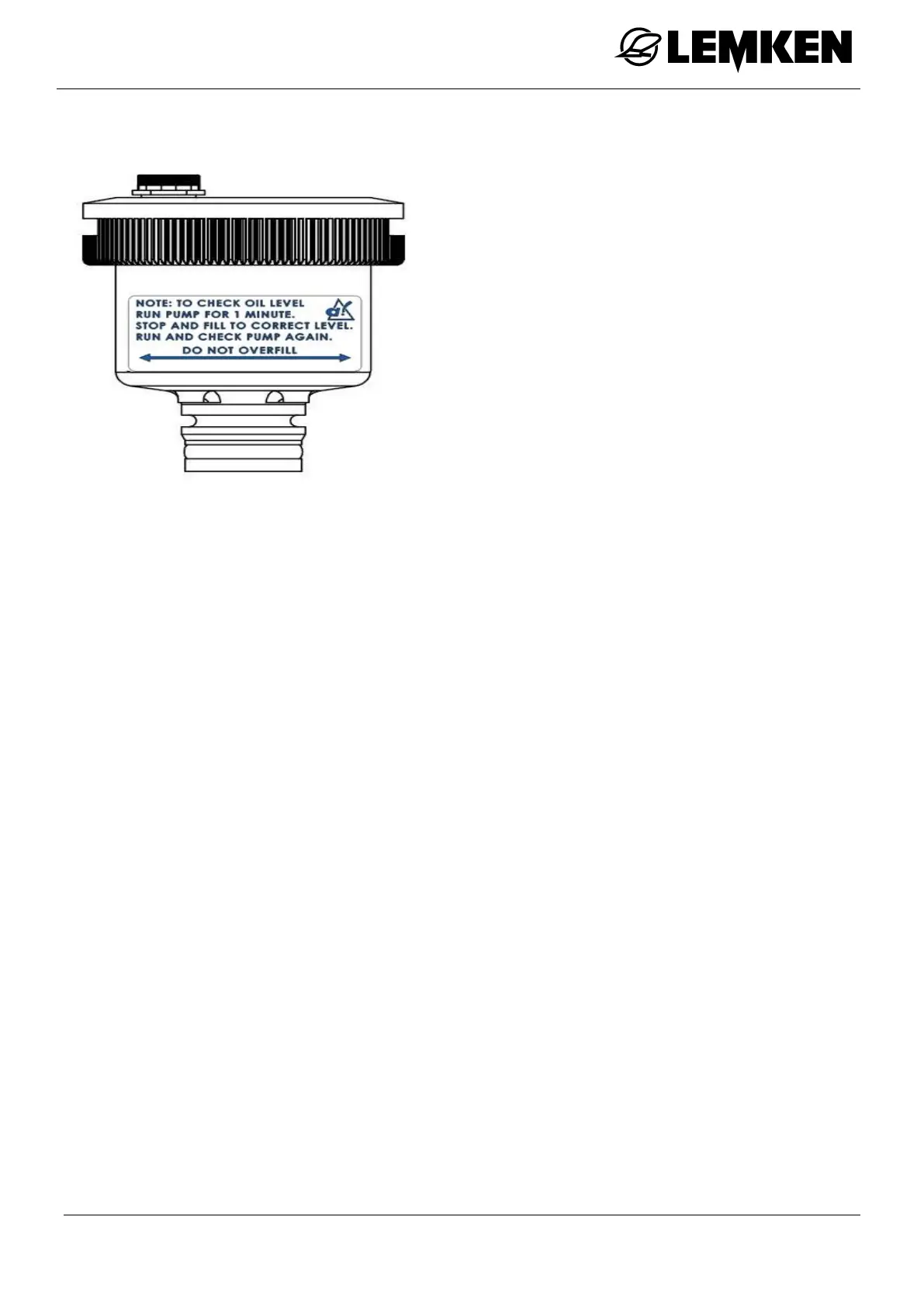

ATTENTION: To check the oil level,
operate the pump for 1 minute.
Stop the engine and fill oil up to the ar-
row line. Switch on the engine and re-
check the oil level.
Do not over-fill
The oil level of the pump is checked at the
sight glass during operation.
WARNING: A universal shaft drives the
pump. Persons may be entangled, pulled
in and seriously injured by the cardan
shaft.
Check the oil level in the sight glass of
the pump from a safe position.
To check the oil level safely:
Secure the tractor-device combination to
prevent it from rolling away.
Operate the pump for at least 1 minute.
The oil warms up. The membrane
conveys the water pressure of the boom.
This is the only way to show the correct
oil level.
ATTENTION: If the oil level is checked
while the machine is idle, an incorrect oil
level is displayed.
Check oil level daily, after no more than
8 operating hours have elapsed.
If the oil level falls below the arrow line
during operation, refill oil safely.
