Layout and description
80

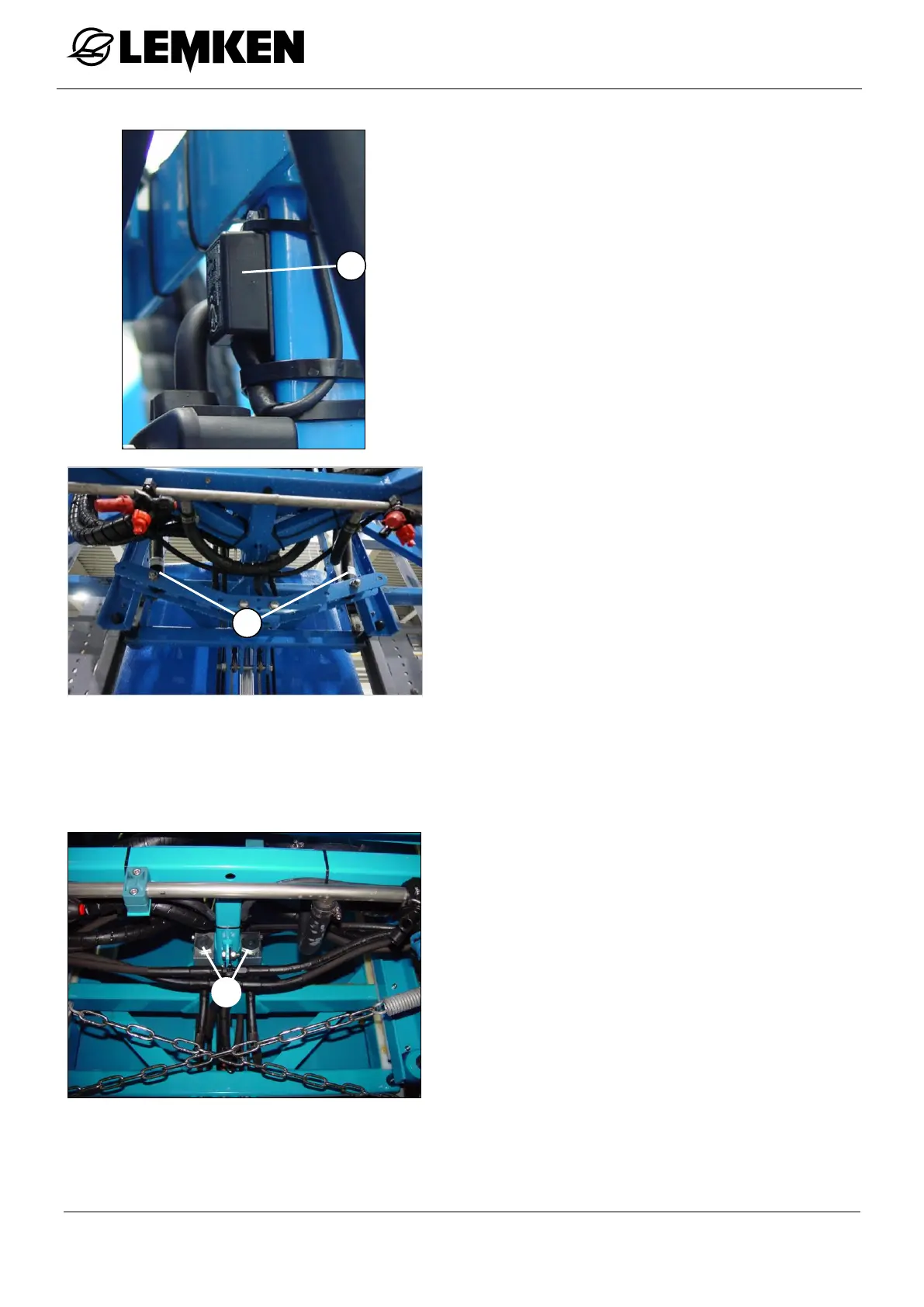

A pendulum sensor on the boom (3) rec-
ords the slope angle of the boom.
Additional dampers (4) minimise the vibra-
tions on the boom.
See the DISTANCE-Control operating in-
structions.
5.26 Hydraulic flow dividers and pressure limiting valves
A hydraulic flow divider (1) is provided for
each of the functions symmetrical folding
of the boom and separate folding of the
ends.
A pressure limiting valve safeguards each
of the functions symmetrical folding of the
boom and separate symmetrical folding of
the ends against overload.
The hydraulic flow dividers and pressure limiting valves are set at the factory and
must not be adjusted.
4
3
1
