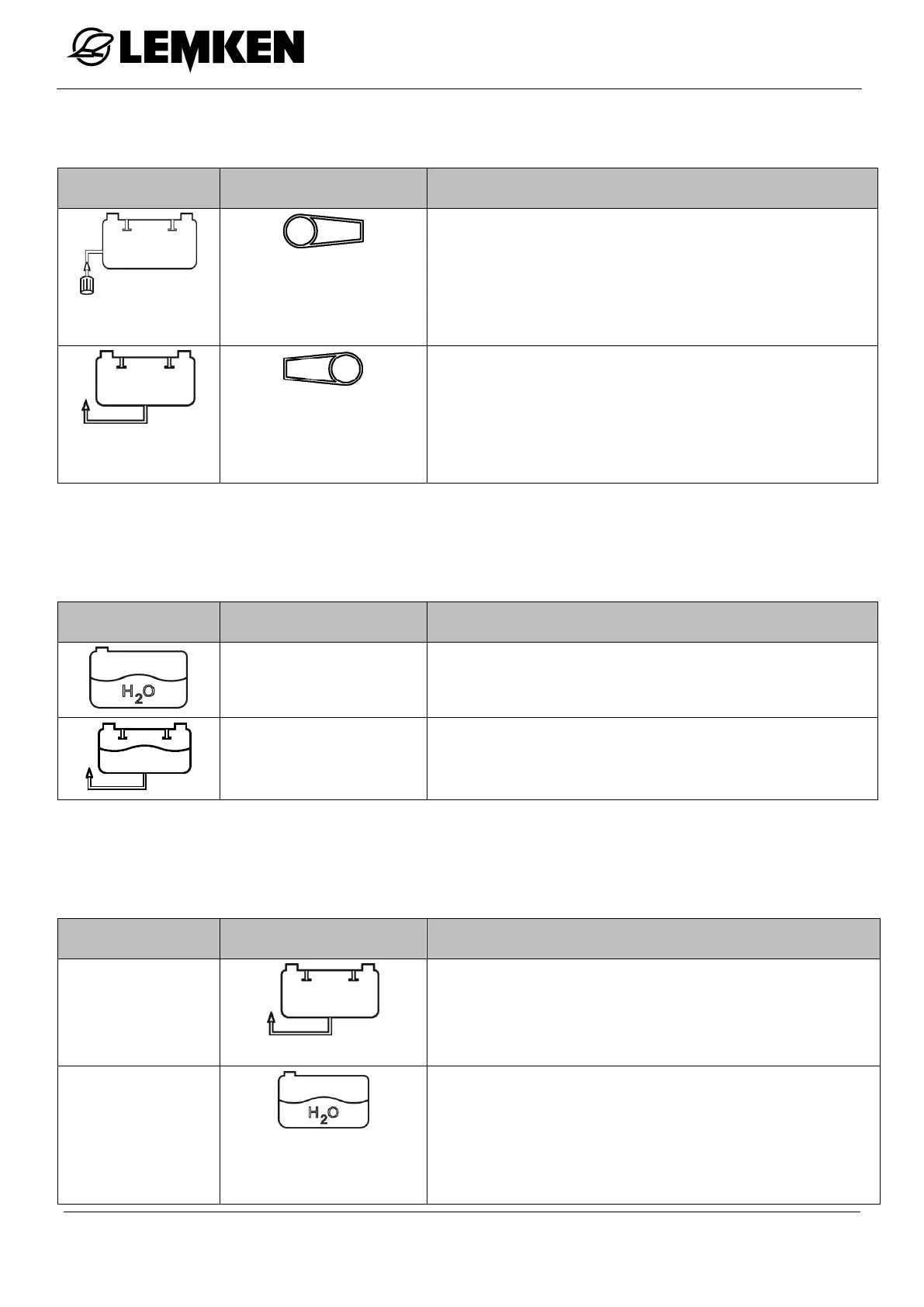

LEMKEN Primus-12 - Switchover Valve

Layout and description
64
Selection valve agitator pump
Pictogram
Switch position
Description
 Selector valve (B) is opened to the exter-
nal connection.
 The spraying fluid in the main tank is not
stirred.
 Selector valve (B) is switched to the main
tank.
 The spraying fluid is stirred in the main
tank.
5.11.4 Switchover valve
Basic equipment
Pictogram
Function
Description
Clean water tank
Clean water is drawn from the clean water
tank for cleaning purposes.
Main tank
The spray solution is drawn out of the main
tank by the pump.
Equipment from EES Pack 2
The function is actuated on the control centre by pressing the blue button.
Blue button
Pictogram
Description
LED off
 Switchover valve (C) is set to main tank.
 The spray solution is drawn out of the main
tank by the pump.
LED on
 Switchover valve (C) is set to clean water
tank.
 Clean water is drawn from the clean water
tank for cleaning purposes.
