Layout and description
77

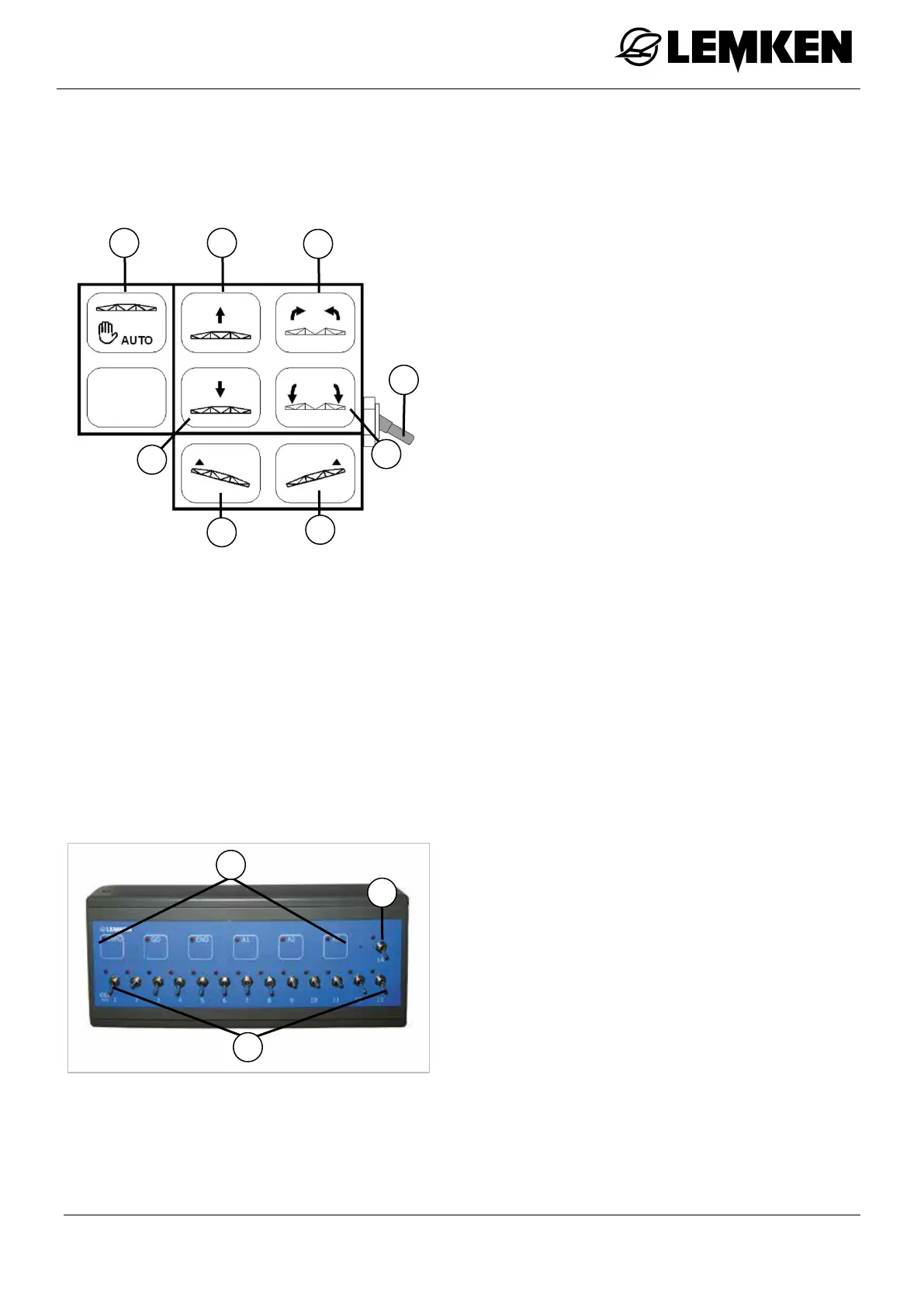

5.20.2 Boom
For this function, the switch (a) must be
held in the lower position.
No. Function
1 Manual or automatic control (DIS-
TANCE-Control)
2 Lift boom
3 Lower boom
4 Without function
5 Without function
6 Lift arm of the boom to the left
7 Lift arm of the boom to the right
 Refer to the separate operating instructions of the respective operation terminal
and the job computer.
5.21 Part-width section box CCI A 20
The LEMKEN CCI operation terminal can
be extended with an additional safety edge
for the electrical part-width section valves.
This simplifies operation and enables nest-
ing treatment.
Switch setting (1)
Top:
Spraying on
Bottom:
Spraying off
 Part-width section switch (1) for up to 13
part width sections.
 Control lamps (2) of the active part-width
sections light up when switching to the
"Spraying on" position.
 Main switch (3)
1
2
4
a
3
6
7
5
3
1
2
