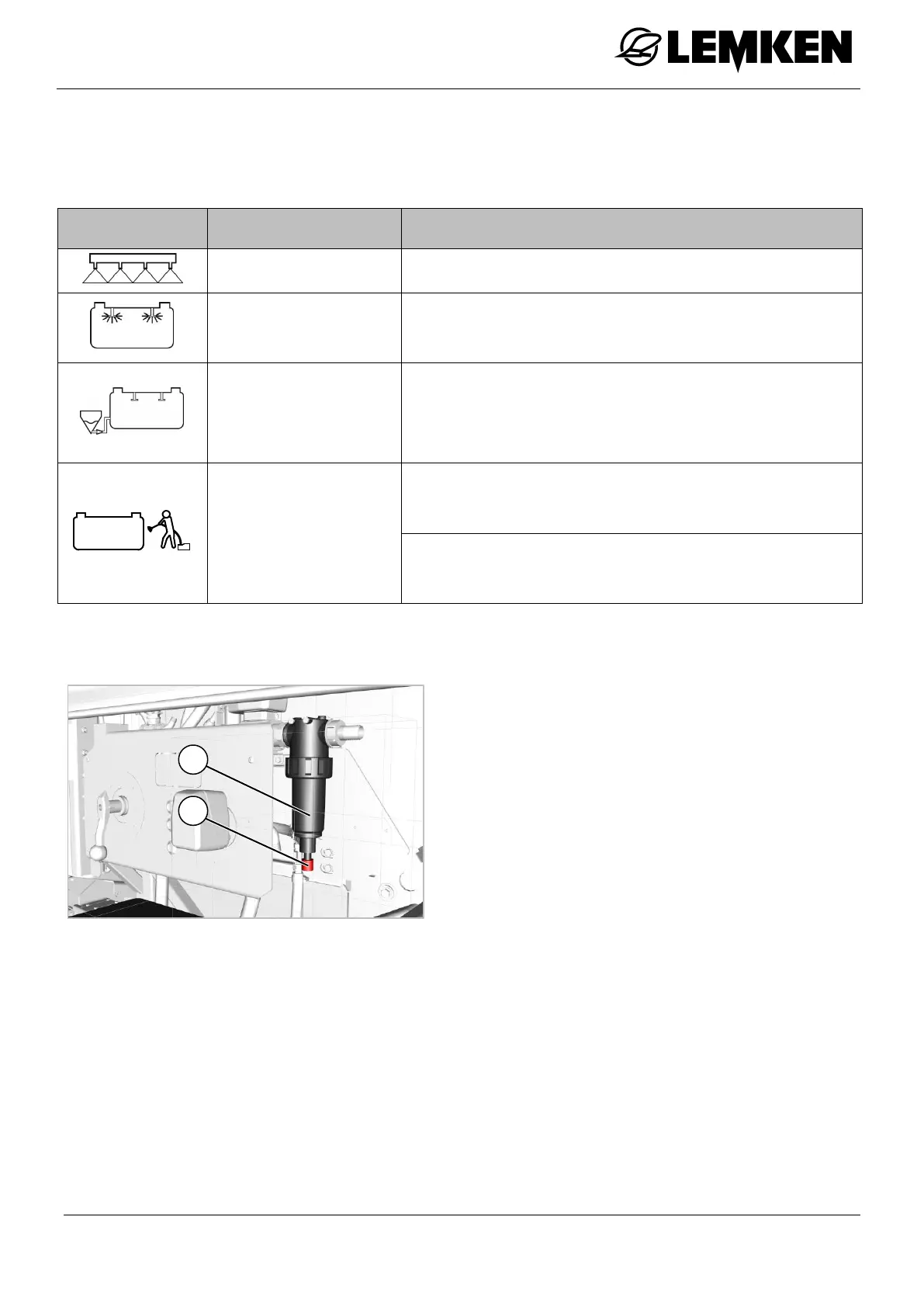

5.11.5 Distributing valve
Pictogram
Function
Description
Spraying
The fluid is conveyed to the boom.
Internal cleaning
The fluid is conveyed to the cleaning nozzles
in the main tank.
Washing-in
The fluid is conveyed to the injector of the
chemical inductor and to the chemical induc-
tor.
External cleaning/
Draining (1)
Clean water is pumped out of the clean water
tank to the external cleaning station.
Spraying fluid can be pumped from the main
tank to a different external tank.
5.11.6 Flush valve
The flush valve (1) is used to seamlessly
adjust the pressure filter (2) purging. When
the flush valve is open, dirt particles are
collected by the pressure filter and re-
turned to the main tank.
5.11.7 Chemical inductor
Spraying agents can be poured into the
main tank via the induction gate. The in-
duction gate comprises the following com-
ponents:
