LEMKEN Primus-12 - Description of the Spraying Pricess with 4500 L

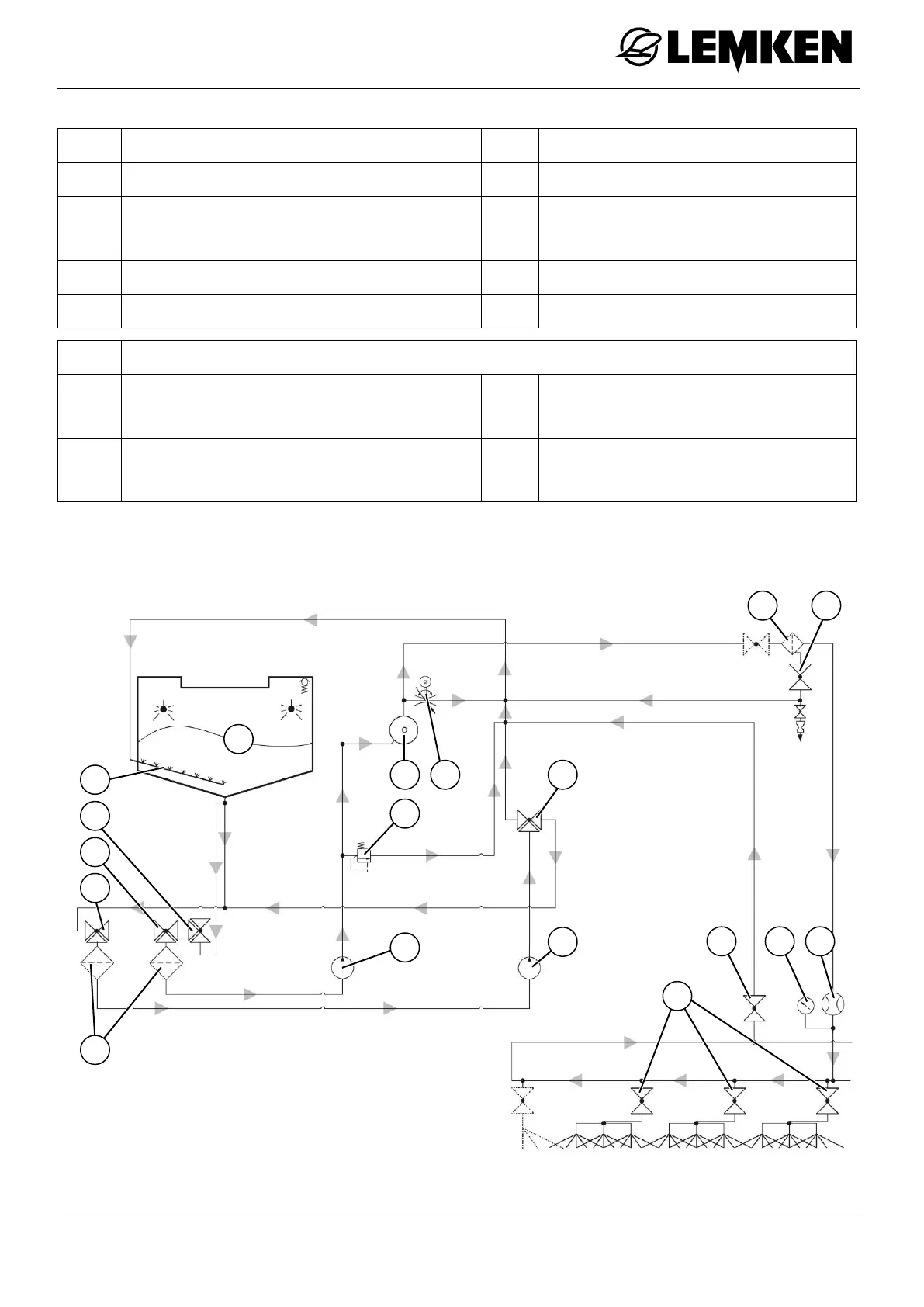

Layout and description
55
A
Selection valve, spray pump
F
Flush valve
B
Selection valve agitator pump
G
Drain valve pressure filter
C
Switchover valve spraying agent /
clean water
H
Spraying pump
D
Distributing valve
I
Agitator pump
E
Agitator control
J
Suction valve
101
Option electrical switching of spraying agent / clean water
102
Option for internal cleaning of elec-
trical main container
103
Electrical main switch option
104
Electrical filling stop option
105
Electrical agitator shutdown
option
5.5.4 Description of the spraying pricess with 4500 l
D
17
B
H
3
A
F
4
5
23
21
2
E
I
9
C
20
7
