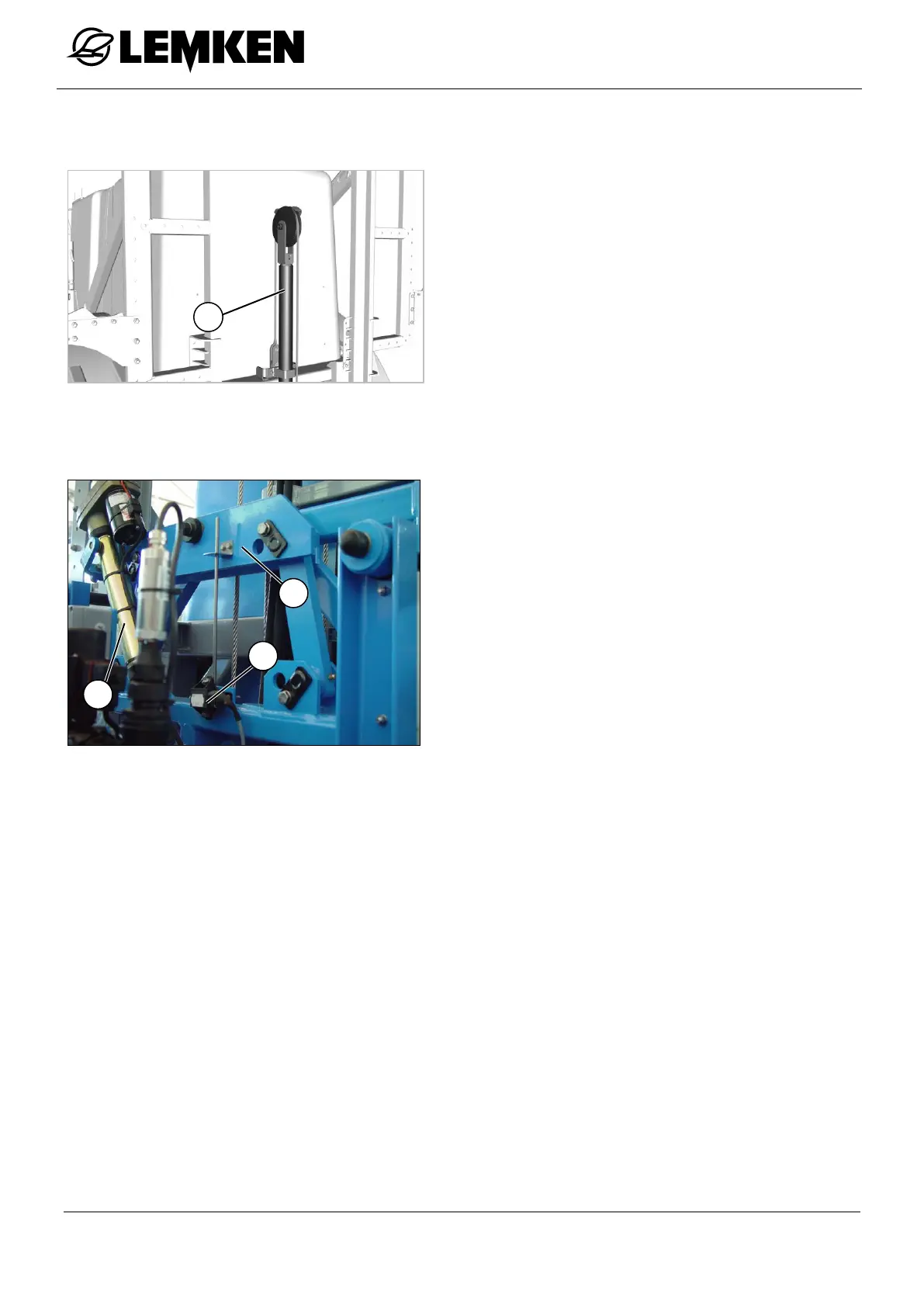

5.22 Height adjustment
The height of the sprayer boom is adjusted
via a hydraulic cylinder (1) on the lift mast.
Vertical oscillations on the sprayer boom
are absorbed by a damper.
5.23 Pendulum suspension and slope compensation
The sprayer boom is aligned horizontally
with the pendulum suspension (1).
On uneven terrain, the centre of gravity of
the sprayer boom can be changed using
electric or electro-hydraulic (2) slope com-
pensation. Altering the centre of gravity
makes it possible to position the sprayer
boom parallel to the ground on the slope.
The slope compensation is adjusted with
the operation terminal. An angle sensor (3)
detects the angle between the centre piece
and the pendulum suspension.
