Safety measures and precautions

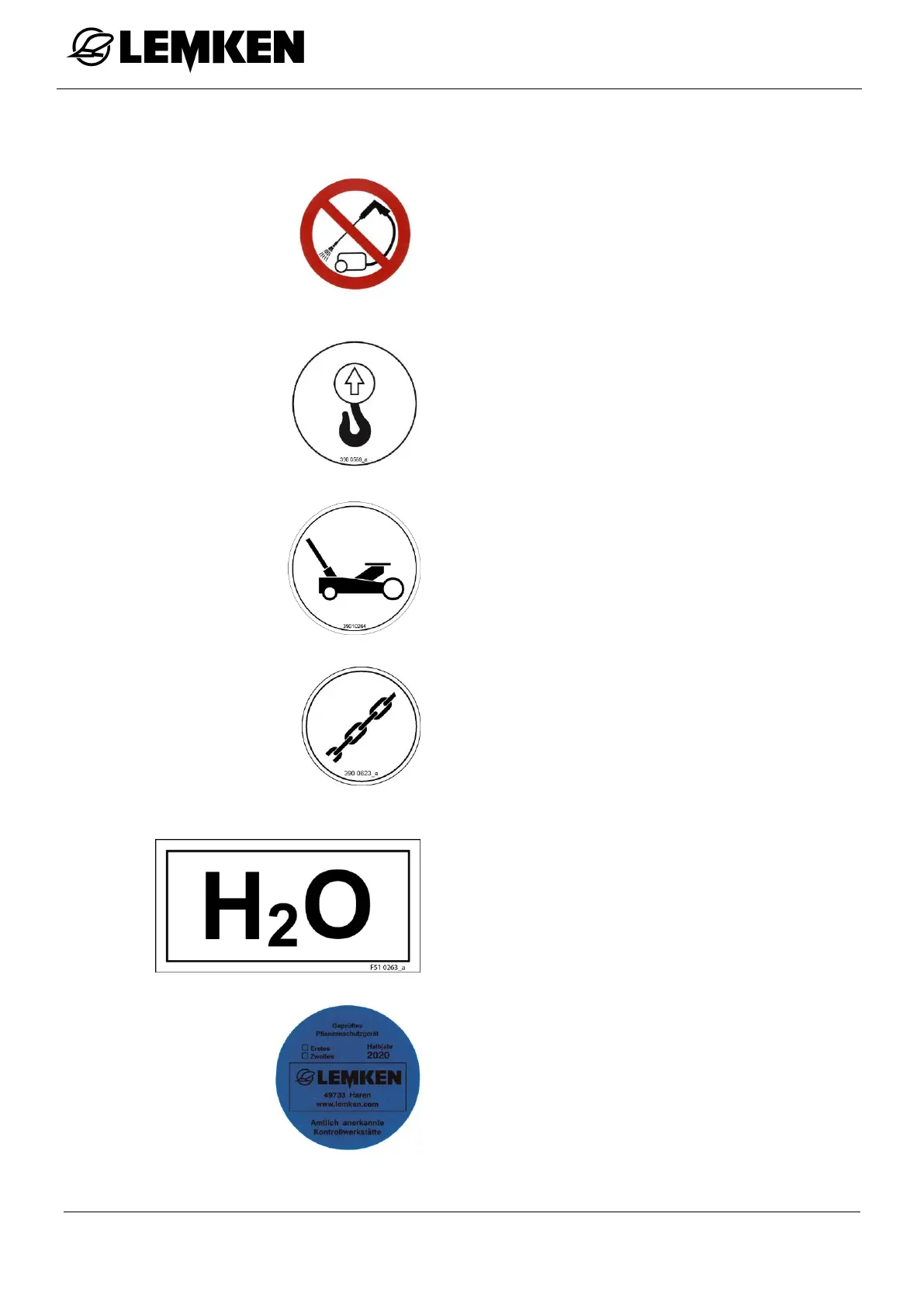

3.3.4 Meaning of other symbols.

Do not use a high-pressure cleaner for

cleaning.

Sling points

Positioning points for jack

Lashing points

Fill in clear water only.

Test certificate
