Safety measures and precautions
25
Operating the parking brake
(hydraulic braking system)

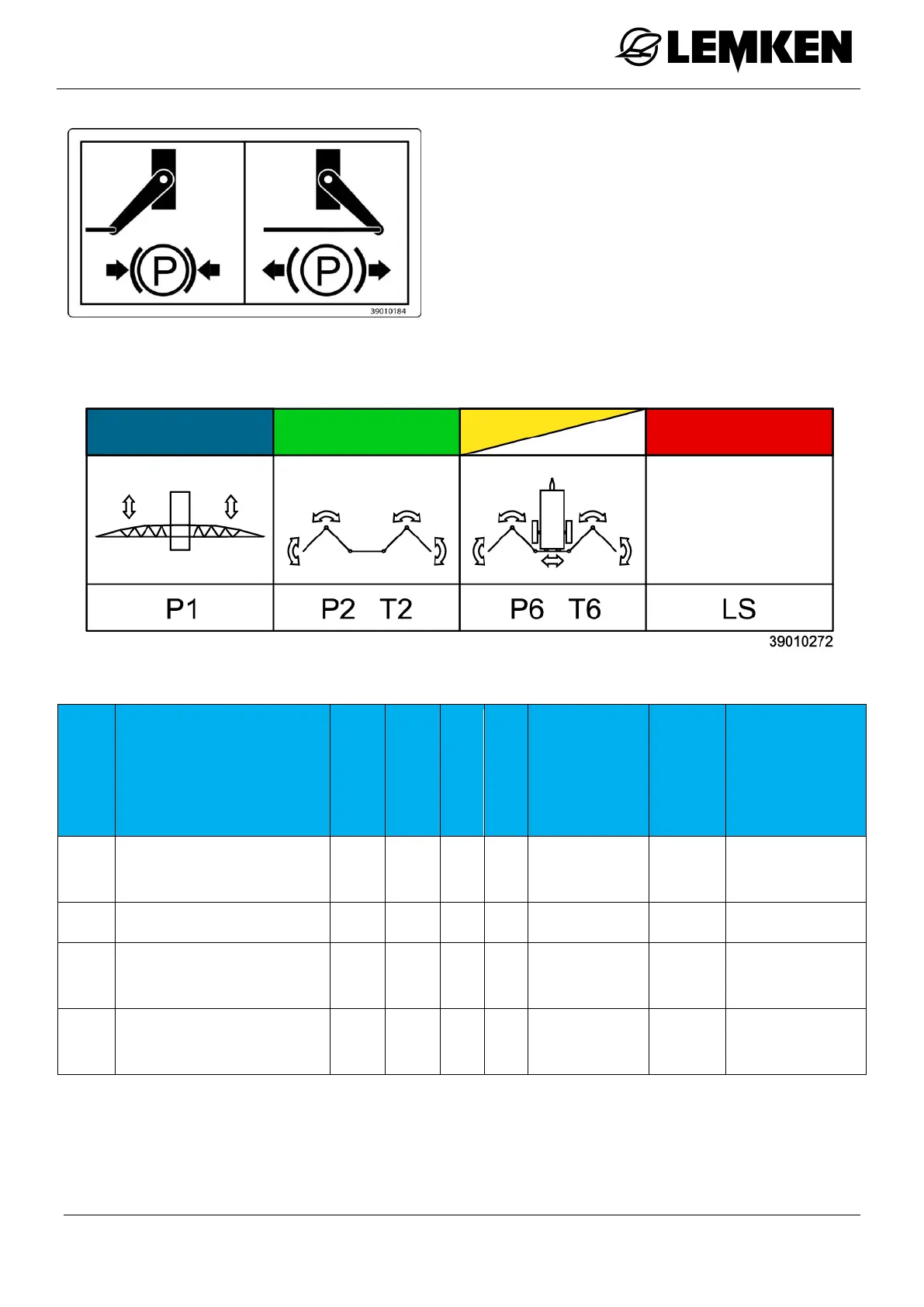

Connection overview of hydraulic hoses
Meaning of the codes and equipment
Equipmen
t *
Consumer
EW
DW
DR
LS
Connector
colour
Code
Required
quantity of oil
[l/min]
A
Sprayer boom height
adjustment
x
Blue
P1
18
B
Boom flaps
x
Green
P2/T2
10
C
Electro-hydraulic opera-
tion
x
x
Yellow/
White
P6/T6
24
D
Electro-hydraulic opera-
tion
x
red
LS
* The following equipment is possible: A+B, C or C+D
EW single-acting control unit
DW double-acting control unit
DR pressureless return line
LS load-sensing signal cable
