LEMKEN Primus-12 - Selector Valves

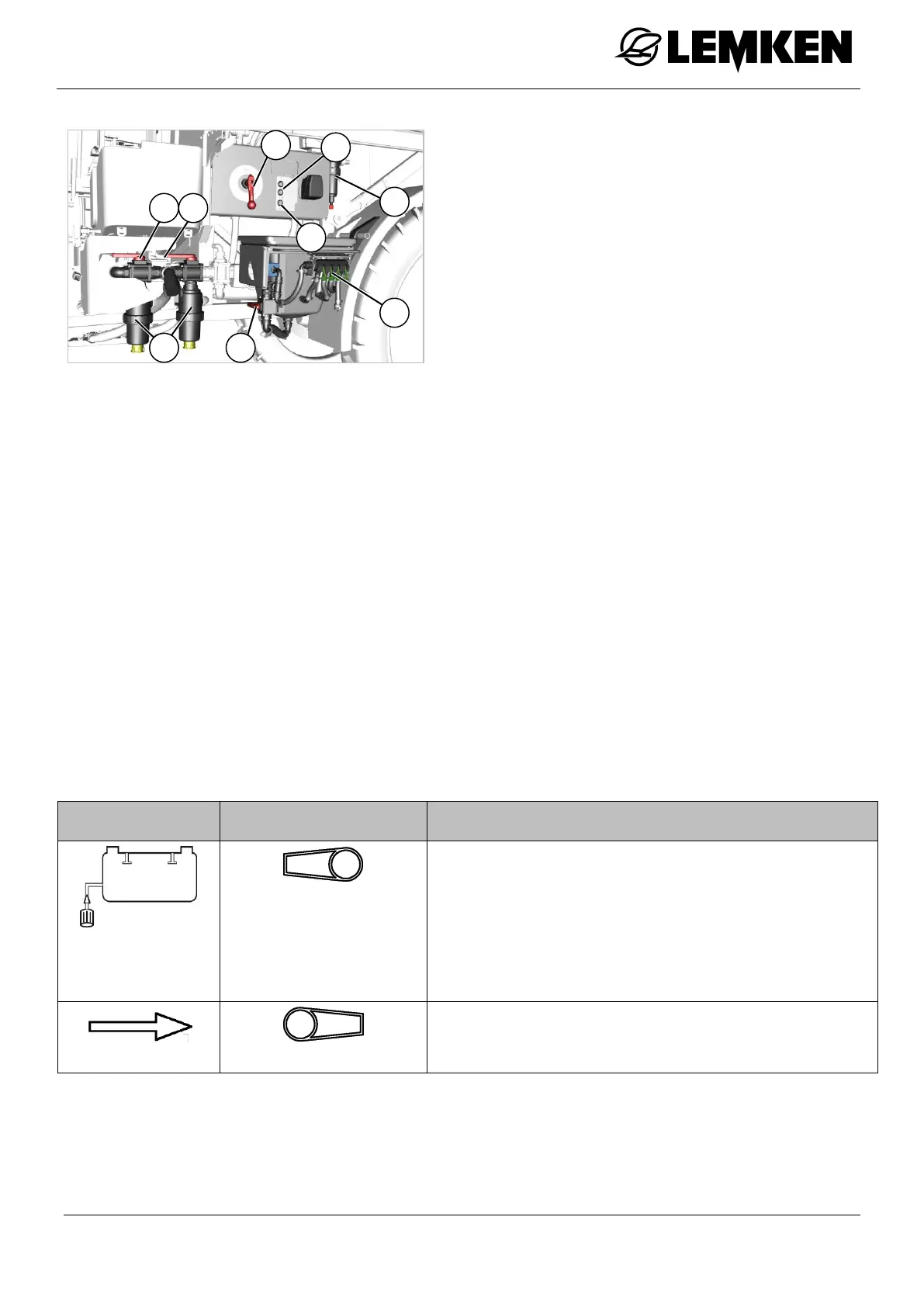

Layout and description
63
A
Selection valve spray pump
B
Selection valve agitator
pump
D
Distributing valve
E
Agitator control
J
Suction valve
K
Fill stop
101
Switching valve for spraying
fluid/clean water
3
Pressure filter
9
Suction filter
27
Induction hopper fitting
Display TANK control indica-
tor (not shown)
5.11.3 Selector valves
Selection valve spray pump
Pictogram
Switch position
Description
 Selector valve (A) is opened for the exter-
nal connection.
 The main tank is filled externally using a
pump and a suction hose.
 Selector valve (A) is switched to the swit-
chover valve (C).
A
D
B
3
J
27
3
101
K
