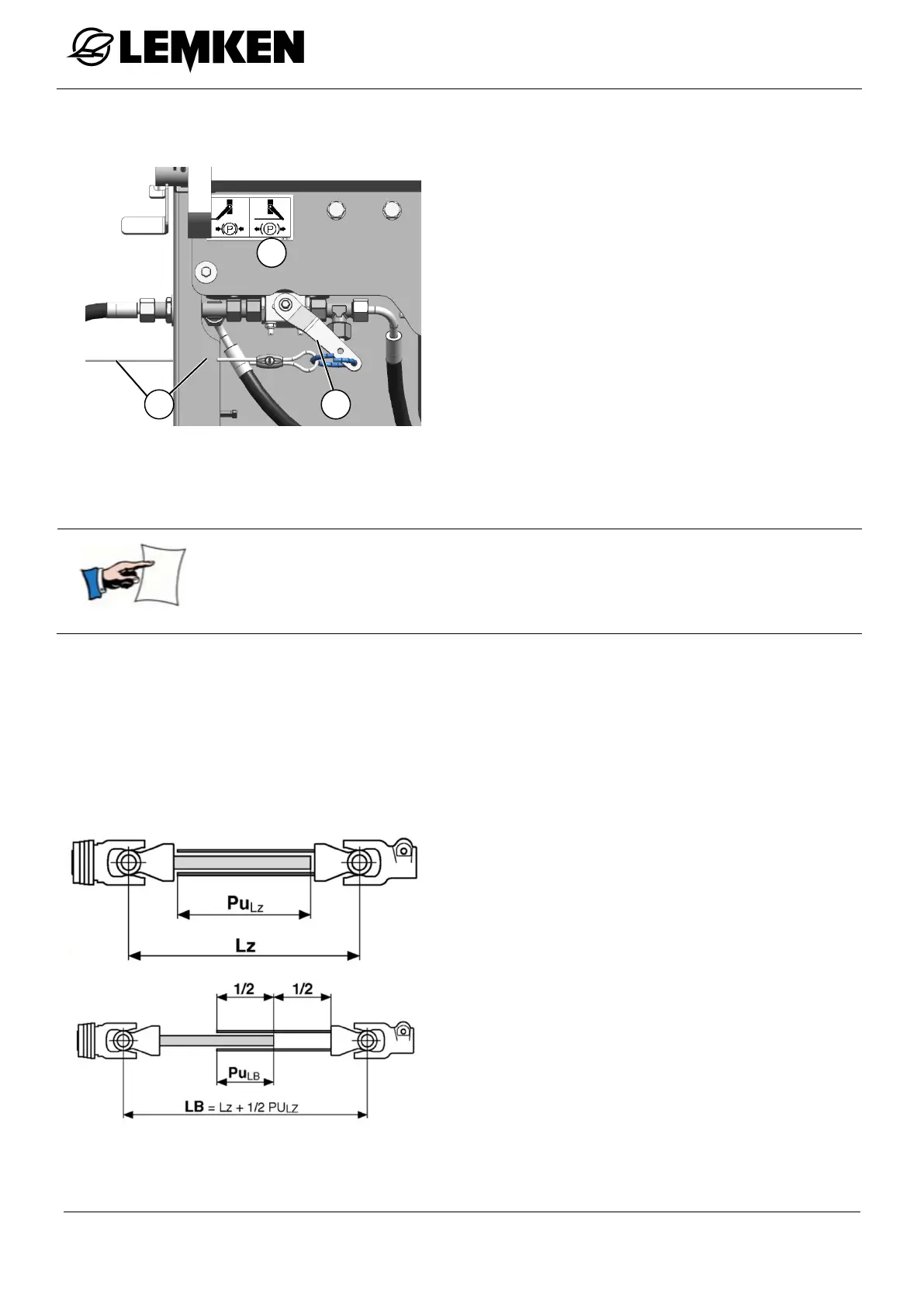

6.4.5 Implement with hydraulic braking system
Release parking brake (3):
 Close the brake valve (1).
 Actuate the tractor brake pedal. (The
spring mechanism on the brake cylinder
is pretensioned and the parking brake is
released)
 Attach break away cable (2) to the trac-
tor.
6.4.6 Checking and attaching the cardan shaft
The following information is exemplary and cannot be applied to
every cardan shaft.
Observe the operating instructions of the cardan shaft!
Precondition: Device is coupled to the
tractor.
 Check whether the length of the cardan
shaft is suitable.
 The PTO shaft must not be compres-
sed when pushed in (Pu
Lz
).
 Shorten the PTO shaft if necessary.
See below.
 Largest possible profile coverage
(Pu
Lb
) of the PTO shaft
 Where applicable, use a longer
PTO shaft
 Add the PTO shaft operating instructions
to the operating manual of the device.
2
1
3
