5.10 Pump(s)

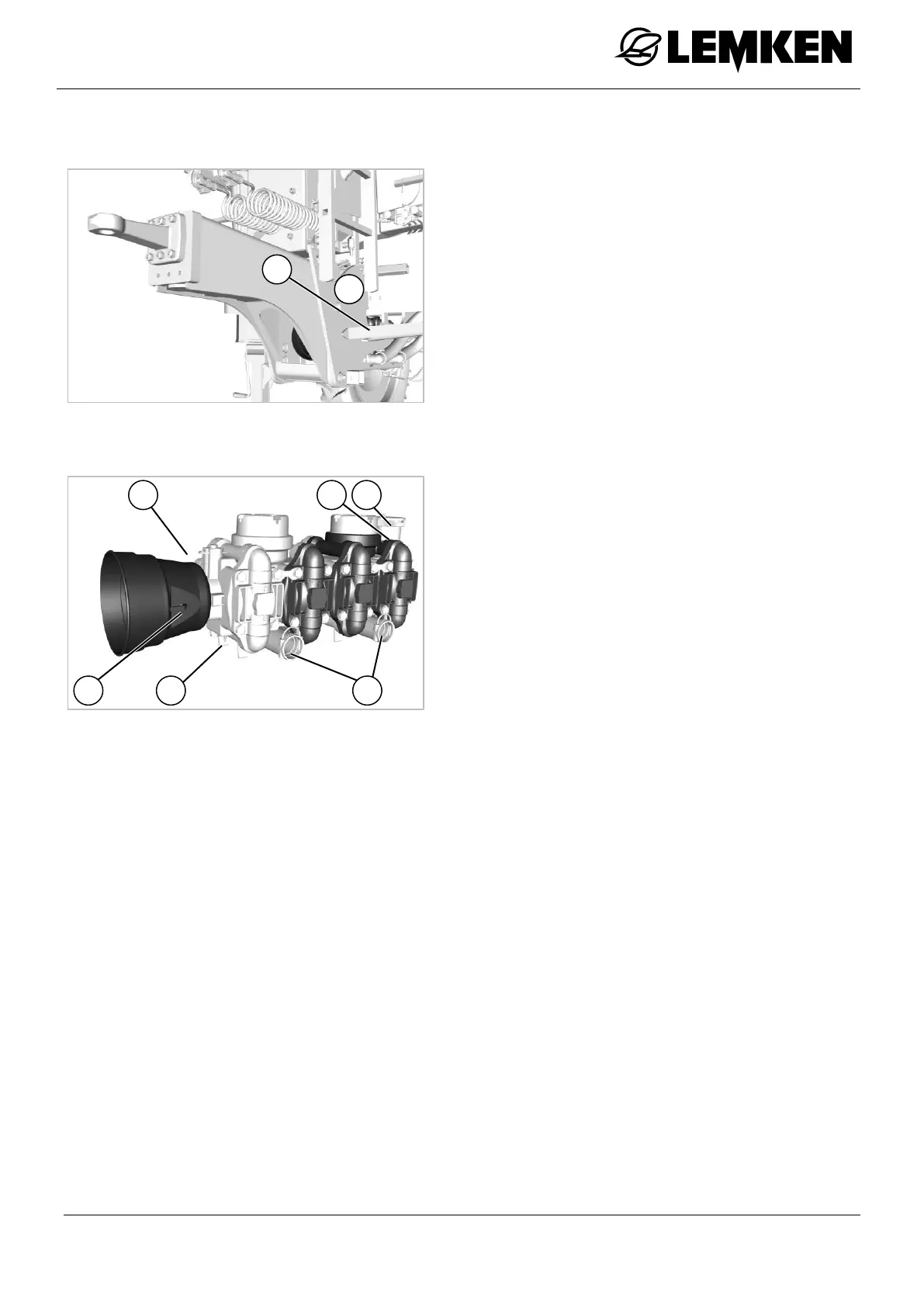

The unit is equipped with one or two
pumps (1) depending on the configuration.
The pumps are designed for conveying
spraying fluids.
The pumps are driven mechanically via a
PTO shaft.
Depending on the equipment, the oil level
indicator (6) of the pump is located below
the ladder.
2
Drive
3
Intake connection
4
Pressure connection
5
Oil filling opening
6
Oil level indicator directly on the pump
7
Drain screw
5.11 Control and connection centre
The following positional designations cor-
respond to the position markings of the
fluid lines, see "Liquid flow, page 51".
1
3
2
7
6
5
4
6
