The braking system of the implement is adapted to the delivery
condition of the implement. Modifications to the implement outside
the listed areas are not permitted.
For wheel conversion, ensure that the tyres are running in the cor-
rect direction.
Wheel conversion is based on an average rim thickness of 15 mm
Telescoping capability of the
adjusting axle (50 mm - incre-
ments):
a = 0 mm … g = 300 mm

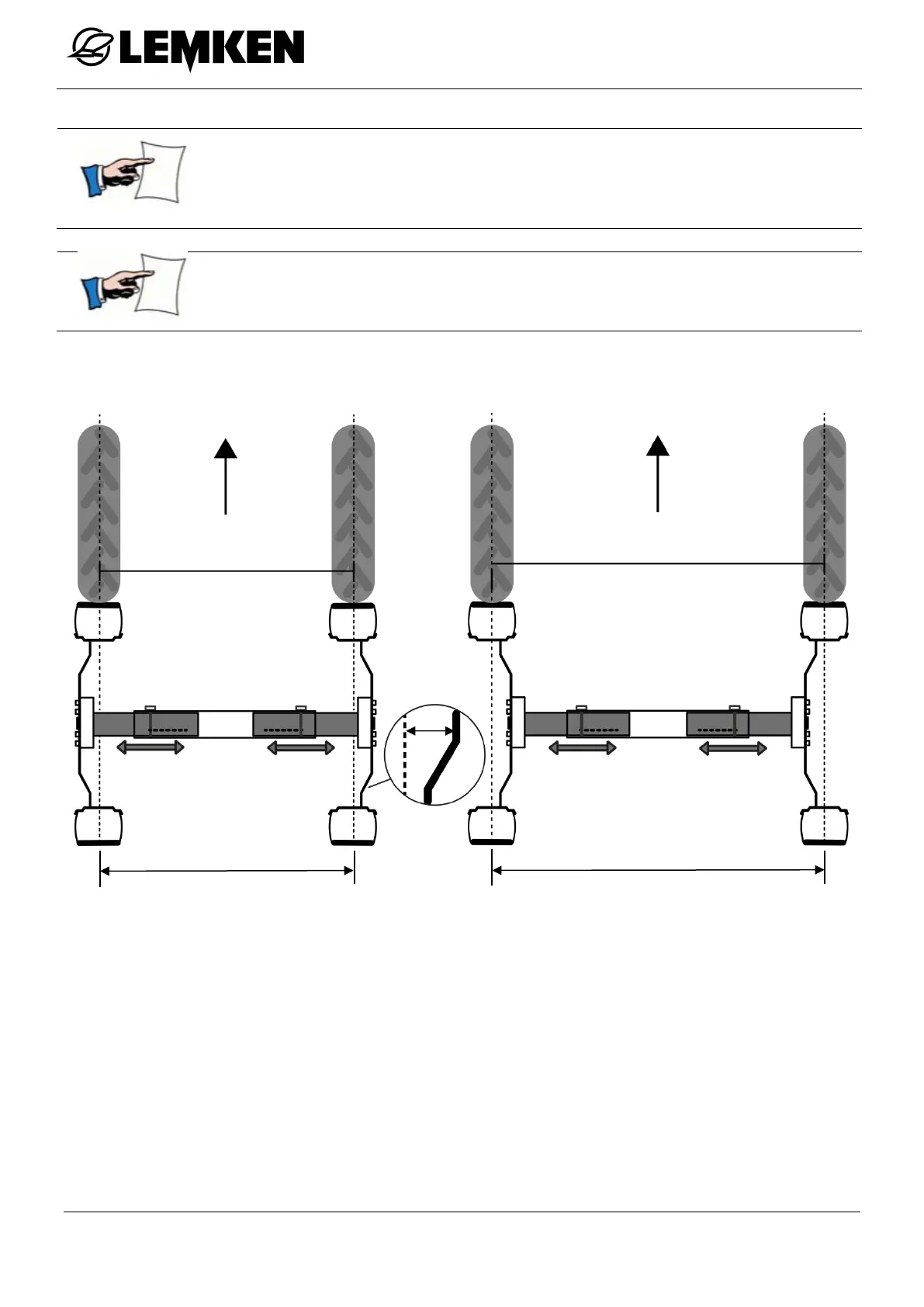

Centre of the rim / Centre of the track
Track width =
Distance between M left and M right
Offset of the rim =
Distance between the mating flan-
ge surface and M
Track width with wheel conversion
