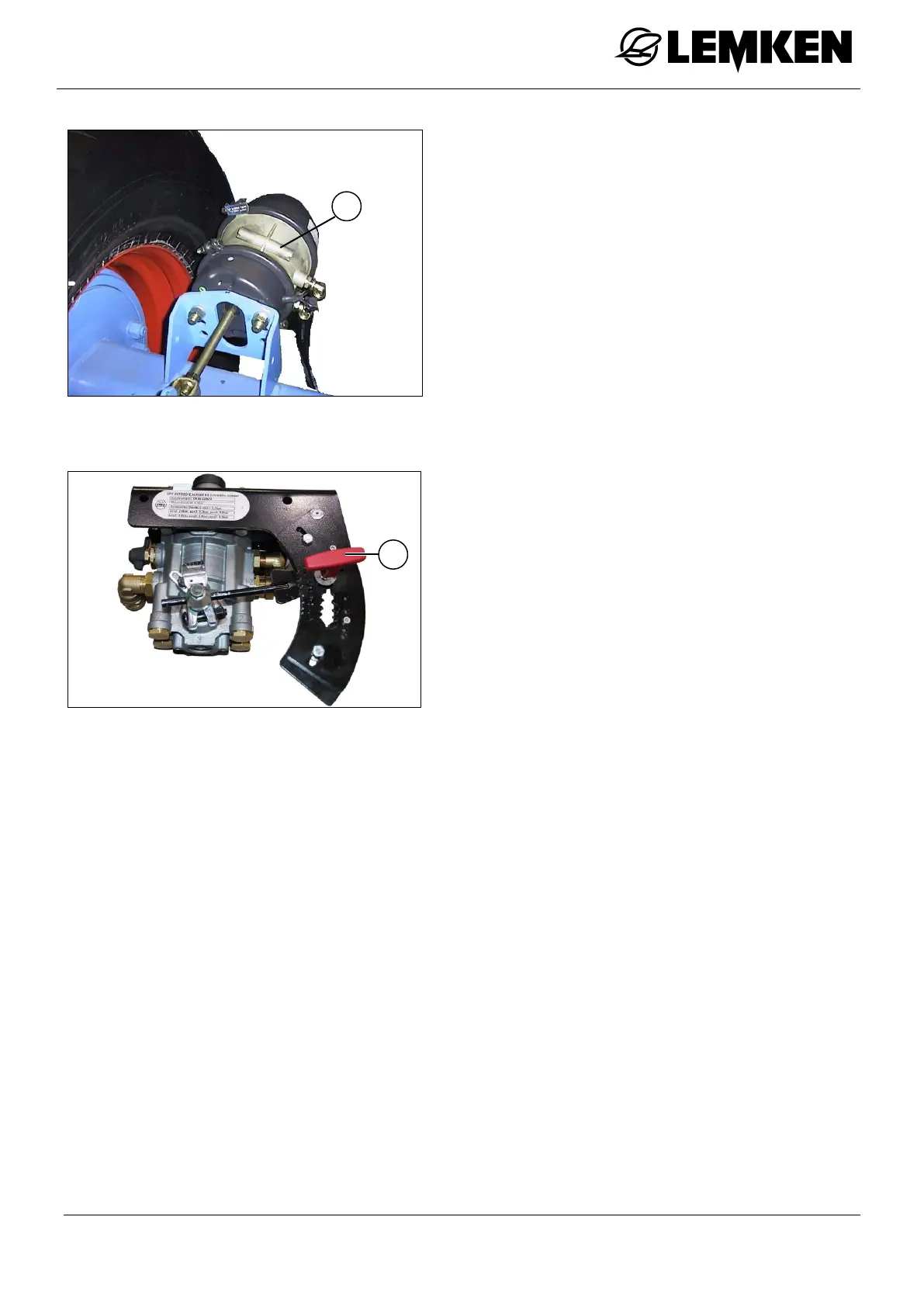

Insert the guiding screw (1) into the hol-
der (5) on the brake cylinder (3).
Secure the guiding screw (1) using a
peg and nut.
The brake force regulator has seven ad-
justment positions.
The positions not approved for this imple-
ment are mechanically locked and must
not be used.
Adjust the braking force with the lever
(1) of the brake force regulator.
o The adjustment depends on
the actual axle load.
Adjustment values can be found in the
following table:
