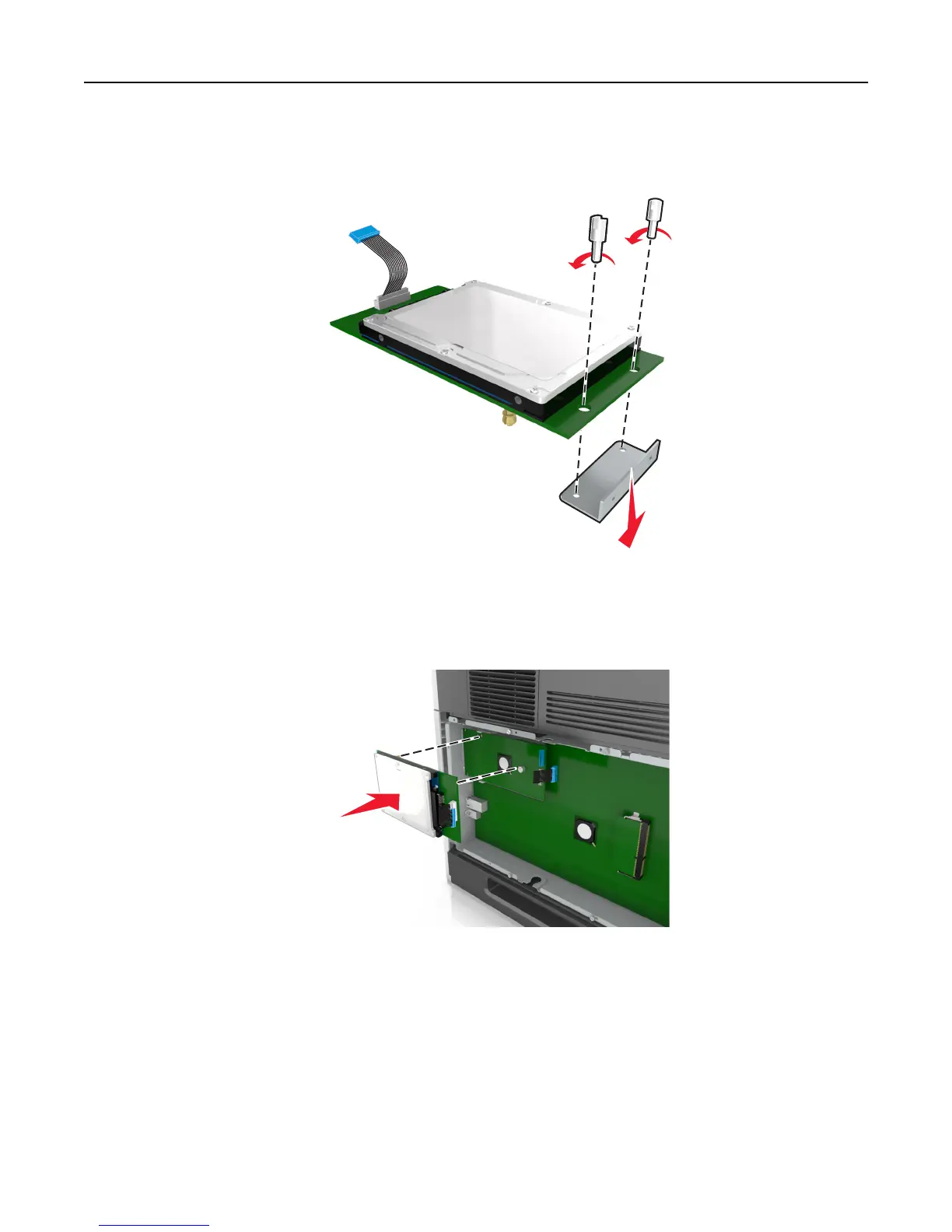

To install a printer hard disk onto the ISP:
a Remove the screws attached to the printer hard disk mounting bracket, and then remove the bracket.
b Align the standoffs of the printer hard disk to the holes in the ISP, and then press the printer hard disk down
until the standoffs are in place.
Installation warning: Hold only the edges of the printed circuit board assembly. Do not touch or press on
the center of the printer hard disk. Doing so may cause damage.
c Insert the plug of the printer hard disk interface cable into the receptacle of the ISP.
Note: The plugs and receptacles are color‑coded.
Additional printer setup 27
