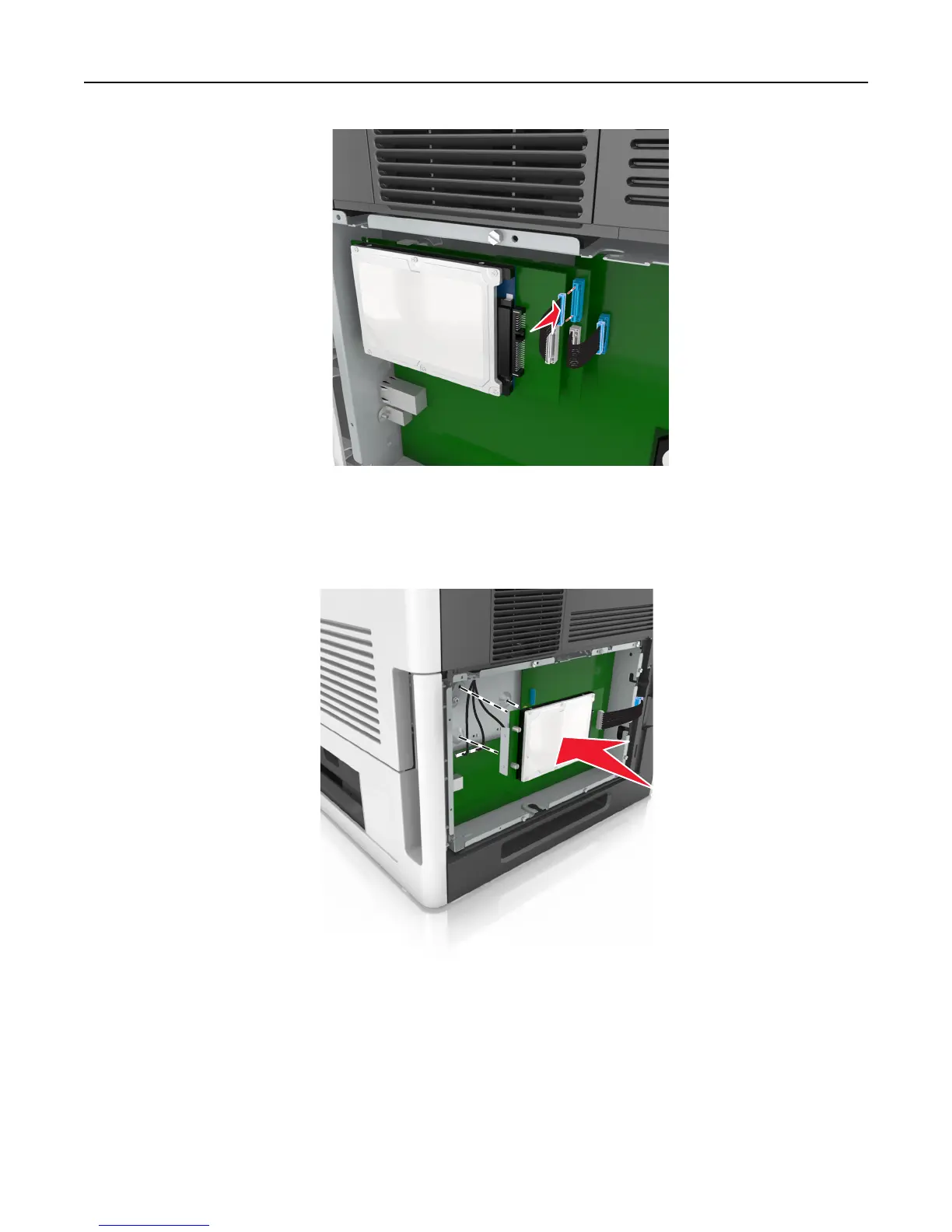

4 Align the standoffs of the printer hard disk to the holes in the controller board cage, and then press the printer hard
disk down until the standoffs are in place.
Installation warning: Hold only the edges of the printed circuit board assembly. Do not touch or press on the
center of the printer hard disk. Doing so may cause damage.
Note: Make sure the cables are neatly tucked under the printer hard disk.
5 Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.
Note: The plugs and receptacles are color‑coded.
Additional printer setup 28
