LumaSense LumaSMART User Manual

LumaSMART
®
User Manual IEC 61850 Protocol Testing • 102
Note: The values for the IP addresses will have to be adjusted to match those within the specific test
environment.

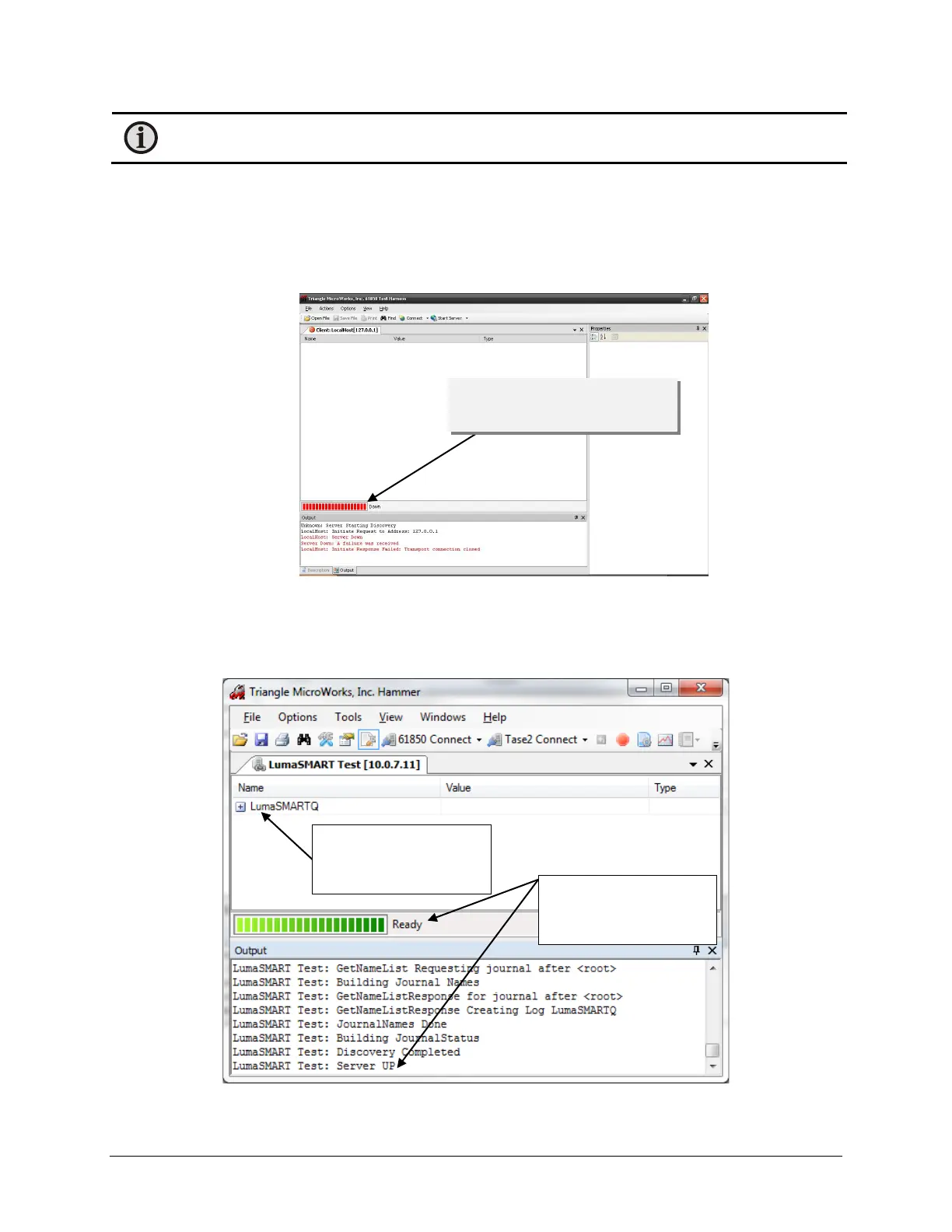

7.3 Connecting the LumaSMART and TMW Hammer
If the Status bar is a Red Color, then it indicates that the tool is not able to communicate with the LumaSMART
device. If this is the case, you will need to reconfigure the settings to make sure that LumaSMART and TMW
Hammer are configured to communicate, that you have the proper electrical connections, and the
configuration/integrity of LAN network correct.
Unsuccessful 61850 Connection
If the Status bar is a Green Color, this indicates that the tool has successfully connected to the LumaSMART device.
Once a successful connection is made, the icd file will be downloaded in the Harness Tool’s user interface and will
show the primary node as LumaSMARTQ.
Successful 61850 Connection
Red Color status bar indicates
error in connection
Indication that the
connection is operating
ICD files primary Header
- LumaSMARTQ
