LumaSMART
®
User Manual DNP3 Protocol Testing • 117
8 DNP3 Protocol Testing
The chapter consists of steps to test the DNP3 protocol using the Triangle MicroWorks Communication Protocol
Test Harness, Version 3.13.0004, Built on Wed Apr 25 09:30:11 2012. This section assumes you have a working
knowledge of both Test Harness and the DNP3 protocol.
A licensed version was used to for this test procedure. A trial version can be downloaded for free on the Triangle
MicroWorks, Inc. website at www.TriangleMicroWorks.com
.
The LumaSMART
®
configuration for these tests is:
00-15229-216 LumaSMART, 16 Channels, 16 relay, 4...20 mA analog output
If your LumaSMART is of a different configuration, then the test configuration will have to be modified to limit the
register access to the bounds of the LumaSMART you are using. (Number of Temperature channels, relays, etc…)
Please refer to the Protocol Test Harness program instructions manual. See Section 8.8 for the
DNP3 Register
Maps.
When a configuration or operational change is made through this protocol, it will also be visible on the
LumaSMART display panel. However, the display screens provide information gathered when the screen is opened
and do not update automatically. Therefore, to ensure the changes are accurately reflected, leave the associated
screen, make the DNP3 change, then reenter the screen to see the updated value.

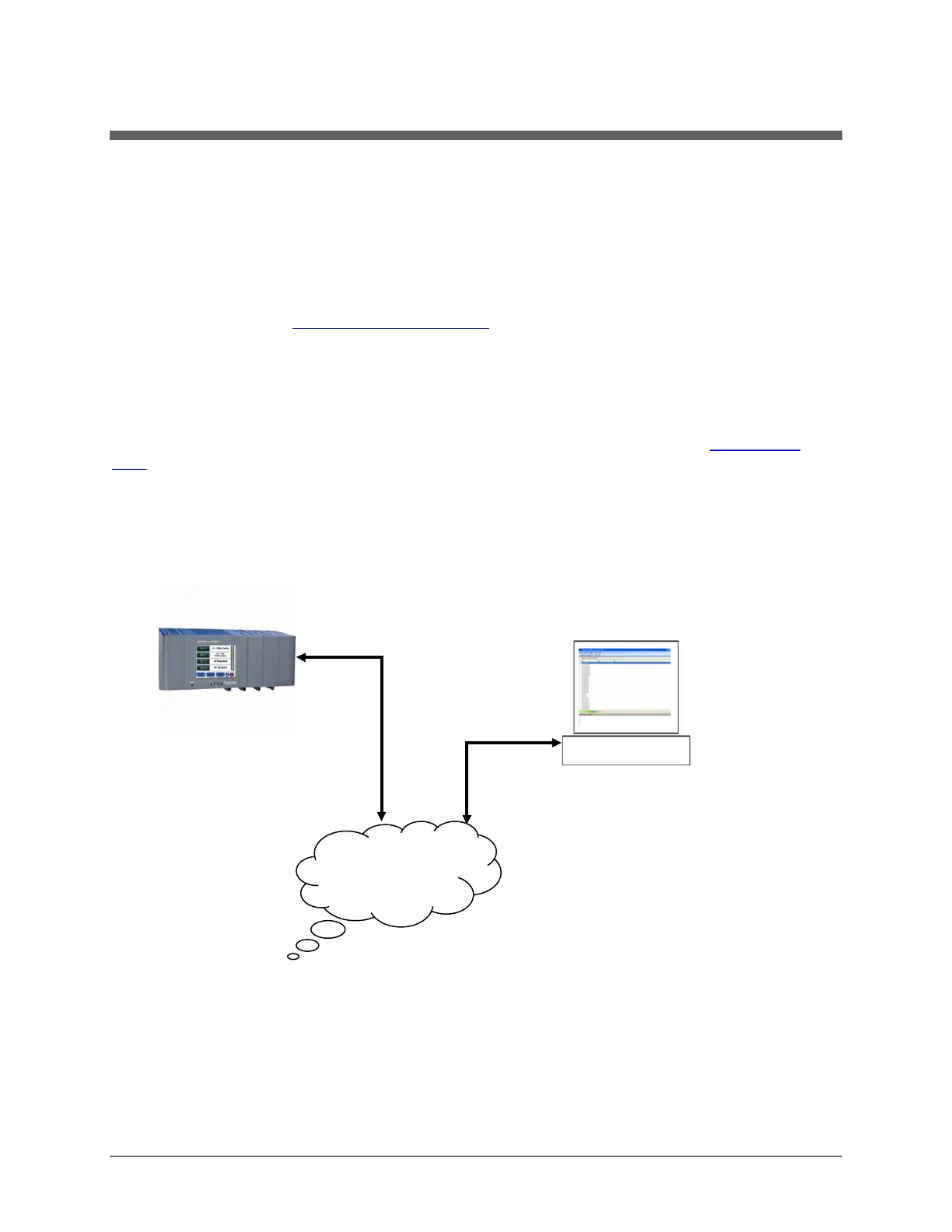

The following diagram represents the test system setup:
running on the PC
LAN Network
