User Manual Installation of Probes and Accessories • 34
3.4 Installing the Probes
Caution: Only LumaSense Quality and DipTip Rugged Fluoroptic Probes should be used with the
LumaSMART system. DO NOT attempt to attach other types of probes to the system.

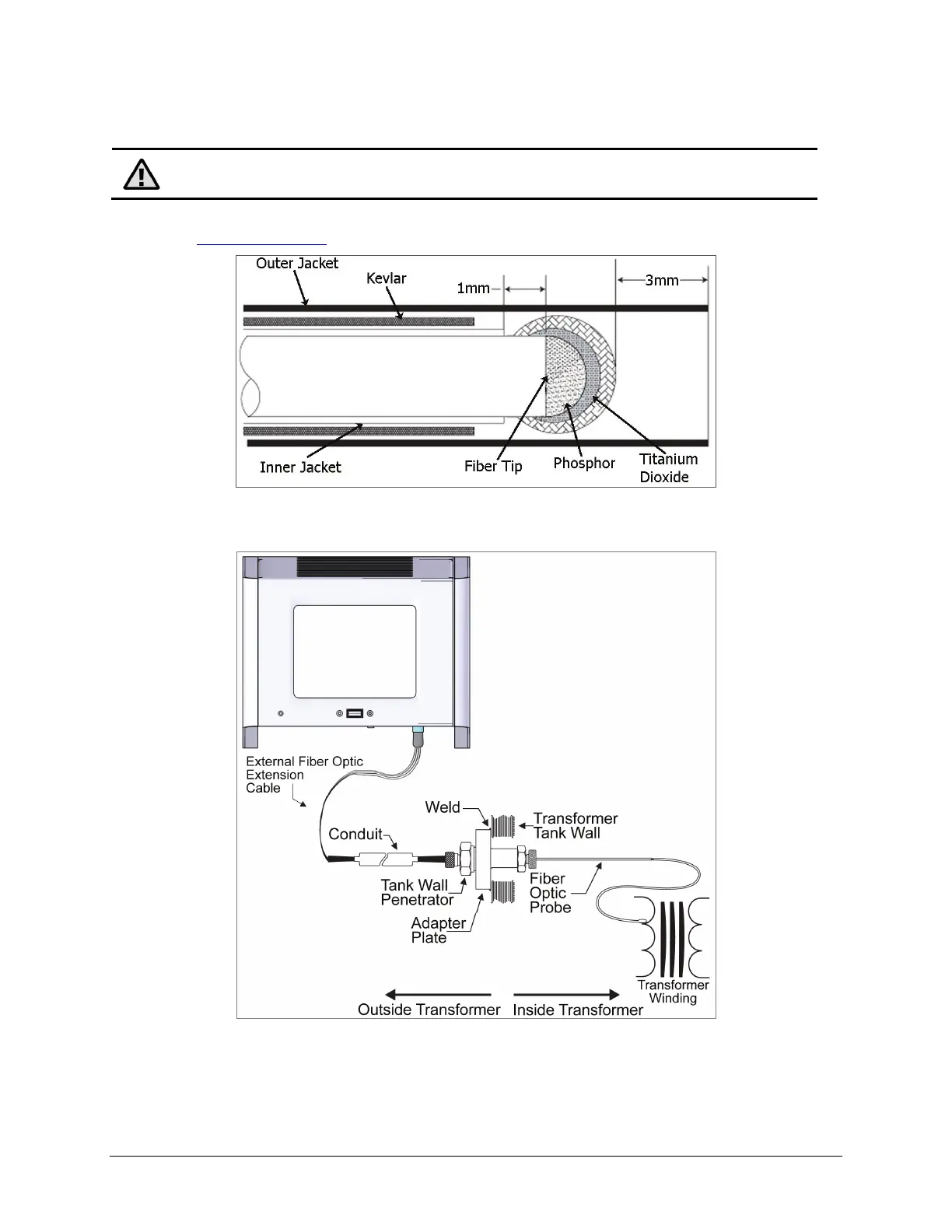

The figure below illustrates the sensor location within the probe tip. For further details, refer to
Section 2.2.1 Temperature Sensor
.
Probe Design
The figure below provides visual instructions for assembling a LumaSMART controller and probe.
LumaSMART Assembly Diagram
To Next Page
