LumaSMART

User Manual Using the Software • 55

Green Signal strength is above 60%.

Yellow

Signal strength is between 10% and 59% and the probe signal strength is marginal. Common reasons

for this marginal signal strength are dirt deposits, an excessive bending radius, or a loose connection.

This marginal signal strength could be caused by a slightly loose connection, dirt between the

connections, or a probe that is bending more than the allowable bending radius.

Red Signal strength is between 0% and 9% and the probe signal has failed. Common reasons for a failed

probe signal are a broken probe, a broken extension cable, loose or no connection with the

controller, or loose or no connection with the tank wall penetrator plate.

5.2 Main Menu

The Main Menu contains buttons leading to all of the main functions and configuration options of the

LumaSMART

controller.

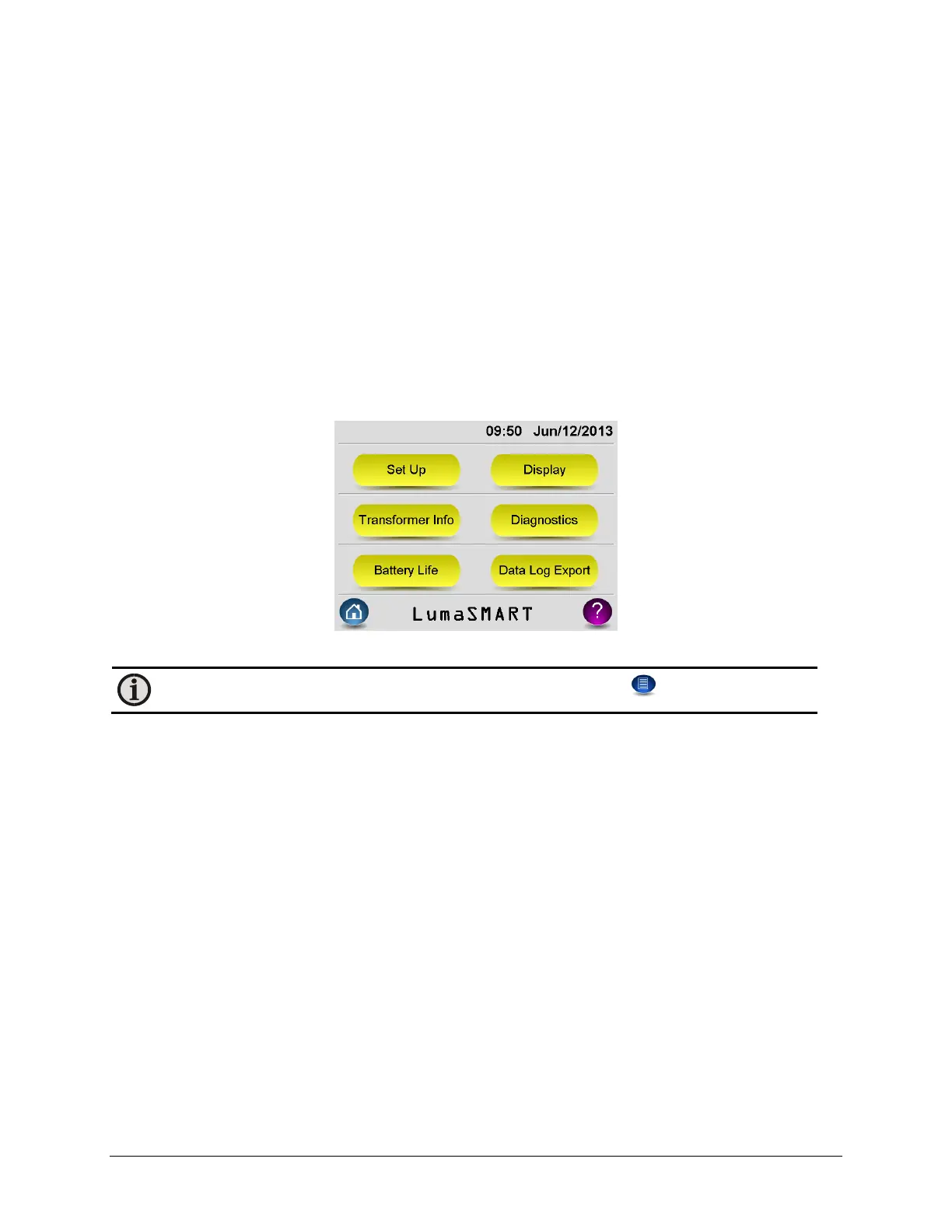

Main Menu

Note: To return to this screen at any time, click the Main Menu button:

• Set Up—Contains menus allowing you to configure Transformer Information, Relay and Control, Date and

Time, Analog Outputs, Administrator Tools and Channel Setup. A password is required to access the Setup

screen.

• Transformer Info—Displays basic information about your transformer.

• Battery Life—Shows an estimate of the time left before the battery should be changed.

• Display—Allows you to set the channel rotation speed, the amount of time before the backlight turns off

and the display’s brightness.

• Diagnostics— Allows you to run Sensor Channel Diagnostics, Configure the Communication Interface and

Protocols, run Relay Testing Simulation, View Files, Erase the Data Logs, provides System Status log file

View and provides a Graph Feature for Data Logs.

• Data Log Export —Allows you to export data that is currently saved in your system.

5.2.1 Setup

The Setup Menu contains menus allowing you to configure Transformer Information, Relay and Control, Date and

Time, Analog Outputs, Administrator Tools, and Channel Setup. An authentication code is required to access the

Setup screen.
