User Manual IEC 61850 Protocol Testing • 106
Control Blocks. Then click on the sign to show a list of previously selected reports.
List of selected reports

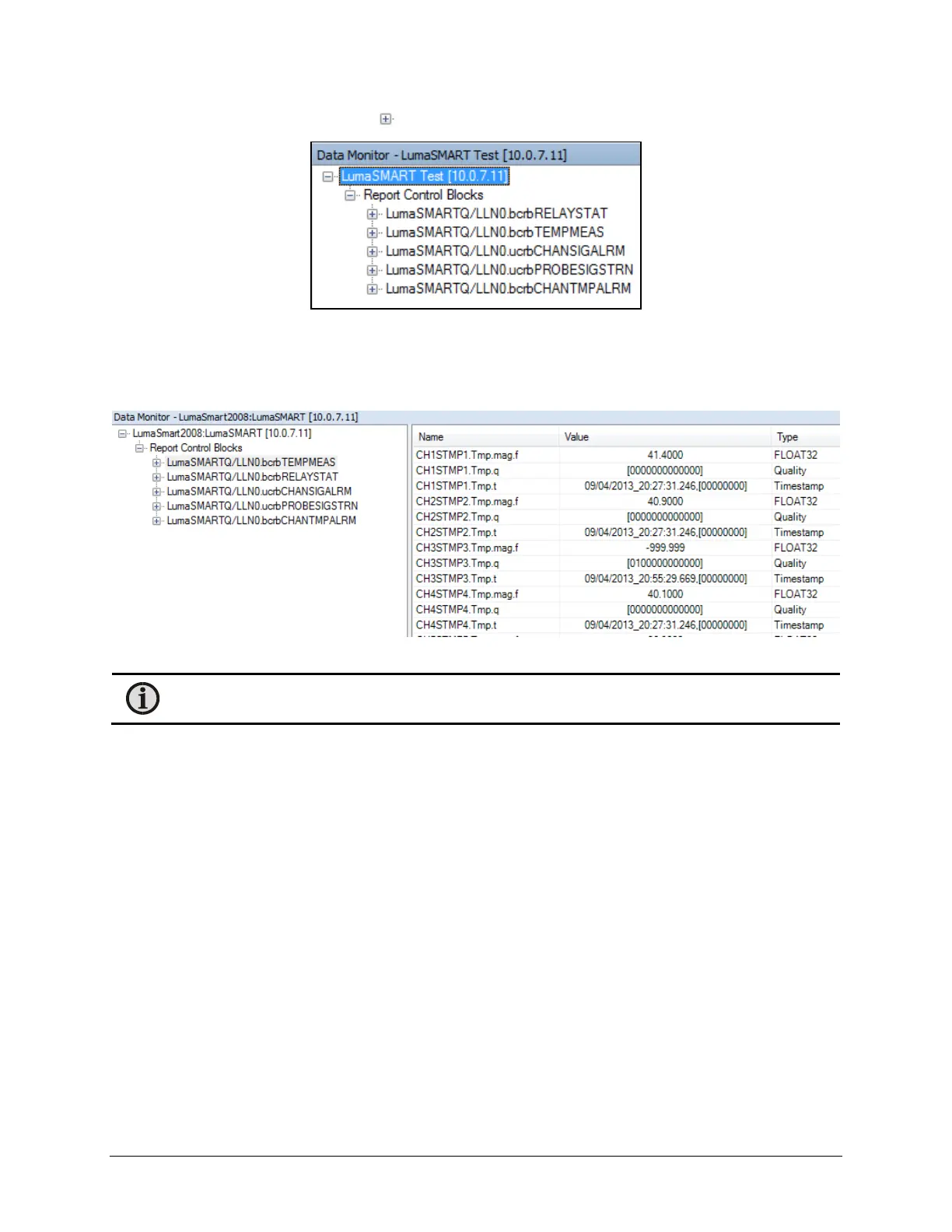

4. Select an individual report by clicking on it. An additional window opens to show the data associated with
the report. Shown below is a report of the temperature measurements of 16 channels, timestamp and
quality.
Selection of a report
Note: When a channel has a probe error or is disabled, the temperature reading will display as -
999.999. In the above example, channel 3 is disabled.
7.6 IEC61580 Channel Temperature Alarm
The 61850 protocol allows you to set a unique temperature alarm for each channel and will notify the IEC61850
client whenever it changes states (Alarm/Restore). It does not affect operation of the LumaSMART and cannot be
configured locally at the LumaSMART touchscreen.
7.6.1 Example for Channel 4 alarm
• Read temperature in LumaSMARTQ > CH5STMP4 > Tmp > mag > f (Presently = 38.4517 °C)
• Set the alarm threshold LumaSMARTQ > CH5STMP4 > TmpAlmSpt > setMag > i to 36 °C
• Read the alarm status in LumaSMARTQ > CH5STMP4 > Alm > stVal (Value = true indicating alarm – see
following figure)
