LumaSense LumaSMART User Manual

LumaSMART
®
User Manual Installation of Probes and Accessories • 36
within the spacer’s cavity, which also indicates the temperature of the adjacent windings. The figure below
illustrates a sample probe tip mount.
Instructions for constructing and installing a radial spacer are provided in the next section.
Probe Tip Installation — Core Form Transformer
Radial Spacer Design
To construct a radial spacer from an EHV Weidmann Nomex
®
transformer board or equivalent, use
2 mm (0.08 in) thick TIV material (shown below).

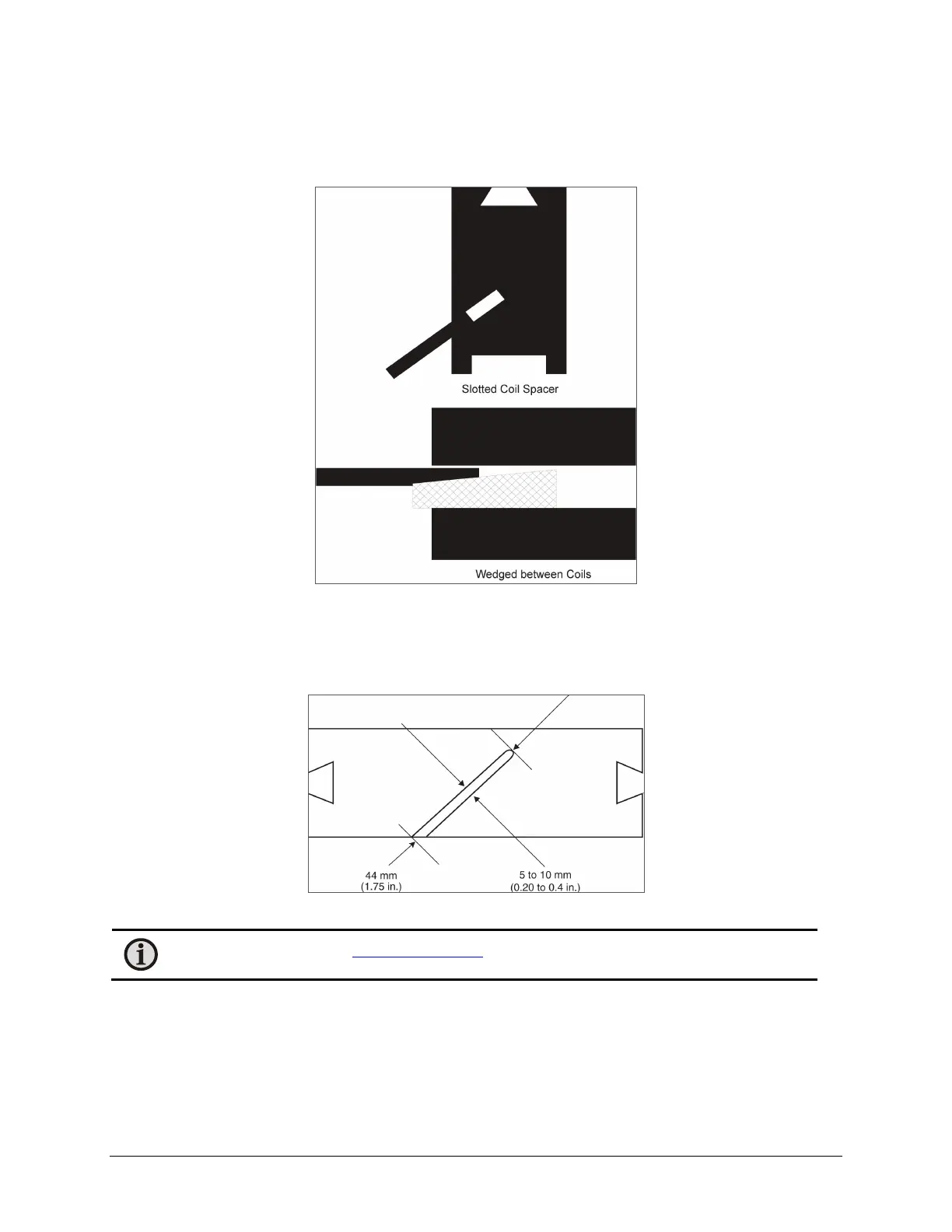

Modified Radial Spacer
Note: Refer to Section 12.1 Third Party Suppliers for a list of suppliers that can provide materials
used for modifying the radial spacer.
