LumaSM
ART
®
User M
anual
Introduction
•
23
FOT Modul
e Connecti
ons
The Lum
aSMART control
ler can be conf
igured w
ith up to three
additional F
OT Modules
, each housing tw
o or four
FOT c
hannels.
LumaSMART C

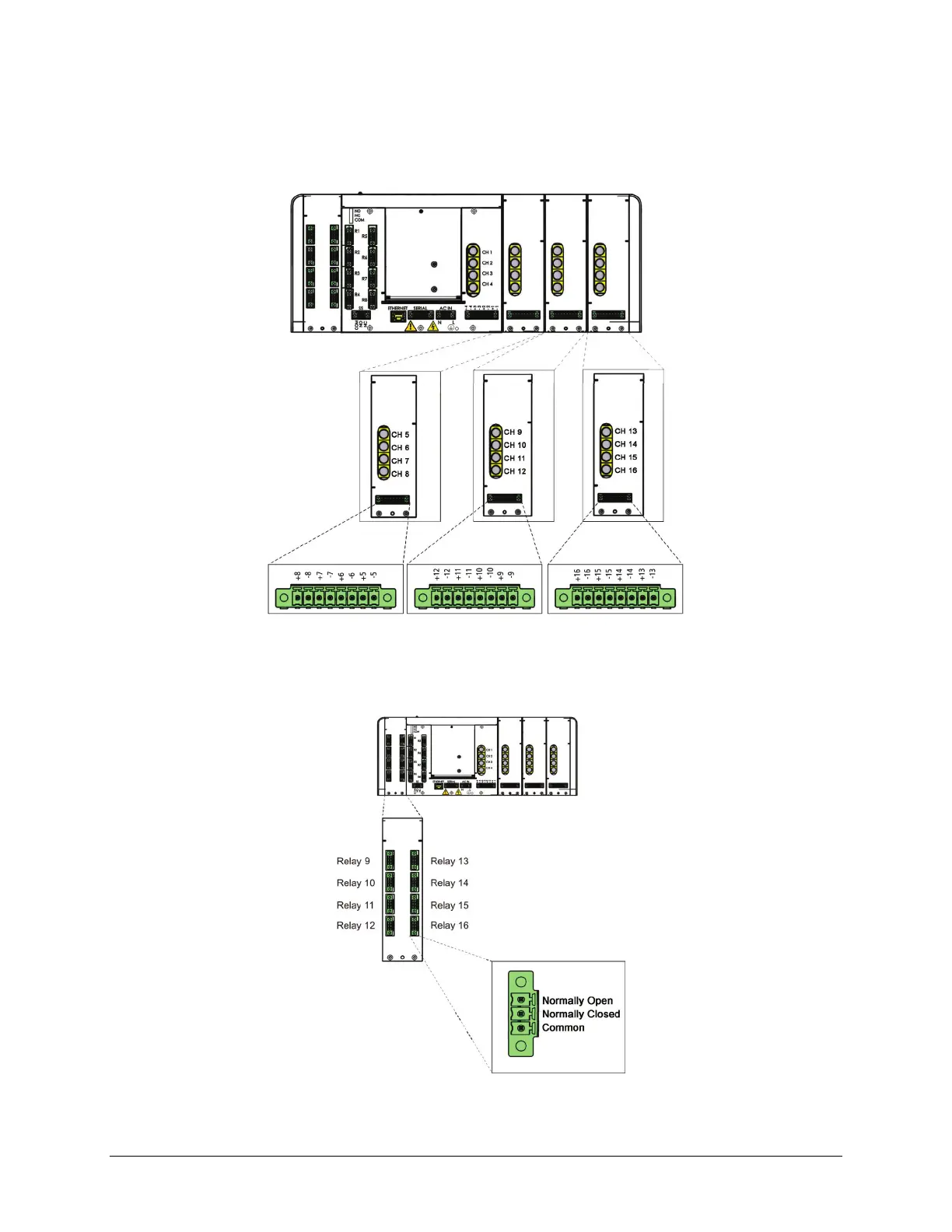

ontroller FOT Module Connections
(Front Facing U
pwards)
Control Mo
dule Con
nections
The Lum
aSMART control
ler can also
be config
ured with a Cont
rol Module w
hich house
s eight
additio
nal relays.
LumaSMART C
ontroller Relay Module C
onnections (Front F
acing Upwards
)
